NKG晶振,S2M48.0000F20M2Z-EXT,2520mm晶振,6G路由器晶振特点：

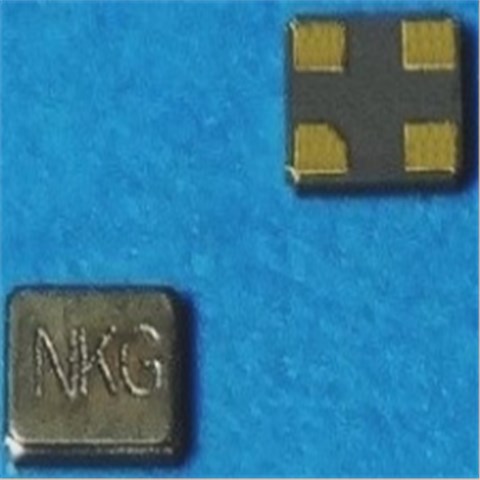

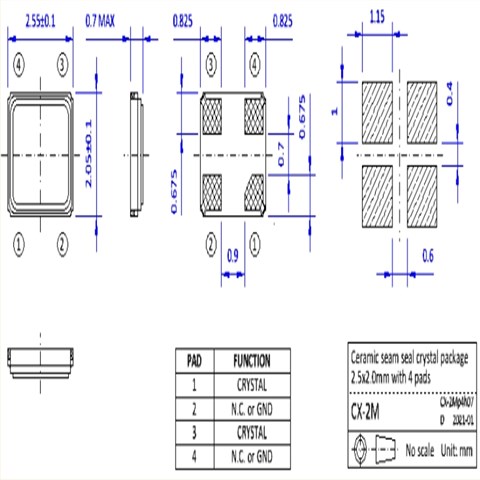

●微型包装尺寸2.5 x 2.0x 0.5mm与4个垫
●优异的耐热性和抗震性
●真空密封，可靠性高，老化率低
●符合AEC-Q200标准的汽车级产品可供选择

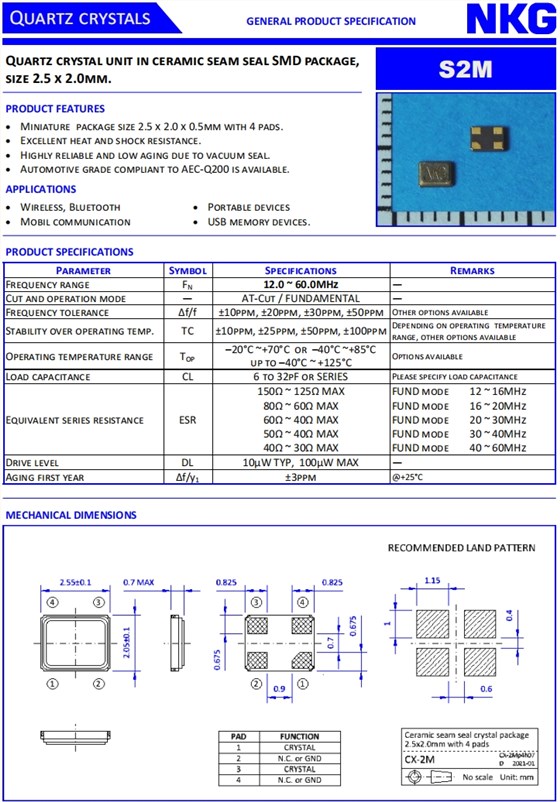

NKG晶振,S2M48.0000F20M2Z-EXT,2520mm晶振,6G路由器晶振规格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
48MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±20ppm
Other options available
Stability over operating temp.
TC
±25ppm
Depending on operating temperaturerange, other options available
Operating temperature range
TOP
–40°C ~+85°C
Options available
Load capacitance
CL
20pF
Please specify load capacitance
Equivalent series resistance
ESR
40Ω~30Ω MAX
FUND MODE 40~ 60MHz
Drive level
DL
10µW TYP, 100µW MAX
-
Aging first year
Δf/y1
±3ppm
@+25°C
