NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振

产品简介

NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振,NKG Crystal,S7M进口贴片晶振,无源晶振,S7M24.5760F18E23-EXT晶振,石英晶体谐振器,7050mm晶振,四脚封装晶振,SMD晶振,频率24.576MHz,负载18pF,频率容差20ppm,工作温度-20~70°C,耐高温晶振,抗震动晶振,高品质晶振,6G无线网络晶振,微处理器晶振,调制解调器晶振,便携式设备晶振.

产品详情

NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振,NKG Crystal,S7M进口贴片晶振,无源晶振,S7M24.5760F18E23-EXT晶振,石英晶体谐振器,7050mm晶振,四脚封装晶振,SMD晶振,频率24.576MHz,负载18pF,频率容差20ppm,工作温度-20~70°C,耐高温晶振,抗震动晶振,高品质晶振,6G无线网络晶振,微处理器晶振,调制解调器晶振,便携式设备晶振.

NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振特点：

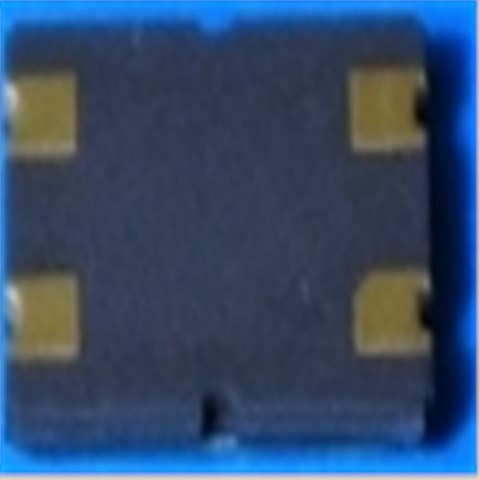

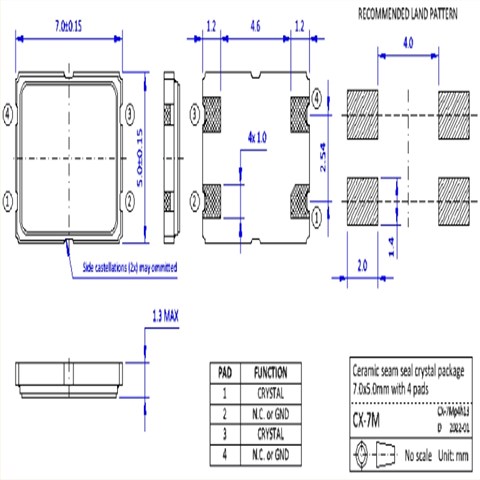

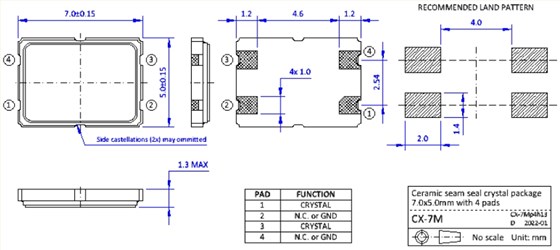

●小包装尺寸7.0 x 5.0x 1.1mm与4个垫

●优异的耐热性和抗震性

●高可靠的缝封封装，低老化

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

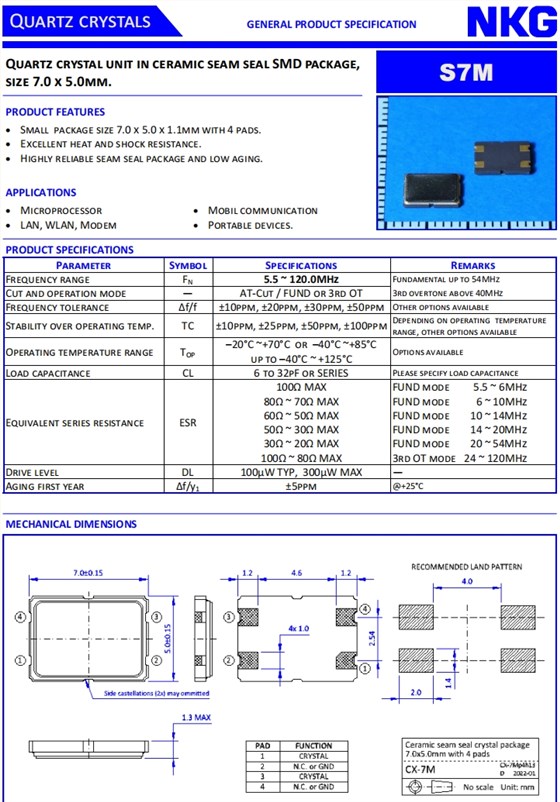

NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	24.576MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±30ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–20°C ~+70°C	Options available
Load capacitance	CL	18pF	Please specify load capacitance
Equivalent series resistance	ESR	30Ω~20Ω MAX	FUND MODE 20~ 54MHz
Drive level	DL	100µW TYP, 300µW MAX	-
Aging first year	Δf/y1	±5ppm	@+25°C
