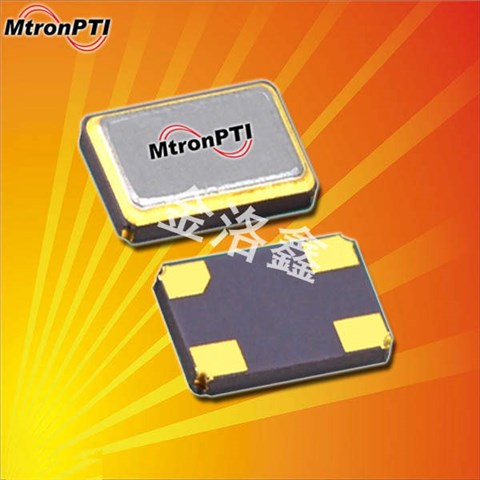

M12531JM20 24.000000,3225mm晶体,MtronPTI品牌晶振

产品简介

M12531JM20 24.000000,3225mm晶体,MtronPTI品牌晶振，美国进口晶振，MtronPTI晶振，麦特伦皮晶振，型号：M1253系列晶振，编码为：M12531JM20 24.000000，频率：24MHz，频率稳定性：±50ppm，频率容差：±30ppm，负载电容：20pF，工作温度范围：-10℃至+70℃，小体积晶振尺寸：3.2x2.5mm封装，四脚贴片晶振，石英水晶振动子，无源晶振，3225石英晶振，石英晶体谐振器，SMD晶振，具有超小型，轻薄型，高品质晶振，高性能，高质量等特点。应用于：手持式电子设备，PDA、GPS、MP3，便携式仪器，PCMCIA卡，蓝牙等应用。

产品详情

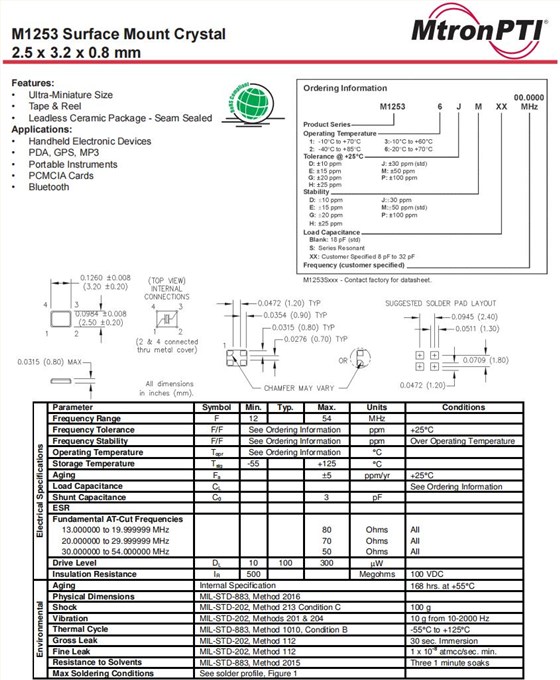

M12531JM20 24.000000,3225mm晶体,MtronPTI品牌晶振,参数表

品牌	MtronPTI麦特伦皮晶振
型号	M1253
物料编码	M12531JM20 24.000000
频率	24MHz
频率稳定性	±50ppm
频率容差	±30ppm
负载电容	20pF
工作温度	-10℃至+70℃
尺寸	3.2x2.5mm

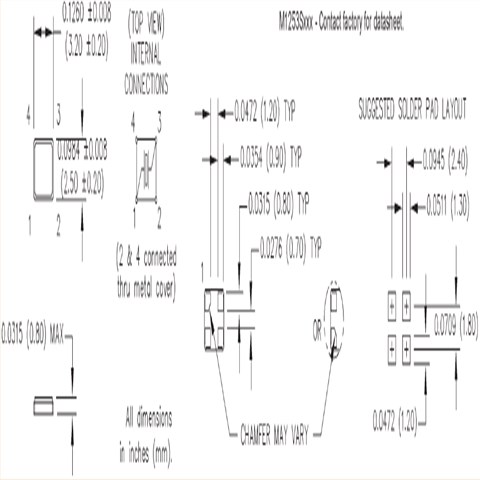

M12531JM20 24.000000,3225mm晶体,MtronPTI品牌晶振,尺寸图

贴片石英晶振	型号	频率	包装	频率稳定性	频率容差
M12531DD 25.000000	M1253	25MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M12531DD20 25.000000	M1253	25MHz	2.5 x 3.2 mm	±10 ppm	±10 ppm
M12531JJ12 50.000000	M1253	50MHz	2.5 x 3.2 mm	±30 ppm	±30 ppm
M12531JM12 12.000000	M1253	12MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12531JM12 25.000000	M1253	25MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12531JM20 24.000000	M1253	24MHz	2.5 x 3.2 mm	±50 ppm	±30 ppm
M12531MM16 30.000000	M1253	30MHz	2.5 x 3.2 mm	±50 ppm	±50 ppm
M12532DE09 24.000000	M1253	24MHz	2.5 x 3.2 mm	±15 ppm	±10 ppm
M12532DG 24.000000	M1253	24MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG08 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG12 19.200000	M1253	19.2MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG13 24.000000	M1253	24MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG15 20.000000	M1253	20MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG16 14.318180	3225晶振	14.3182MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG16 24.000000	M1253	24MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG16 25.000000	M1253	15.36MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG16 50.000000	M1253	50MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532DG22 30.000000	M1253	30MHz	2.5 x 3.2 mm	±20 ppm	±10 ppm
M12532GG 25.000000	M1253	25MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M12532GG 50.000000	M1253	50MHz	2.5 x 3.2 mm	±20 ppm	±20 ppm
M12532GJ 24.000000	M1253	24MHz	2.5 x 3.2 mm	±30 ppm	±20 ppm
M12532GJ 25.000000	M1253	25MHz	2.5 x 3.2 mm	±30 ppm	±20 ppm
M12532HH 14.318180	M1253	14.3182MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
M12532HH 16.000000	M1253	16MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
M12532HH 25.000000	M1253	25MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
M12532HH 27.000000	M1253	27MHz	2.5 x 3.2 mm	±25 ppm	±25 ppm
