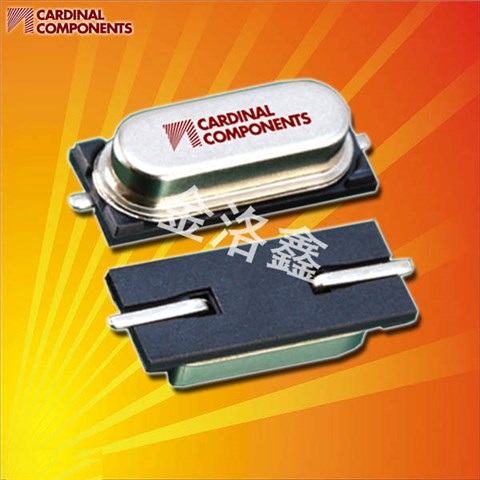

CSM1Z-A5B2C5-50-20.0D18,Cardinal椭圆形晶振,机顶盒应用晶振，美国进口晶振，Cardinal晶振，卡迪纳尔晶振，型号：CSM1系列，编码为：CSM1Z-A5B2C5-50-20.0D18，频率：20MHz，频率稳定性：±50ppm，工作温度范围：-20℃至+70℃，负载电容：18pF，频率容差：±20ppm，是一款小体积晶振尺寸：12.5x4.5mm椭圆形金属外壳封装，低轮廓表面安装晶体，两脚贴片晶振，石英晶振，石英晶体谐振器，无源晶振，无铅环保晶振，SMD晶体。被广泛用于：通讯设备晶振，无线晶振，蓝牙模块晶振，无线局域网晶振，MPU，微控制器，机顶盒等应用.
CSM1Z-A5B2C5-50-20.0D18,Cardinal椭圆形晶振,机顶盒应用晶振，产品特点：
•薄型表面贴装水晶
•封装是自动表面安装组件和回流焊实践的理想选择
•CSM1-4.6mm；CSM4-3.5mm；CSM5-3.0mm高
•AT切割水晶贴片晶振
•频率范围：3.579545MHz至80MHz

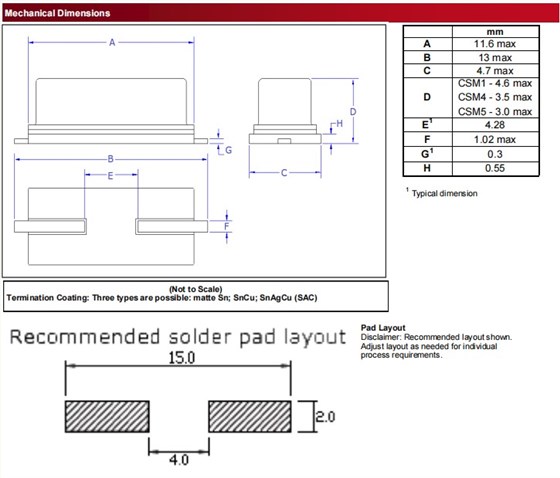

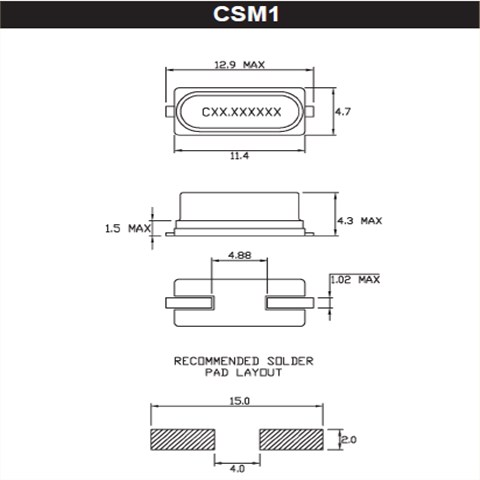

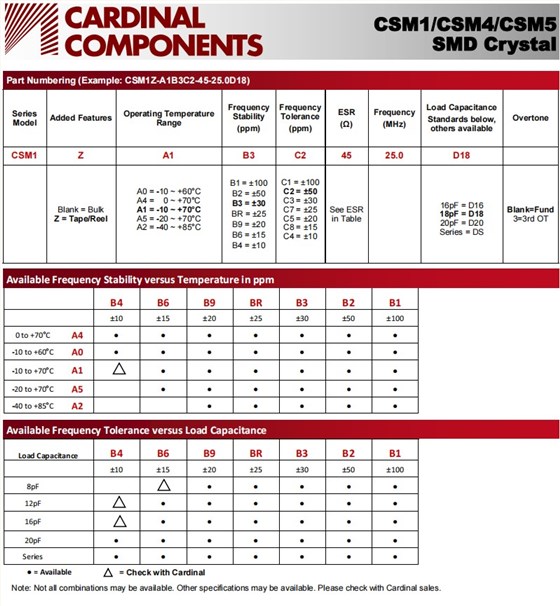

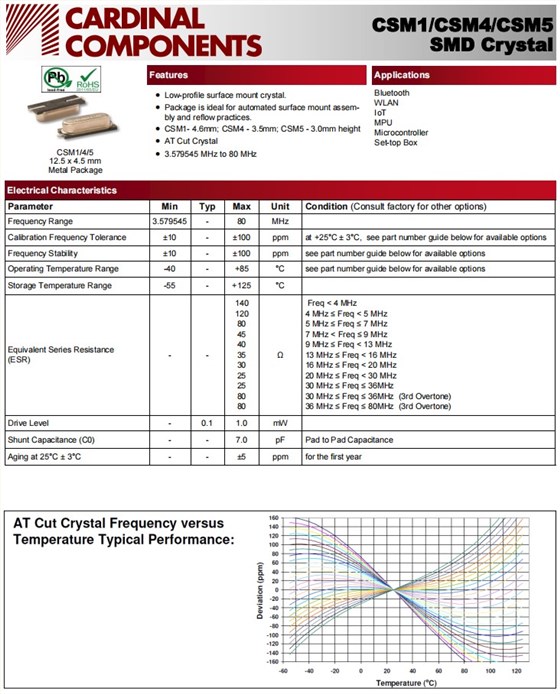

CSM1Z-A5B2C5-50-20.0D18,Cardinal椭圆形晶振,机顶盒应用晶振,参数表
Parameter
Min
Typ
Max
Unit
Condition(Consult factory for other options)
Frequency Range
20
MHz
Calibration Frequency Tolerance
±10
-
±100
ppm
at +25°C ± 3°C,see part number guide below for available options
Frequency Stability
±10
-
±100
ppm
see part number guide below for available options
Operating Temperature Range
-40
-
+85
°C
see part number guide below for available options
Storage Temperature Range
-55
-
+125
°C
Equivalent Series Resistance
(ESR)
-
-
140
120
80
45
40
35
30
25
25
80
80
Ω
Freq < 4 MHz
4 MHz ≤ Freq < 5 MHz
5 MHz ≤ Freq ≤ 7 MHz
7 MHz < Freq ≤ 9 MHz
9 MHz ≤ Freq < 13 MHz
13 MHz ≤ Freq < 16 MHz
16 MHz ≤ Freq < 20 MHz
20 MHz ≤ Freq < 30 MHz
30 MHz ≤ Freq ≤ 36MHz
30 MHz ≤ Freq ≤ 36MHz(3rd Overtone)
36 MHz ≤ Freq ≤ 80MHz(3rd Overtone)
Drive Level
-
0.1
1.0
mW
Shunt Capacitance (C0)
-
-
7.0
pF
Pad to Pad Capacitance
Aging at 25°C ± 3°C
-
-
±5
ppm
for the first year
