CSM1Z-A5B2C3-40-27.0D18-F,Cardinal无线局域网晶振,27MHz石英晶体，美国Cardinal晶振，卡迪纳尔晶振，型号：CSM1系列，编码为：CSM1Z-A5B2C3-40-27.0D18-F，频率：27MHz，工作温度范围：-20℃至+70℃，频率稳定性：±50ppm，频率容差：±30ppm，负载电容：18pF，是一款小体积晶振尺寸：12.5x4.5mm椭圆形金属外壳封装，低轮廓表面安装晶体，两脚贴片晶振，石英晶振，无源晶振，石英晶体谐振器，无铅环保晶振。进口晶振，被广泛用于：通讯设备晶振，无线晶振，蓝牙模块晶振，无线局域网晶振，微控制器，汽车电子，机顶盒等应用.
CSM1Z-A5B2C3-40-27.0D18-F,Cardinal无线局域网晶振,27MHz石英晶体，产品特点：
•薄型表面贴装水晶
•封装是自动表面安装组件和回流焊实践的理想选择

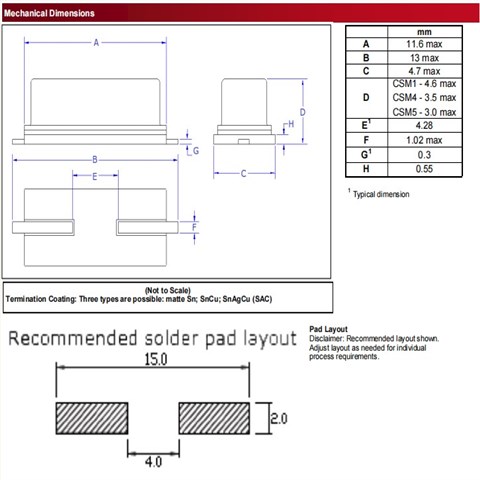

•CSM1-4.6mm；CSM4-3.5mm；CSM5-3.0mm高
•AT切割水晶石英晶振
•频率范围：3.579545MHz至80MHz
CSM1Z-A5B2C3-40-27.0D18-F,Cardinal无线局域网晶振,27MHz石英晶体,参数表
| Parameter | Min | Typ | Max | Unit | Condition(Consult factory for other options) | |||||||||||||||||||||||
| Frequency Range |
|
27 |
|
MHz | ||||||||||||||||||||||||
| Calibration Frequency Tolerance | ±10 | - | ±100 | ppm | at +25°C ± 3°C,see part number guide below for available options | |||||||||||||||||||||||
| Frequency Stability | ±10 | - | ±100 | ppm | see part number guide below for available options | |||||||||||||||||||||||
| Operating Temperature Range | -40 | - | +85 | °C | see part number guide below for available options | |||||||||||||||||||||||
| Storage Temperature Range | -55 | - | +125 | °C | ||||||||||||||||||||||||
|
Equivalent Series Resistance (ESR) |
- | - |
140 120 80 45 40 35 30 25 25 80 80 |
Ω |
Freq < 4 MHz 4 MHz ≤ Freq < 5 MHz 5 MHz ≤ Freq ≤ 7 MHz 7 MHz < Freq ≤ 9 MHz 9 MHz ≤ Freq < 13 MHz 13 MHz ≤ Freq < 16 MHz 16 MHz ≤ Freq < 20 MHz 20 MHz ≤ Freq < 30 MHz 30 MHz ≤ Freq ≤ 36MHz 30 MHz ≤ Freq ≤ 36MHz(3rd Overtone) 36 MHz ≤ Freq ≤ 80MHz(3rd Overtone) |
|||||||||||||||||||||||
| Drive Level | - | 0.1 | 1.0 | mW | ||||||||||||||||||||||||
| Shunt Capacitance (C0) | - | - | 7.0 | pF | Pad to Pad Capacitance | |||||||||||||||||||||||
| Aging at 25°C ± 3°C | - | - | ±5 | ppm |
for the first year |
|||||||||||||||||||||||
