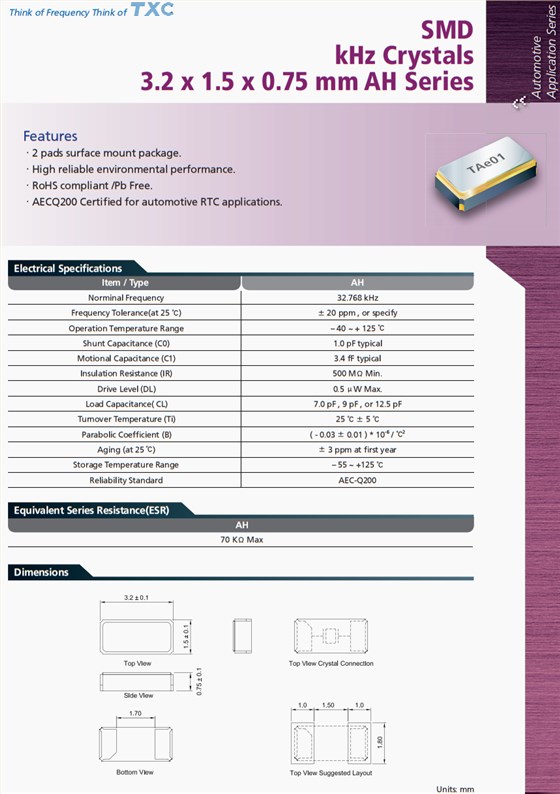

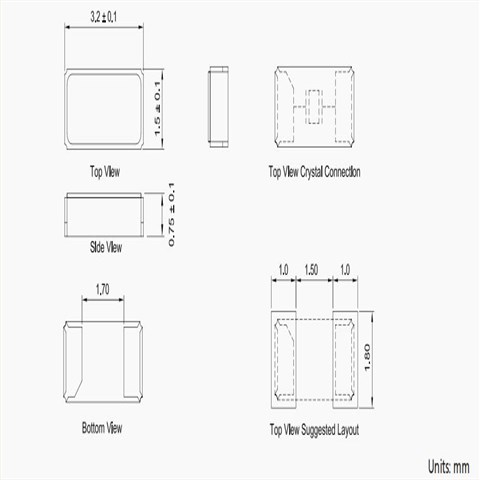

车载多媒体晶振,TXC音叉晶体,AH-32.768KDZF-T晶振，台湾TXC晶振公司，晶技晶振，有源晶振，5032晶振，AH-32.768KDZF-T晶振，汽车晶振，汽车电动天窗控制系统晶振，台湾晶振，贴片晶振，音叉晶振，32.768KHz晶振，二脚晶振，石英晶振，高品质晶振，车载多媒体晶振，行车记录仪晶振，低损耗晶振，耐高温晶振，耐冲击晶振。AH系列SMD,kHz晶体，3.2 x 1.5 x 0.75 mm，功能，2片表面贴装封装。高可靠的环保性能。符合RoHS标准/无铅。AECQ200认证用于汽车RTC应用。

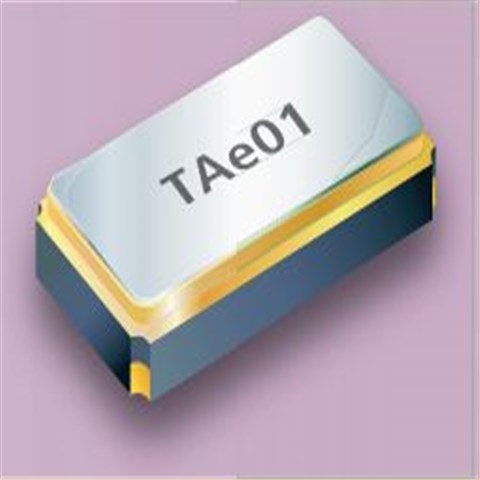

车载多媒体晶振,TXC音叉晶体,AH-32.768KDZF-T晶振
型号
AH
频率
32.768 kHz
频率容差
± 20 ppm , or specify
工作温度
– 40 ~ + 125 ℃
分流电容
1.0 pF typical
运动电容
3.4 fF typical
绝缘电阻
500 MΩ Min.
驱动电平
0.5 μW Max.
负载电容
7.0 pF , 9 pF , or 12.5 pF
周期温度
25 ℃ ± 5 ℃
分解代谢系数
( - 0.03 ± 0.01 ) * 10-6 / ℃2
老化
± 3 ppmat ?rst year
储存温度
– 55 ~ +125 ℃
可靠性标准
AEC-Q200
车载多媒体晶振,TXC音叉晶体,AH-32.768KDZF-T晶振
| TXC原厂编码 | 生产商品牌 | Series | 频率 | 频率稳定度 | 频率容差 | 负载电容 | 工作温度 |
| AH-32.768KDZF-T | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AH-32.768KDZB-T | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 6pF | -40°C ~ 85°C |
| AH-32.768KDZY-T | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 7pF | -40°C ~ 85°C |
| AH-32.768KEWC-T | TXC CORPORATION | AH | 32.768kHz | - | ±10ppm | 9pF | -40°C ~ 125°C |
| AH-32.768KEWF-T | TXC CORPORATION | AH | 32.768kHz | - | ±10ppm | 12.5pF | -40°C ~ 125°C |
| AH-32.768KEZC-T | TXC CORPORATION | AH | 32.768kHz | - | ±10ppm | 9pF | -40°C ~ 85°C |
| AH-32.768KEZF-T | TXC CORPORATION | AH | 32.768kHz | - | ±10ppm | 12.5pF | -40°C ~ 85°C |
| AH-32.768KDWB-T | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 6pF | -40°C ~ 125°C |
| AH-32.768KDWC-T | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 9pF | -40°C ~ 125°C |
| AH-32.768KDWF-T | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 12.5pF | -40°C ~ 125°C |
| AH-32.768KDZC-T | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 9pF | -40°C ~ 85°C |
| AH-32.768KBZF-T | TXC CORPORATION | AH | 32.768kHz | - | ±50ppm | 12.5pF | -40°C ~ 85°C |
| AH-32.768KAZF-T | TXC CORPORATION | AH | 32.768kHz | - | ±30ppm | 12.5pF | -40°C ~ 85°C |
| AH03200003 | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AH03270003 | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AH03270004 | TXC CORPORATION | AH | 32.768kHz | - | ±20ppm | 9pF | -40°C ~ 125°C |
