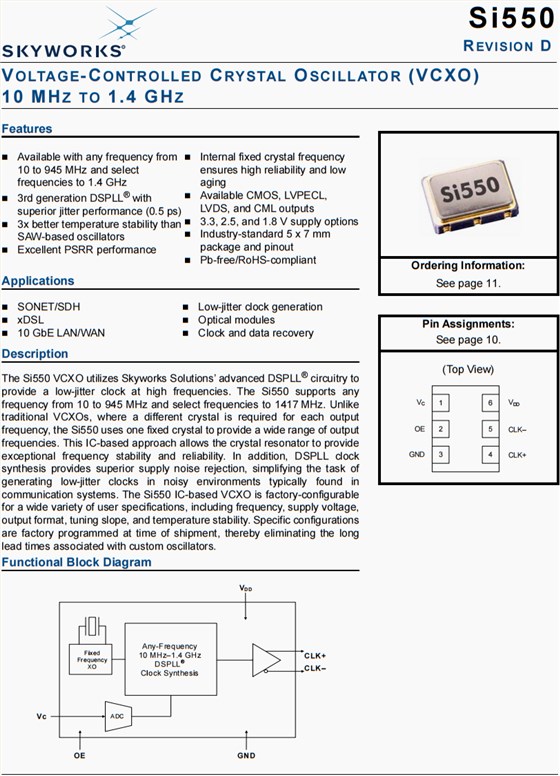

Skyworks环保晶振,无人机信号传输晶振,550CM94M0000DGR压控晶振,美国Skyworks晶振公司,高品质晶振,进口晶振,有源晶振,压控晶振,VCXO晶振,高精度晶振,辅助驾驶模块晶振,6G路由器晶振,Si550 VCXO采用Skyworks Solutions先进的DSPLL®电路,在高频下提供低抖动时钟。Si550支持从10到945 MHz的任意频率和1417 MHz的选择频率。与传统VCXOs不同的是,Si550使用一个固定的晶体来提供广泛的输出频率。这种基于集成电路的方法允许晶体谐振器提供卓越的频率稳定性和可靠性。此外,DSPLL时钟合成提供了优越的电源噪声抑制,简化了在通信系统中通常发现的嘈杂环境中产生低抖动时钟的任务。Si550基于ic的VCXO可在工厂配置,以满足各种用户规格,包括频率,电源电压,输出格式,调谐斜率和温度稳定性。
Skyworks环保晶振,无人机信号传输晶振,550CM94M0000DGR压控晶振
参数 | 符号 | 试验条件 | 最小值 | 典型的 | 最大值 | 单位 |
电源电压 | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V |
2.5 V option | 2.25 | 2.5 | 2.75 | V | ||
1.8 V option | 1.71 | 1.8 | 1.89 | V | ||
供应电流 | IDD |
Output enabled LVPECL
CML LVDS CMOS |
—
— — — |
120
108 99 90 |
130
117 108 98 |
mA |
tristate mode | — | 60 | 75 | mA | ||
输出启用 | VIH | 0.75 x VDD | — | — | V | |
VIL | — | — | 0.5 | V | ||
工作温度范围 | TA | –40 | — | 85 | °C | |
控制电压调整坡度 | KV | 10 to 90% of VDD |
—
— |
33
45 |
—
— |
|
—
— |
90
135 |
—
— |
ppm/V | |||
— | 180 | — | ||||
— | 356 | — | ||||
控制电压线性 | LVC | BSL | –5 | ±1 | +5 | % |
Incremental | –10 | ±5 | +10 | % | ||
调制带宽 | BW | 9.3 | 10.0 | 10.7 | kHz | |
输入抗阻 | ZVC | 500 | — | — | k? | |
标称控制电压 | VCNOM | @ fO | — | VDD/2 | — | V |
控制电压协调范围 | VC | 0 | VDD | V | ||
标称频率 | fO | LVDS/CML/LVPECL | 10 | — | 945 | MHz |
CMOS | 10 | — | 160 | MHz | ||
温度稳定度 | TA= –40 to +85 ºC |
–20
–50 –100 |
—
— — |
20
+50 +100 |
ppm | |
老化 | Frequency drift over first year. | — | — | ±3 | ppm | |
Frequency drift over 15 year life. | — | — | ±10 |

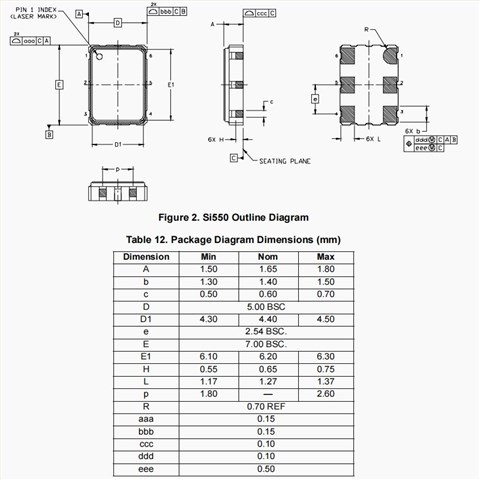

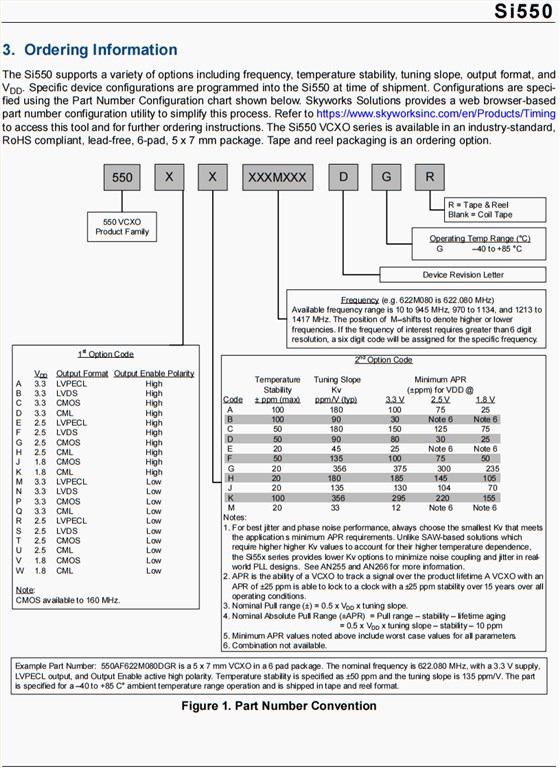

Skyworks环保晶振,无人机信号传输晶振,550CM94M0000DGR压控晶振
SKYWORKS原厂编码 | 生产商 | 型号 | 频率 | 输出 | 电源电压 | 频率稳定度 |
550CE100M000DG | Skyworks晶振 | Si550 | 100 MHz | CMOS | 3.3V | ±20ppm |
550BJ25M0000DG | Skyworks晶振 | Si550 | 25 MHz | LVDS | 3.3V | ±20ppm |
550CE102M400DG | Skyworks晶振 | Si550 | 102.4 MHz | CMOS | 3.3V | ±20ppm |
550CD16M0000DGR | Skyworks晶振 | Si550 | 16 MHz | CMOS | 3.3V | ±50ppm |
550CD20M0000DGR | Skyworks晶振 | Si550 | 20 MHz | CMOS | 3.3V | ±50ppm |
550CD30M0000DGR | Skyworks晶振 | Si550 | 30 MHz | CMOS | 3.3V | ±50ppm |
550CF10M0000DGR | Skyworks晶振 | Si550 | 10 MHz | CMOS | 3.3V | ±50ppm |
550CD16M0000DG | Skyworks晶振 | Si550 | 16 MHz | CMOS | 3.3V | ±50ppm |
550CD20M0000DG | Skyworks晶振 | Si550 | 20 MHz | CMOS | 3.3V | ±50ppm |
550CD30M0000DG | Skyworks晶振 | Si550 | 30 MHz | CMOS | 3.3V | ±50ppm |
550CF10M0000DG | Skyworks晶振 | Si550 | 10 MHz | CMOS | 3.3V | ±50ppm |
550CJ22M5790DG | Skyworks晶振 | Si550 | 22.579 MHz | CMOS | 3.3V | ±20ppm |
550CM22M5790DG | Skyworks晶振 | Si550 | 22.579 MHz | CMOS | 3.3V | ±20ppm |
550CM94M0000DG | Skyworks晶振 | Si550 | 94 MHz | CMOS | 3.3V | ±20ppm |
550CJ22M5790DGR | Skyworks晶振 | Si550 | 22.579 MHz | CMOS | 3.3V | ±20ppm |
550CM22M5790DGR | Skyworks晶振 | Si550 | 22.579 MHz | CMOS | 3.3V | ±20ppm |
550CM94M0000DGR | Skyworks晶振 | Si550 | 94 MHz | CMOS | 3.3V | ±20ppm |
550AD10M0000DGR | Skyworks晶振 | Si550 | 10 MHz | LVPECL | 3.3V | ±50ppm |
550AD12M5458DGR | Skyworks晶振 | Si550 | 12.5458 MHz | LVPECL | 3.3V | ±50ppm |
550AD24M5760DGR | Skyworks晶振 | Si550 | 24.576 MHz | LVPECL | 3.3V | ±50ppm |
550AD27M0000DGR | Skyworks晶振 | Si550 | 27 MHz | LVPECL | 3.3V | ±50ppm |
550AD94M0000DGR | Skyworks晶振 | Si550 | 94 MHz | LVPECL | 3.3V | ±50ppm |
550BD62M5000DGR | Skyworks晶振 | Si550 | 62.5 MHz | LVDS | 3.3V | ±50ppm |
550FD74M2500DGR | Skyworks晶振 | Si550 | 74.25 MHz | LVDS | 2.5V | ±50ppm |
550RC12M2230DGR | Skyworks晶振 | Si550 | 12.223 MHz | LVPECL | 2.5V | ±50ppm |
550AJ873M515DG | Skyworks晶振 | Si550 | 873.515 MHz | LVPECL | 3.3V | ±20ppm |
550AJ873M515DGR | Skyworks晶振 | Si550 | 873.515 MHz | LVPECL | 3.3V | ±20ppm |
550FG125M000DG | Skyworks晶振 | Si550 | 125 MHz | LVDS | 2.5V | ±20ppm |
550FG125M000DGR | Skyworks晶振 | Si550 | 125 MHz | LVDS | 2.5V | ±20ppm |
550AD10M0000DG | Skyworks晶振 | Si550 | 10 MHz | LVPECL | 3.3V | ±50ppm |
550AD12M5458DG | Skyworks晶振 | Si550 | 12.5458 MHz | LVPECL | 3.3V | ±50ppm |
550AD24M5760DG | Skyworks晶振 | Si550 | 24.576 MHz | LVPECL | 3.3V | ±50ppm |
550AD27M0000DG | Skyworks晶振 | Si550 | 27 MHz | LVPECL | 3.3V | ±50ppm |
550AD94M0000DG | Skyworks晶振 | Si550 | 94 MHz | LVPECL | 3.3V | ±50ppm |
550BD62M5000DG | Skyworks晶振 | Si550 | 62.5 MHz | LVDS | 3.3V | ±50ppm |
550FD74M2500DG | Skyworks晶振 | Si550 | 74.25 MHz | LVDS | 2.5V | ±50ppm |
550RC12M2230DG | Skyworks晶振 | Si550 | 12.223 MHz | LVPECL | 2.5V | ±50ppm |
550AJ40M0000DGR | Skyworks晶振 | Si550 | 40 MHz | LVPECL | 3.3V | ±20ppm |
550CA100M000DGR | Skyworks晶振 | Si550 | 100 MHz | CMOS | 3.3V | ±100ppm |
550CA24M5760DGR | Skyworks晶振 | Si550 | 24.576 MHz | CMOS | 3.3V | ±100ppm |
550CA25M0000DGR | Skyworks晶振 | Si550 | 25 MHz | CMOS | 3.3V | ±100ppm |
550CA27M0000DGR | Skyworks晶振 | Si550 | 27 MHz | CMOS | 3.3V | ±100ppm |
550CA30M7200DGR | Skyworks晶振 | Si550 | 30.72 MHz | CMOS | 3.3V | ±100ppm |
550CA38M8800DGR | Skyworks晶振 | Si550 | 38.88 MHz | CMOS | 3.3V | ±100ppm |
550CA48M0000DGR | Skyworks晶振 | Si550 | 48 MHz | CMOS | 3.3V | ±100ppm |
550CA49M1250DGR | Skyworks晶振 | Si550 | 49.125 MHz | CMOS | 3.3V | ±100ppm |
550CA49M1520DGR | Skyworks晶振 | Si550 | 49.152 MHz | CMOS | 3.3V | ±100ppm |
550CB25M0000DGR | Skyworks晶振 | Si550 | 25 MHz | CMOS | 3.3V | ±100ppm |
550CK11M2896DGR | Skyworks晶振 | Si550 | 11.2896 MHz | CMOS | 3.3V | ±100ppm |
550CK22M5792DGR | Skyworks晶振 | Si550 | 22.5792 MHz | CMOS | 3.3V | ±100ppm |
550CK24M5760DGR | Skyworks晶振 | Si550 | 24.576 MHz | CMOS | 3.3V | ±100ppm |
550CK29M5000DGR | Skyworks晶振 | Si550 | 29.5 MHz | CMOS | 3.3V | ±100ppm |
