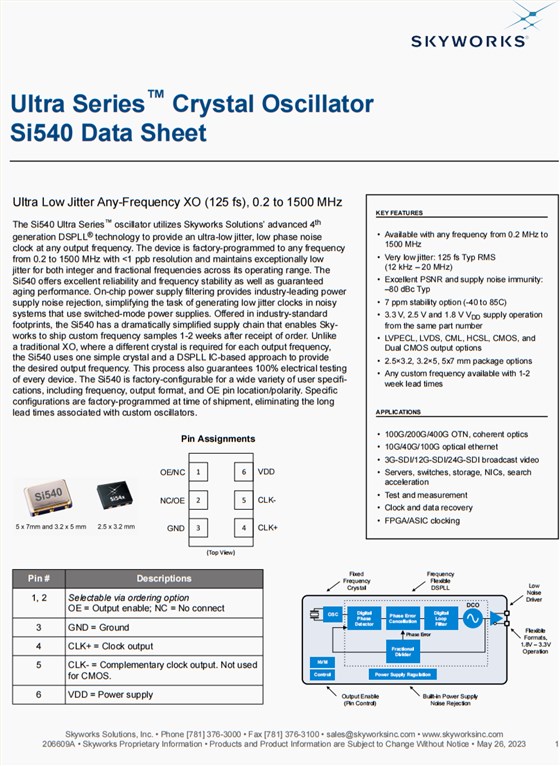

进口SKYWORKS晶体,540CAB10M0000ACG差分晶振,航空飞行器晶振,美国Skyworks晶振公司,高品质晶振,进口晶振,欧美晶振,有源晶振,贴片晶振,7050晶振,LVDS差分晶振,小体积晶振,差分晶振 ,LVPECL晶振,Si540晶振,石英晶振,金属面晶振,100G/200G/400G OTN、相干光学、10G/40G/100G光以太网、3G-SDI/12G-SDI/24G-SDI广播视频、服务器、交换机、存储、网卡、搜索、加速、测试和测量、时钟和数据恢复、FPGA/ASIC时钟。Si540系列振荡器采用Skyworks Solutions先进的第四代DSPLL®技术,在任何输出频率下提供超低抖动,低相位噪声时钟。该设备在工厂编程为0.2至1500 MHz的任何频率,分辨率<1 ppb,并在其工作范围内保持整数和分数频率的极低抖动。Si540具有出色的可靠性和频率稳定性以及保证的老化性能。片上电源滤波提供业界领先的电源噪声抑制,简化了在使用开关模式电源的噪声系统中产生低抖动时钟的任务。Si540提供行业标准的足迹,大大简化了供应链,使Skyworks能够在收到订单后1-2周内发送定制频率样品。不同于传统的XO,每个输出频率都需要不同的晶体,Si540使用一个简单的晶体和基于DSPLL ic的方法来提供所需的输出频率。这个过程也保证了每个设备100%的电气测试。Si540在出厂时可根据各种用户规格进行配置,包括频率、输出格式和OE引脚位置/极性。特定配置在出厂时进行工厂编程,消除了与定制振荡器相关的长交货时间。

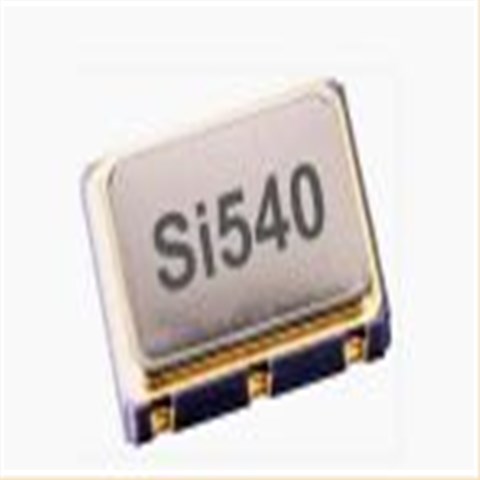

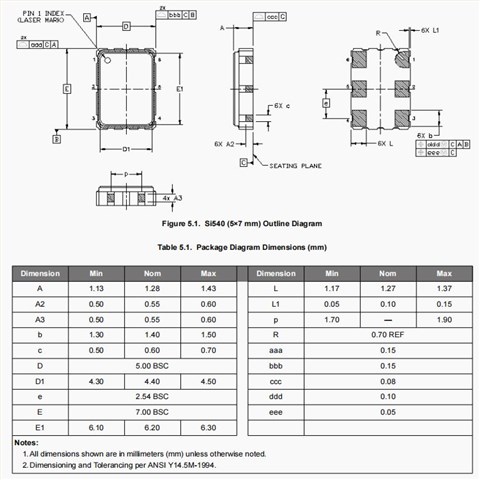

进口SKYWORKS晶体,540CAB10M0000ACG差分晶振,航空飞行器晶振
Parameter | Symbol | Test Condition/Comment | Min | Typ | Max | Unit |
温度范围 | TA | –40 | — | 85 | ºC | |
频率范围 | FCLK | LVPECL, LVDS, CML | 0.2 | — | 1500 | MHz |
HCSL | 0.2 | — | 400 | MHz | ||
CMOS, Dual CMOS | 0.2 | — | 250 | MHz | ||
电源电压 | VDD | 3.3 V | 3.135 | 3.3 | 3.465 | V |
2.5 V | 2.375 | 2.5 | 2.625 | V | ||
1.8 V | 1.71 | 1.8 | 1.89 | V | ||
供应电流 | IDD | LVPECL (output enabled) | — | 100 | 145 | mA |
LVDS/CML (output enabled) | — | 75 | 111 | mA | ||
HCSL (output enabled) | — | 80 | 125 | mA | ||
HCSL-Fast (output enabled) | — | 88 | 137 | mA | ||
CMOS (output enabled) | — | 74 | 108 | mA | ||
Dual CMOS (output enabled) | — | 80 | 125 | mA | ||
Tristate Hi-Z (output disabled) | — | 64 | 100 | mA | ||
温度稳定性 | Frequency stability Grade A | –20 | — | 20 | ppm | |
Frequency stability Grade B | –10 | — | 10 | ppm | ||
Frequency stability Grade C | –7 | — | 7 | ppm | ||
升降时间 (20% to 80% VPP) | TR/TF | LVPECL/LVDS/CML | — | — | 350 | ps |
CMOS / Dual CMOS (CL= 5 pF) | — | 0.5 | 1.5 | ns | ||
HCSL, FCLK>50 MHz | — | — | 550 | ps | ||
HCSL-Fast, FCLK>50 MHz | — | — | 275 | ps | ||
占空比 | DC | All formats | 45 | — | 55 | % |
输出启动 (OE)2 | VIH | 0.7 × VDD | — | — | V | |
VIL | — | — | 0.3 × VDD | V | ||
TD | Output Disable Time, FCLK>10 MHz | — | — | 3 | µs | |
TE | Output Enable Time, FCLK>10 MHz | — | — | 20 | µs | |
通电时间 | tOSC | Time from 0.9 × VDDuntil output fre- quency (FCLK) within spec | — | — | 10 | ms |
进口SKYWORKS晶体,540CAB10M0000ACG差分晶振,航空飞行器晶振
SKYWORKS原厂编码 | 生产商 | 型号 | 频率 | 输出 | 电源电压 | 频率稳定度 |
540BAA000274BBG | Skyworks晶振 | Si540 | 322.265625 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540AAA100M000BBG | Skyworks晶振 | Si540 | 100 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
540AAA156M250BBG | Skyworks晶振 | Si540 | 156.25 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
540BAA125M000BBG | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540BAA100M000BBG | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540BAA122M880BBG | Skyworks晶振 | Si540 | 122.88 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540DAA156M250BBG | Skyworks晶振 | Si540 | 156.25 MHz | CML | 1.8V, 2.5V, 3.3V | ±20ppm |
540BAA000244BBG | Skyworks晶振 | Si540 | 148.351648 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540BCA000127BBG | Skyworks晶振 | Si540 | 644.53125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±7ppm |
540BAA100M000BBGR | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540AAA100M000BBGR | Skyworks晶振 | Si540 | 100 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
540AAA10M0000BAGR | Skyworks晶振 | Si540 | 10 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
540AAA114M285BAGR | Skyworks晶振 | Si540 | 114.285 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
540AAA122M880BAGR | Skyworks晶振 | Si540 | 122.88 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
540AAA125M000BAGR | Skyworks晶振 | Si540 | 125 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
540AAA24M0000BAGR | Skyworks晶振 | Si540 | 24 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
540AAA25M0000BAGR | Skyworks晶振 | Si540 | 25 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
540AAA48M0000BAGR | Skyworks晶振 | Si540 | 48 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
540AAA50M0000BAGR | Skyworks晶振 | Si540 | 50 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
540AAC100M000BBGR | Skyworks晶振 | Si540 | 100 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
540AAC70M6560BAGR | Skyworks晶振 | Si540 | 70.656 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
540BAA106M250BAGR | Skyworks晶振 | Si540 | 106.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540BAA10M0000BAGR | Skyworks晶振 | Si540 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540BAA125M000BBGR | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540BAA125M000BAGR | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540BAA38M400BBGR | Skyworks晶振 | Si540 | 38.4 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540BAA70M0000BAGR | Skyworks晶振 | Si540 | 70 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540BAA70M6560BAGR | Skyworks晶振 | Si540 | 70 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540BAA80M0000BAGR | Skyworks晶振 | Si540 | 80 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540BAA96M0000BAGR | Skyworks晶振 | Si540 | 96 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540BAC116M000BAGR | Skyworks晶振 | Si540 | 116 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540BAC70M6560BBGR | Skyworks晶振 | Si540 | 70.656 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540CAA100M000BAGR | Skyworks晶振 | Si540 | 100 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540CAA10M0000BAGR | Skyworks晶振 | Si540 | 10 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540CAA10M2300BAGR | Skyworks晶振 | Si540 | 10.23 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540CAA125M000BAGR | Skyworks晶振 | Si540 | 125 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540CAA125M000BBGR | Skyworks晶振 | Si540 | 125 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540CAA20M9715BAGR | Skyworks晶振 | Si540 | 20.9715 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540CAA25M0000BAGR | Skyworks晶振 | Si540 | 25 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540CAA38M400BBGR | Skyworks晶振 | Si540 | 38.4 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540CAA48M0000BAGR | Skyworks晶振 | Si540 | 48 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540CAA52M4288BAGR | Skyworks晶振 | Si540 | 52.4288 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540CAA8M00000BBGR | Skyworks晶振 | Si540 | 8 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540CAA9M93125BAGR | Skyworks晶振 | Si540 | 9.93125 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540CAA9M96125BAGR | Skyworks晶振 | Si540 | 9.96125 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540CAB125M000BBGR | Skyworks晶振 | Si540 | 125 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540CAB24M0000BAGR | Skyworks晶振 | Si540 | 24 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540CAB48M0000BAGR | Skyworks晶振 | Si540 | 48 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540CAC70M6560BAGR | Skyworks晶振 | Si540 | 70.656 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540EAA100M000ABGR | Skyworks晶振 | Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm |
540EAA100M000BAGR | Skyworks晶振 | Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm |
540EAA100M000BBGR | Skyworks晶振 | Si540 | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm |
540EAA27M0000BAGR | Skyworks晶振 | Si540 | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm |
540FAA10M0000BAGR | Skyworks晶振 | Si540 | 10 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540FAA25M0000BAGR | Skyworks晶振 | Si540 | 25 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540BAA122M880BBGR | Skyworks晶振 | Si540 | 122.88 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540AAA50M0000BBGR | Skyworks晶振 | Si540 | 50 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
540CAC50M0000BBGR | Skyworks晶振 | Si540 | 50 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540AAA125M000BBGR | Skyworks晶振 | Si540 | 125 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
540CAA100M000BBGR | Skyworks晶振 | Si540 | 100 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±20ppm |
540AAA10M0000BBGR | Skyworks晶振 | Si540 | 10 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
540AAA122M880BBGR | Skyworks晶振 | Si540 | 122.88 MHz | LVPECL | 2.5V, 3.3V | ±20ppm |
540BAA106M250BBGR | Skyworks晶振 | Si540 | 106.25 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540BAA80M0000BBGR | Skyworks晶振 | Si540 | 80 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
540EAA27M0000BBGR | Skyworks晶振 | Si540 | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±20ppm |
540BBA125M000BCGR | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm |
540BBA100M000BCGR | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V ~ 3.3V | ±10ppm |
540ABC121M109ACGR | Skyworks晶振 | Si540 | 121.109 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm |
540ABA25M0000ACGR | Skyworks晶振 | Si540 | 25 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm |
540ABA25M0000BCGR | Skyworks晶振 | Si540 | 25 MHz | LVPECL | 2.5V ~ 3.3V | ±10ppm |
540BBA100M000CCGR | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
540ABC25M0000BCGR | Skyworks晶振 | Si540 | 25 MHz | LVPECL | 2.5V, 3.3V | ±10ppm |
540CBA25M0000BCGR | Skyworks晶振 | Si540 | 25 MHz | CMOS | 1.8V, 2.5V, 3.3V | ±10ppm |
540BBA125M000CCGR | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
540ABA74M1758ACGR | Skyworks晶振 | Si540 | 74.1758 MHz | LVPECL | 2.5V, 3.3V | ±10ppm |
540ABA78M1758ACGR | Skyworks晶振 | Si540 | 78.1758 MHz | LVPECL | 2.5V, 3.3V | ±10ppm |
540BBA33M3330BCGR | Skyworks晶振 | Si540 | 33.333 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
540BBA100M000ABG | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
540BBA100M000BBG | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
540BBA125M000BBG | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
540EBC27M0000BBG | Skyworks晶振 | Si540 | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±10ppm |
540BBA100M000ABGR | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
540BBA100M000BBGR | Skyworks晶振 | Si540 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
540BBA125M000BBGR | Skyworks晶振 | Si540 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±10ppm |
540EBC27M0000BBGR | Skyworks晶振 | Si540 | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V | ±10ppm |
