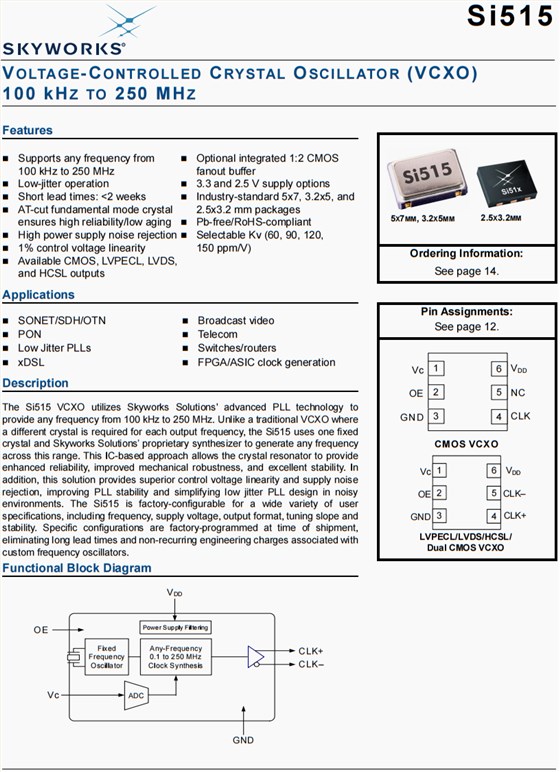

美国思佳讯晶振,515CAA000256AAGR晶振,6G路由器晶振,Skyworks晶振公司,欧美晶振,美国晶振,压控晶振,有源晶振,压控晶振,SMD晶振,石英贴片晶振,VCXO晶振,6G交换机晶振,六脚晶振,贴片晶振,石英晶振,7050晶振,支持从100 kHz到250 MHz的任何频率低抖动工作前置时间短:<2周AT-cut基模晶体确保高可靠性/低老化高电源噪声抑制1%控制电压线性度CMOS, LVPECL, LVDS和HCSL输出可选集成1:2 CMOS风扇输出缓冲3.3和2.5 V电源选项工业标准5x7, 3.2x5和2.5x3.2 mm封装无铅/符合rohs可选Kv (60, 90, 120,150 ppm/V)
美国思佳讯晶振,515CAA000256AAGR晶振,6G路由器晶振
参数 | 标志 | 使用环境 | 最小值 | 典型的 | 最大值 | 单位 |
电源电压 | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V |
2.5 V option | 2.25 | 2.5 | 2.75 | V | ||
供应电流 | IDD | CMOS, 100 MHz,single-ended | — | 24 | 29 | mA |
LVDS(output enabled) | — | 22 | 26 | mA | ||
LVPECL(output enabled) | — | 42 | 46 | mA | ||
HCSL(output enabled) | — | 44 | 47 | mA | ||
Tristate (output disabled) | — | — | 22 | mA | ||
工作温度 | TA | –40 | — | 85 | oC | |
标称频率 | FO | CMOS, Dual CMOS | 0.1 | — | 212.5 | MHz |
FO | LVDS/LVPECL/HCSL | 0.1 | — | 250 | MHz | |
温度稳定度 | ST | TA= –40 to +85oC | –20 | — | +20 | ppm |
老化 | A | Frequency drift over 10 year life | — | — | ±8.5 | ppm |
最小绝对拉力范围 | APR | Ordering option | ±30, ±50,±80, ±100 | ppm | ||
启动时间 | TSU | Minimum VDDto output fre- quency (FO) within specification | — | — | 10 | ms |
禁用时间 | TD | FO?10 MHz | — | — | 5 | µs |
FO< 10 MHz | 40 | µs | ||||
启用时间 | TE | FO?10 MHz | — | — | 20 | µs |
FO< 10 MHz | 60 | µs |
美国思佳讯晶振,515CAA000256AAGR晶振,6G路由器晶振
SKYWORKS原厂编码 | 生产商 | 型号 | 频率 | 输出 | 电源电压 | 频率稳定度 |
515CAAM100000AAGR | Skyworks晶振 | Si515 | 100 kHz | CMOS | 3.3V | ±20ppm |
515CAB32M7680AAGR | Skyworks晶振 | Si515 | 32.768 MHz | CMOS | 3.3V | ±20ppm |
515CBA4M09600AAGR | Skyworks晶振 | Si515 | 4.096 MHz | CMOS | 3.3V | ±20ppm |
515CDA8M00000AAGR | Skyworks晶振 | Si515 | 8 MHz | CMOS | 3.3V | ±20ppm |
515GCA10M0000AAGR | Skyworks晶振 | Si515 | 10 MHz | CMOS | 2.5V | ±20ppm |
515CAA000282CAGR | Skyworks晶振 | Si515 | 14.31818 MHz | CMOS | 3.3V | ±20ppm |
515CAAM100000AAG | Skyworks晶振 | Si515 | 100 kHz | CMOS | 3.3V | ±20ppm |
515CAB32M7680AAG | Skyworks晶振 | Si515 | 32.768 MHz | CMOS | 3.3V | ±20ppm |
515CBA4M09600AAG | Skyworks晶振 | Si515 | 4.096 MHz | CMOS | 3.3V | ±20ppm |
515CDA8M00000AAG | Skyworks晶振 | Si515 | 8 MHz | CMOS | 3.3V | ±20ppm |
515GCA10M0000AAG | Skyworks晶振 | Si515 | 10 MHz | CMOS | 2.5V | ±20ppm |
515CAA000256AAGR | Skyworks晶振 | Si515 | 256 MHz | CMOS | 3.3V | ±20ppm |
515CAA10M0000AAGR | Skyworks晶振 | Si515 | 10 MHz | CMOS | 3.3V | ±20ppm |
515CAA10M2400AAGR | Skyworks晶振 | Si515 | 10.24 MHz | CMOS | 3.3V | ±20ppm |
515CAA125M000AAGR | Skyworks晶振 | Si515 | 125 MHz | CMOS | 3.3V | ±20ppm |
515CAA24M5760AAGR | Skyworks晶振 | Si515 | 24.576 MHz | CMOS | 3.3V | ±20ppm |
515CAA25M0000AAGR | Skyworks晶振 | Si515 | 25 MHz | CMOS | 3.3V | ±20ppm |
515CAA27M0000AAGR | Skyworks晶振 | Si515 | 27 MHz | CMOS | 3.3V | ±20ppm |
515CAA30M0000AAGR | Skyworks晶振 | Si515 | 30 MHz | CMOS | 3.3V | ±20ppm |
515CAA32M7680AAGR | Skyworks晶振 | Si515 | 32.768 MHz | CMOS | 3.3V | ±20ppm |
515CAA40M0000AAGR | Skyworks晶振 | Si515 | 40 MHz | CMOS | 3.3V | ±20ppm |
515CAA44M7360AAGR | Skyworks晶振 | Si515 | 44.736 MHz | CMOS | 3.3V | ±20ppm |
515CAA70M6560AAGR | Skyworks晶振 | Si515 | 70.656 MHz | CMOS | 3.3V | ±20ppm |
515CAA74M2500AAGR | Skyworks晶振 | Si515 | 74.25 MHz | CMOS | 3.3V | ±20ppm |
515CAA7M37472AAGR | Skyworks晶振 | Si515 | 7.37472 MHz | CMOS | 3.3V | ±20ppm |
515CAA7M50000AAGR | Skyworks晶振 | Si515 | 7.5 MHz | CMOS | 3.3V | ±20ppm |
515CAAM928000AAGR | Skyworks晶振 | Si515 | 928 kHz | CMOS | 3.3V | ±20ppm |
515CAB16M3840AAGR | Skyworks晶振 | Si515 | 16.384 MHz | CMOS | 3.3V | ±20ppm |
515CAB49M1520AAGR | Skyworks晶振 | Si515 | 49.152 MHz | CMOS | 3.3V | ±20ppm |
515CAB98M0000AAGR | Skyworks晶振 | Si515 | 98 MHz | CMOS | 3.3V | ±20ppm |
515CBA23M1481AAGR | Skyworks晶振 | Si515 | 23.1481 MHz | CMOS | 3.3V | ±20ppm |
515CBA24M5760AAGR | Skyworks晶振 | Si515 | 24.576 MHz | CMOS | 3.3V | ±20ppm |
515CBA28M9350AAGR | Skyworks晶振 | Si515 | 28.935 MHz | CMOS | 3.3V | ±20ppm |
515CBA2M04800AAGR | Skyworks晶振 | Si515 | 2.048 MHz | CMOS | 3.3V | ±20ppm |
515CBA34M8160AAGR | Skyworks晶振 | Si515 | 34.816 MHz | CMOS | 3.3V | ±20ppm |
515CBA38M8800AAGR | Skyworks晶振 | Si515 | 38.88 MHz | CMOS | 3.3V | ±20ppm |
515CBA3M64000AAGR | Skyworks晶振 | Si515 | 3.64 MHz | CMOS | 3.3V | ±20ppm |
515CBA80M0000AAGR | Skyworks晶振 | Si515 | 80 MHz | CMOS | 3.3V | ±20ppm |
515CBAM240000AAGR | Skyworks晶振 | Si515 | 24 kHz | CMOS | 3.3V | ±20ppm |
515CBAM928571AAGR | Skyworks晶振 | Si515 | 92.8571 MHz | CMOS | 3.3V | ±20ppm |
515CBBM100000AAGR | Skyworks晶振 | Si515 | 100 kHz | CMOS | 3.3V | ±20ppm |
515CCA100M000AAGR | Skyworks晶振 | Si515 | 100 MHz | CMOS | 3.3V | ±20ppm |
515CCA10M0000AAGR | Skyworks晶振 | Si515 | 10 MHz | CMOS | 3.3V | ±20ppm |
515CCA122M880AAGR | Skyworks晶振 | Si515 | 122.88 MHz | CMOS | 3.3V | ±20ppm |
515CCA125M000AAGR | Skyworks晶振 | Si515 | 125 MHz | CMOS | 3.3V | ±20ppm |
515CCA12M8000AAGR | Skyworks晶振 | Si515 | 12.8 MHz | CMOS | 3.3V | ±20ppm |
515CCA15M3600AAGR | Skyworks晶振 | Si515 | 15.36 MHz | CMOS | 3.3V | ±20ppm |
515CCA16M3680AAGR | Skyworks晶振 | Si515 | 16.368 MHz | CMOS | 3.3V | ±20ppm |
515CCA19M4400AAGR | Skyworks晶振 | Si515 | 19.44 MHz | CMOS | 3.3V | ±20ppm |
515CCA25M0000AAGR | Skyworks晶振 | Si515 | 25 MHz | CMOS | 3.3V | ±20ppm |
515CCA27M0000AAGR | Skyworks晶振 | Si515 | 27 MHz | CMOS | 3.3V | ±20ppm |
515CCA30M0000AAGR | Skyworks晶振 | Si515 | 30 MHz | CMOS | 3.3V | ±20ppm |
515CCA30M7200AAGR | Skyworks晶振 | Si515 | 30.72 MHz | CMOS | 3.3V | ±20ppm |
515CCA32M7680AAGR | Skyworks晶振 | Si515 | 32.768 MHz | CMOS | 3.3V | ±20ppm |
515CCA35M0000AAGR | Skyworks晶振 | Si515 | 35 MHz | CMOS | 3.3V | ±20ppm |
515CCA40M0000AAGR | Skyworks晶振 | Si515 | 40 MHz | CMOS | 3.3V | ±20ppm |
515CCA49M1520AAGR | Skyworks晶振 | Si515 | 49.152 MHz | CMOS | 3.3V | ±20ppm |
515CCA56M3200AAGR | Skyworks晶振 | Si515 | 56.32 MHz | CMOS | 3.3V | ±20ppm |
515CCA5M00000AAGR | Skyworks晶振 | Si515 | 5 MHz | CMOS | 3.3V | ±20ppm |
515CCA61M4400AAGR | Skyworks晶振 | Si515 | 61.44 MHz | CMOS | 3.3V | ±20ppm |
515CCA70M6560AAGR | Skyworks晶振 | Si515 | 70.656 MHz | CMOS | 3.3V | ±20ppm |
515CCAM524288AAGR | Skyworks晶振 | Si515 | 52.4288 MHz | CMOS | 3.3V | ±20ppm |
515CCB000314AAGR | Skyworks晶振 | Si515 | 314 MHz | CMOS | 3.3V | ±20ppm |
515CCB19M4400AAGR | Skyworks晶振 | Si515 | 19.44 MHz | CMOS | 3.3V | ±20ppm |
515CCB1M95840AAGR | Skyworks晶振 | Si515 | 1.9584 MHz | CMOS | 3.3V | ±20ppm |
515CCB24M5760AAGR | Skyworks晶振 | Si515 | 24.576 MHz | CMOS | 3.3V | ±20ppm |
515CDA000256AAGR | Skyworks晶振 | Si515 | 256 MHz | CMOS | 3.3V | ±20ppm |
515CDA125M000AAGR | Skyworks晶振 | Si515 | 125 MHz | CMOS | 3.3V | ±20ppm |
515CDA22M5792AAGR | Skyworks晶振 | Si515 | 22.5792 MHz | CMOS | 3.3V | ±20ppm |
515CDA24M5760AAGR | Skyworks晶振 | Si515 | 24.576 MHz | CMOS | 3.3V | ±20ppm |
515CDA27M0000AAGR | Skyworks晶振 | Si515 | 27 MHz | CMOS | 3.3V | ±20ppm |
515CDA40M0000AAGR | Skyworks晶振 | Si515 | 40 MHz | CMOS | 3.3V | ±20ppm |
515CDA43M1000AAGR | Skyworks晶振 | Si515 | 43.1 MHz | CMOS | 3.3V | ±20ppm |
515CDA45M0000AAGR | Skyworks晶振 | Si515 | 45 MHz | CMOS | 3.3V | ±20ppm |
515CDA5M00000AAGR | Skyworks晶振 | Si515 | 5 MHz | CMOS | 3.3V | ±20ppm |
