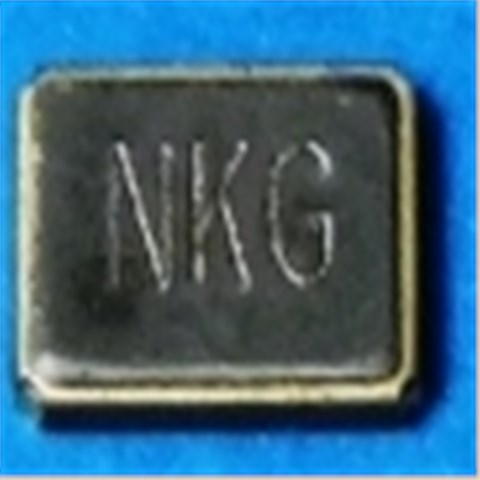

NKG小体积晶振,S3M40.0000F18M23-EXT,6G移动无线电晶振

产品简介

NKG小体积晶振,S3M40.0000F18M23-EXT,6G移动无线电晶振,NKG晶振,S3M进口晶振,无源晶振,S3M40.0000F18M23-EXT晶振,3225mm晶振,四脚封装晶振,贴片石英晶振,石英晶体谐振器,频率40MHz,负载18pF,频率容差20ppm,工作温度-40~85°C,小体积晶振,高可靠性晶振,低老化晶振,6G移动无线电晶振,便携式设备晶振,USB存储设备晶振,蓝牙模块晶振.

产品详情

NKG小体积晶振,S3M40.0000F18M23-EXT,6G移动无线电晶振,NKG晶振,S3M进口晶振,无源晶振,S3M40.0000F18M23-EXT晶振,3225mm晶振,四脚封装晶振,贴片石英晶振,石英晶体谐振器,频率40MHz,负载18pF,频率容差20ppm,工作温度-40~85°C,小体积晶振,高可靠性晶振,低老化晶振,6G移动无线电晶振,便携式设备晶振,USB存储设备晶振,蓝牙模块晶振.

NKG小体积晶振,S3M40.0000F18M23-EXT,6G移动无线电晶振特点：

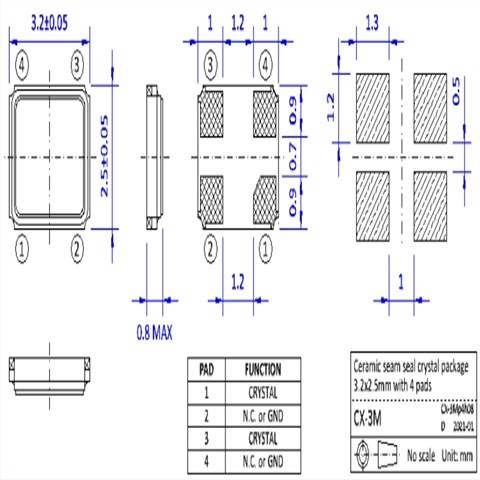

●微型包装尺寸3.2 x 2.5x 0.7mm与4个垫

●优异的耐热性和抗震性

●真空密封，可靠性高，老化率低

●符合AEC-Q200标准的汽车级产品可供选择

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

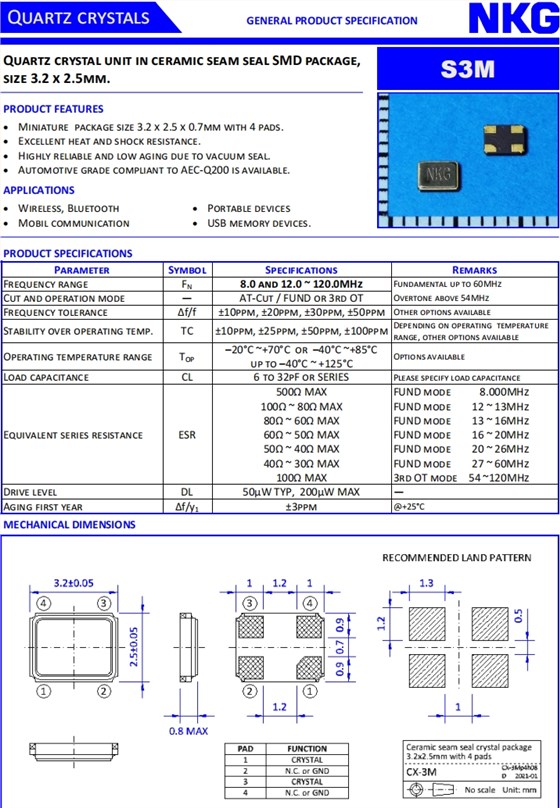

NKG小体积晶振,S3M40.0000F18M23-EXT,6G移动无线电晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	40MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±30ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Load capacitance	CL	18pF	Please specify load capacitance
Equivalent series resistance	ESR	40Ω~30Ω MAX	FUND MODE 27~ 60MHz
Drive level	DL	50µW TYP, 200µW MAX	-
Aging first year	Δf/y1	±3ppm	@+25°C
