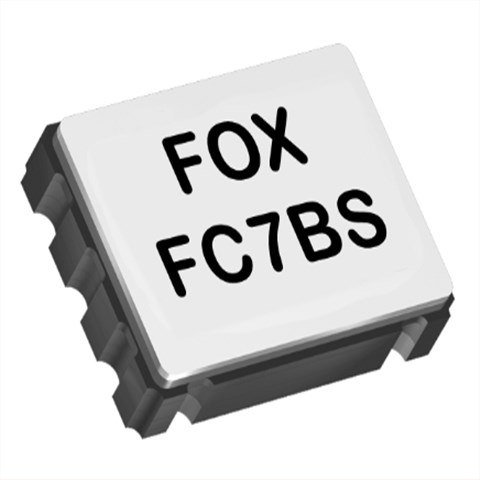

FC7BSBBGM25.0-T1无铅晶体,FOX无源7050晶振,FC7BS存储设备晶振

FC7BSBBGM25.0-T1无铅晶体,FOX无源7050晶振,FC7BS存储设备晶振FC7BSBBGM25.0-T1无铅晶体,FOX无源7050晶振,FC7BS存储设备晶振

产品简介

FC7BSBBGM25.0-T1无铅晶体,FOX无源7050晶振,FC7BS存储设备晶振，美国FOX晶振，高精度晶振，汽车晶振，石英晶体，7050晶振，FC7BS晶振，FC7BSBBGM25.0-T1晶振，小型晶振，低成本晶振，移动网络晶振，四脚晶振.无源晶振，福克斯晶振，微型晶振，SMD晶振，无人机晶振。特点:通过AEC Q200认证，IATF-16949质量管理体系，公差低至±10ppm，稳定性低至±20ppm。低损耗晶振，环保无铅晶振，无源晶振，进口晶振，超小型晶振，智能手表晶振，环保晶振。

产品详情

陶瓷面封装谐振器,4.0*2.5mm小体积SMD晶振,ECX-42晶振

陶瓷面封装谐振器,4.0*2.5mm小体积SMD晶振,ECX-42晶振

FC7BSBBGM25.0-T1无铅晶体,FOX无源7050晶振,FC7BS存储设备晶振，美国FOX晶振，高精度晶振，汽车晶振，石英晶体，7050晶振，FC7BS晶振，FC7BSBBGM25.0-T1晶振，小型晶振，低成本晶振，移动网络晶振，四脚晶振.无源晶振，福克斯晶振，微型晶振，SMD晶振，无人机晶振。特点:通过AEC Q200认证，IATF-16949质量管理体系，公差低至±10ppm，稳定性低至±20ppm。低损耗晶振，环保无铅晶振，无源晶振，进口晶振，超小型晶振，智能手表晶振，环保晶振。

陶瓷面封装谐振器,4.0*2.5mm小体积SMD晶振,ECX-42晶振

FC7BSBBGM25.0-T1无铅晶体,FOX无源7050晶振,FC7BS存储设备晶振

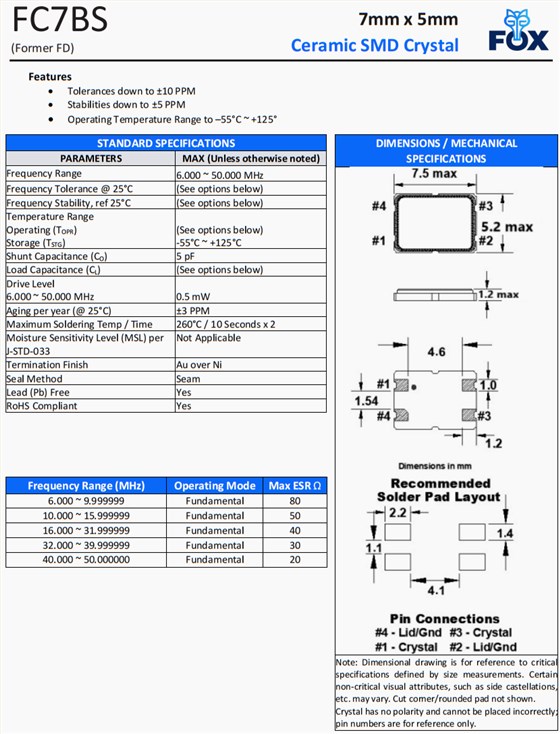

参数 MAX (Unless otherwise noted)
频率 6.000 ~ 50.000 MHz
频率容差 (See options below)
频率稳定度 (See options below)
储存温度 -55°C ~ +125°C
分流电容 5 pF
负载电容 (See options below)
驱动电平 0.5 mW
老化 ±3 PPM
最大焊接温度/时间 260°C / 10 Seconds x 2
湿度敏感度 Not Applicable
终止完成 Au over Ni
密封方式 Seam
无铅 Yes
符合ROHS Yes

陶瓷面封装谐振器,4.0*2.5mm小体积SMD晶振,ECX-42晶振

FC7BSBBGM25.0-T1无铅晶体,FOX无源7050晶振,FC7BS存储设备晶振

FC7BS

FC7BS

编码 品牌 型号 工作温度 频率 频率稳定度 频率容差 负载电容
FC1BSCBEM27.12-T3 Fox FC1BS -40°C ~ 85°C 27.12 MHz ±50ppm ±30ppm 10 pF
FC1BSCCEM16.0-T3 Fox FC1BS -40°C ~ 85°C 16 MHz ±30ppm ±30ppm 10 pF
FC1BSHFEM32.0-T3 Fox FC1BS -40°C ~ 85°C 32 MHz ±15ppm ±10ppm 10 pF
FC2BSBBMM16.0-T1 Fox FC2BS -40°C ~ 85°C 16 MHz ±50ppm ±50ppm 20 pF
FC2BSBBMM16.0-T3 Fox FC2BS -40°C ~ 85°C 16 MHz ±50ppm ±50ppm 20 pF
FC3BABBKM20.0-T3 Fox FC3BA -40°C ~ 85°C 20 MHz ±50ppm ±50ppm 16 pF
FC3BACCGM20.0-T3 Fox FC3BA -40°C ~ 85°C 20 MHz ±30ppm ±30ppm 12 pF
FC3BQBBDM20.0-T3 Fox FC3BQ -40°C ~ 85°C 20 MHz ±50ppm ±50ppm 8 pF
FC3BQBBMM12.0-T1 Fox FC3BQ -40°C ~ 85°C 12 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM12.0-T3 Fox FC3BQ -40°C ~ 85°C 12 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM24.0-T1 Fox FC3BQ -40°C ~ 85°C 24 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM24.0-T3 Fox FC3BQ -40°C ~ 85°C 24 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM25.0-T1 Fox FC3BQ -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM25.0-T3 Fox FC3BQ -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 20 pF
FC3BQBBVM25.0-T3 Fox FC3BQ -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 7 pF
FC3BSBBEM26.0-T3 Fox FC3BS -40°C ~ 85°C 26 MHz ±50ppm ±50ppm 10 pF
FC3BSBBLM25.0-T3 Fox FC3BS -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 18 pF
FC3BSBBMM25.0-T3 Fox FC3BS -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 20 pF
FC3BSHFEM12.0-T3 Fox FC3BS -40°C ~ 85°C 12 MHz ±15ppm ±10ppm 10 pF
FC3VAEEGM50.0-T3 Fox FC3VA -40°C ~ 85°C 50 MHz ±20ppm ±20ppm 12 pF
FC3VREEDM38.4-T1 Fox FC3VR -40°C ~ 85°C 38.4 MHz ±20ppm ±20ppm 8 pF
FC3VREEDM38.88-T1 Fox FC3VR -40°C ~ 85°C 38.88 MHz ±20ppm ±20ppm 8 pF
FC3VREEDM40.0-T1 Fox FC3VR -40°C ~ 85°C 40 MHz ±20ppm ±20ppm 8 pF
FC3VREEDM48.0-T1 Fox FC3VR -40°C ~ 85°C 48 MHz ±20ppm ±20ppm 8 pF
FC3VREEEM38.4-T1 Fox FC3VR -40°C ~ 85°C 38.4 MHz ±20ppm ±20ppm 10 pF
FC3VREEGM36.0-T1 Fox FC3VR -40°C ~ 85°C 36 MHz ±20ppm ±20ppm 12 pF
FC3VREEGM38.4-T1 Fox FC3VR -40°C ~ 85°C 38.4 MHz ±20ppm ±20ppm 12 pF
FC3VREEGM38.88-T1 Fox FC3VR -40°C ~ 85°C 38.88 MHz ±20ppm ±20ppm 12 pF
FC3VREEGM40.0-T1 Fox FC3VR -40°C ~ 85°C 40 MHz ±20ppm ±20ppm 12 pF
FC3VREEGM50.0-T1 Fox FC3VR -40°C ~ 85°C 50 MHz ±20ppm ±20ppm 12 pF
FC4SDCBGM8.0-T1 Fox FC4SD -40°C ~ 85°C 8 MHz ±50ppm ±30ppm 12 pF
FC4SDCBMM10.0-T1 Fox FC4SD -40°C ~ 85°C 10 MHz ±50ppm ±30ppm 20 pF
FC4SDCBMM12.0-T1 Fox FC4SD -40°C ~ 85°C 12 MHz ±50ppm ±30ppm 20 pF
FC4SDCBMM16.0-T1 Fox FC4SD -40°C ~ 85°C 16 MHz ±50ppm ±30ppm 20 pF
FC4SDCBMM20.0-T1 Fox FC4SD -40°C ~ 85°C 20 MHz ±50ppm ±30ppm 20 pF
FC4SDCBMM25.0-T1 Fox FC4SD -40°C ~ 85°C 25 MHz ±50ppm ±30ppm 20 pF
FC4SDCBMM3.6864-T1 Fox FC4SD -40°C ~ 85°C 3.6864 MHz ±50ppm ±30ppm 20 pF
FC4SDCBMM4.0-T1 Fox FC4SD -40°C ~ 85°C 4 MHz ±50ppm ±30ppm 20 pF
FC4SDCBMM6.0-T1 Fox FC4SD -40°C ~ 85°C 6 MHz ±50ppm ±30ppm 20 pF
FC4SDCBMM8.0-T1 Fox FC4SD -40°C ~ 85°C 8 MHz ±50ppm ±30ppm 20 pF
FC4SDHCMM25.0-T1 Fox FC4SD -40°C ~ 85°C 25 MHz ±30ppm ±10ppm 20 pF
FC5AQBAAM8.0-T1 Fox FC5AQ -40°C ~ 85°C 8 MHz ±100ppm ±50ppm
FC5AQCCMM12.0-T1 Fox FC5AQ -40°C ~ 85°C 12 MHz ±30ppm ±30ppm 20 pF
FC5AQECLM25.0-T1 Fox FC5AQ -40°C ~ 85°C 25 MHz ±30ppm ±20ppm 18 pF
FC5BAEEEM8.0-T1 Fox FC5BA -40°C ~ 85°C 8 MHz ±20ppm ±20ppm 10 pF
FC5BAEEMM8.0-T1 Fox FC5BA -40°C ~ 85°C 8 MHz ±20ppm ±20ppm 20 pF
FC5BQCBKM12.0-T1 Fox FC5BQ -40°C ~ 85°C 12 MHz ±50ppm ±30ppm 16 pF
FC5BQCCMM10.0-T1 Fox FC5BQ -40°C ~ 85°C 10 MHz ±30ppm ±30ppm 20 pF
FC5BQCCMM12.0-T1 Fox FC5BQ -40°C ~ 85°C 12 MHz ±30ppm ±30ppm 20 pF
FC5BQCCMM16.0-T1 Fox FC5BQ -40°C ~ 85°C 16 MHz ±30ppm ±30ppm 20 pF
FC5BQCCMM20.0-T1 Fox FC5BQ -40°C ~ 85°C 20 MHz ±30ppm ±30ppm 20 pF
FC5BQCCMM24.0-T1 Fox FC5BQ -40°C ~ 85°C 24 MHz ±30ppm ±30ppm 20 pF
FC5BQCCMM25.0-T1 Fox FC5BQ -40°C ~ 85°C 25 MHz ±30ppm ±30ppm 20 pF
FC5BQCCMM8.0-T1 Fox FC5BQ -40°C ~ 85°C 8 MHz ±30ppm ±30ppm 20 pF
FC5BSCBLM20.0-T1 Fox FC5BS -40°C ~ 85°C 20 MHz ±50ppm ±30ppm 18 pF
FC5BSCCEM19.6608-T1 Fox FC5BS -40°C ~ 85°C 19.6608 MHz ±30ppm ±30ppm 10 pF
FC5BSHFEM25.0-T1 Fox FC5BS -40°C ~ 85°C 25 MHz ±15ppm ±10ppm 10 pF
FC7ASBAMM9.216-T1 Fox FC7AS -40°C ~ 85°C 9.216 MHz ±100ppm ±50ppm 20 pF
FC7ASBBMM16.0-T1 Fox FC7AS -40°C ~ 85°C 16 MHz ±50ppm ±50ppm 20 pF
FC7ASBBMM9.216-T1 Fox FC7AS -40°C ~ 85°C 9.216 MHz ±50ppm ±50ppm 20 pF
FC7ASCCGM7.6-T1 Fox FC7AS -40°C ~ 85°C 7.6 MHz ±30ppm ±30ppm 12 pF
FC7BSBBGM25.0-T1 Fox FC7BS -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 12 pF
FC7BSCCEM6.0-T1 Fox FC7BS -40°C ~ 85°C 6 MHz ±30ppm ±30ppm 10 pF
FC7BSCCMM6.0-T1 Fox FC7BS -40°C ~ 85°C 6 MHz ±30ppm ±30ppm 20 pF
FC7BSCCMM7.3728-T1 Fox FC7BS -40°C ~ 85°C 7.3728 MHz ±30ppm ±30ppm 20 pF
FC7BSCCMM8.0-T1 Fox FC7BS -40°C ~ 85°C 8 MHz ±30ppm ±30ppm 20 pF
FC8AQCCMM3.6864-T1 Fox FC8AQ -40°C ~ 85°C 3.6864 MHz ±30ppm ±30ppm 20 pF
FC8AQCCMM4.0-T1 Fox FC8AQ -40°C ~ 85°C 4 MHz ±30ppm ±30ppm 20 pF
FC8AQCCMM6.0-T1 Fox FC8AQ -40°C ~ 85°C 6 MHz ±30ppm ±30ppm 20 pF
FC9SDCBMM8.0-T1 Fox FC9SD -40°C ~ 85°C 8 MHz ±50ppm ±30ppm 20 pF
FK121EIWM0.032768-T5 Fox FK121 -40°C ~ 85°C 32.768 kHz ±20ppm 9 pF
FK122EIHM0.032768-T3 Fox FK122 -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
FK124EIWM0.032768-T5 Fox FK124 -40°C ~ 85°C 32.768 kHz ±20ppm 9 pF
FK125EIVM0.032768 Fox FK125 -40°C ~ 85°C 32.768 kHz ±20ppm 7 pF
FK135EIHM0.032768-T3 Fox FK135 -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
FK13LEIBM0.032768-T3 Fox FK13L -40°C ~ 85°C 32.768 kHz ±20ppm 6 pF
FK145EIHM0.032768-T3 Fox FK145 -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
FK161EIHM0.032768-T5 Fox FK161 -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
FKFSREIBM0.032768-T3 Fox FKFSR -40°C ~ 85°C 32.768 kHz ±20ppm 6 pF
FKFSREIHM0.032768-T3 Fox FKFSR -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
FKFSXEIHM0.032768-T3 Fox FKFSX -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
FKT26EIBM0.032768 Fox FKT26 -40°C ~ 85°C 32.768 kHz ±20ppm 6 pF
FKT38EIHM0.032768 Fox FKT38 -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
