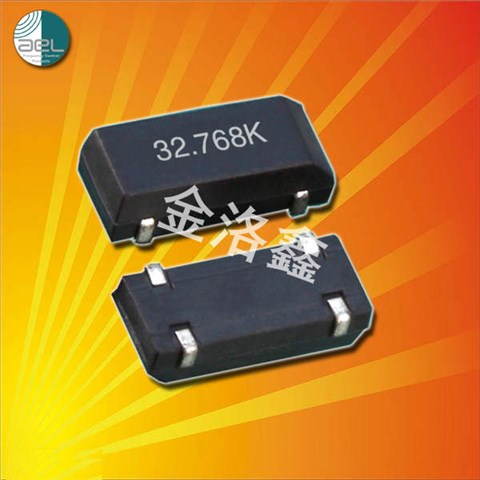

ELS25-32.768kHz-6-2-T,8038mm晶体,AEL时钟晶振,陶瓷晶振，英国进口晶振，AEL艾尔晶振，型号：ELS25系列，编码为：ELS25-32.768kHz-6-2-T，频率：32.768KHz，负载电容：6pF，频率容差：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：8.0x3.8x2.5mm，时钟晶体，四脚贴片晶振，石英晶振，无源晶振，8038晶振，SMD晶振，石英晶体谐振器，陶瓷晶振，具有超小型晶振，轻薄型晶振，高品质晶振，耐热及耐环境特点，应用于：移动通讯晶振，时钟晶振，仪器仪表晶振，测试设备晶振，汽车电子晶振，智能家居晶振等应用。

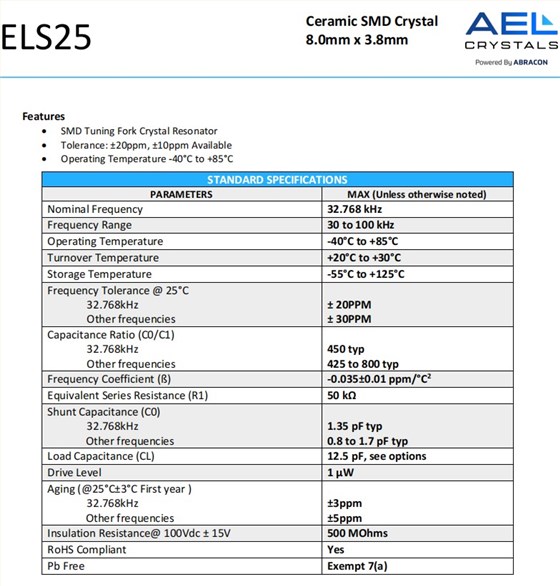

ELS25-32.768kHz-6-2-T,8038mm晶体,AEL时钟晶振,陶瓷晶振,参数表
PARAMETERS
MAX (Unless otherwise noted)
Nominal Frequency
32.768 kHz
Frequency Range
30 to 100 kHz
Operating Temperature
-40°C to +85°C
Turnover Temperature
+20°C to +30°C
Storage Temperature
-55°C to +125°C
Frequency Tolerance @ 25°C
32.768kHz
Other frequencies
± 20PPM
± 30PPM
Capacitance Ratio (C0/C1)
32.768kHz
Other frequencies
450 typ
425 to 800 typ
Frequency Coefficient (β)
-0.035±0.01 ppm/°C2
Equivalent Series Resistance (R1)
50 kΩ
Shunt Capacitance (C0)
32.768kHz
Other frequencies
1.35 pF typ
0.8 to 1.7 pF typ
Load Capacitance (CL)
12.5 pF, see options
Drive Level
1 μW
Aging (@25°C±3°C First year )
32.768kHz
Other frequencies
±3ppm
±5ppm
Insulation Resistance@ 100Vdc ± 15V
500 MOhms
RoHS Compliant
Yes
Pb Free
Exempt 7(a)
