X3AEEJNANF-26.000000-台湾Taitien晶振-1612mm-26MHz参数
Taitien晶振规格
单位
X3晶振
石英晶振基本条件
标准频率
f_nom
26MHz
标准频率，可提供其他频率
储存温度
T_stg
-55℃~+125℃
裸存
工作温度
T_use
-40℃~+105℃
标准温度
激励功率
DL
100μW Max.
推荐:1μW～100μW
频率公差
f_— l
频率温度特征
f_tem
±20ppm
超出标准的规格请联系我们.
负载电容
CL
12pF
超出标准说明,请联系我们.
串联电阻(ESR)
R1
150Ωmax
@25°C
频率老化
f_age
±3×10-6/year Max.
+25°C,第一年

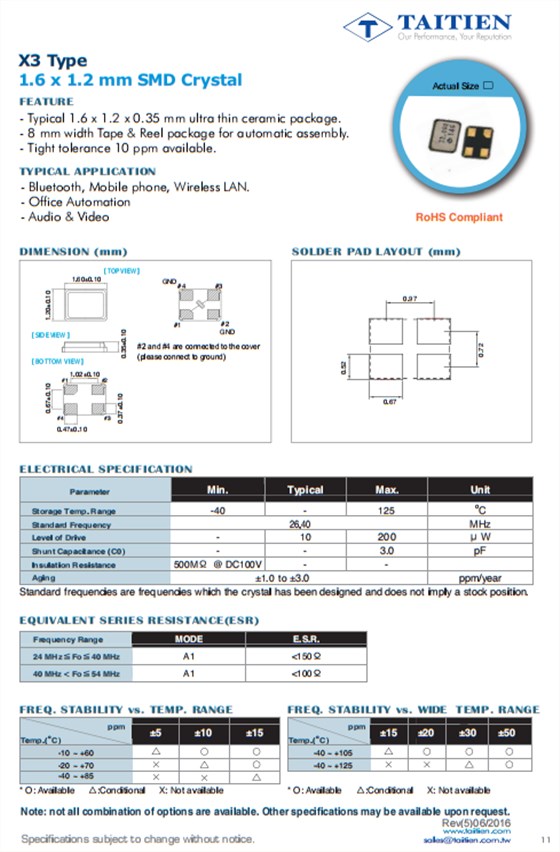

X3AEEJNANF-26.000000-台湾Taitien晶振-1612mm-26MHz 规格图
| 原厂编码 | 生产厂家 | 型号 | 频率 | 工作温度 | 尺寸 |
| X3AEEJNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-26.000000 | Taitien | X3 | 26MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-25.000000 | Taitien | X3 | 25MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-28.000000 | Taitien | X3 | 28MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-29.000000 | Taitien | X3 | 29MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-30.000000 | Taitien | X3 | 30MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEEJNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-26.000000 | Taitien | X3 | 26MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-26.000000 | Taitien | X3 | 26MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-26.000000 | Taitien | X3 | 26MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-29.000000 | Taitien | X3 | 29MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-27.320000 | Taitien | X3 | 27.32MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-30.000000 | Taitien | X3 | 30MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-30.000000 | Taitien | X3 | 30MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-33.000000 | Taitien | X3 | 33MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-40.000000 | Taitien | X3 | 40MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-40.000000 | Taitien | X3 | 40MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-40.000000 | Taitien | X3 | 40MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-48.000000 | Taitien | X3 | 48MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-48.000000 | Taitien | X3 | 48MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3AEELNANF-48.000000 | Taitien | X3 | 48MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-26.000000 | Taitien | X3 | 26MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-26.000000 | Taitien | X3 | 26MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-26.000000 | Taitien | X3 | 26MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-27.000000 | Taitien | X3 | 27MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-40.000000 | Taitien | X3 | 27.12MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-30.000000 | Taitien | X3 | 30MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-30.000000 | Taitien | X3 | 30MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-30.000000 | Taitien | X3 | 30MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-38.400000 | Taitien | X3 | 38.4MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-38.400000 | Taitien | X3 | 38.4MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-38.400000 | Taitien | X3 | 38.4MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-40.000000 | Taitien | X3 | 40MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-46.000000 | Taitien | X3 | 46MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-44.000000 | Taitien | X3 | 44MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-48.000000 | Taitien | X3 | 48MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-48.000000 | Taitien | X3 | 48MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEECNANF-52.000000 | Taitien | X3 | 52MHz | -20°C ~ 70°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-30.000000 | Taitien | X3 | 30MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-30.000000 | Taitien | X3 | 30MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-30.000000 | Taitien | X3 | 30MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-38.400000 | Taitien | X3 | 38.4MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-48.000000 | Taitien | X3 | 48MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-48.000000 | Taitien | X3 | 48MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEEJNANF-48.000000 | Taitien | X3 | 48MHz | -40°C ~ 105°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-26.000000 | Taitien | X3 | 26MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-26.000000 | Taitien | X3 | 26MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-26.000000 | Taitien | X3 | 26MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-27.000000 | Taitien | X3 | 27MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-27.120000 | Taitien | X3 | 27.12MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| X3LEELNANF-30.000000 | Taitien | X3 | 30MHz | -40°C ~ 85°C | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
