Q 26.0-JXS21-10-10/10-FU-WA-LF,JAUCH无源晶振,2016mm,26MHz

Q 26.0-JXS21-10-10/10-FU-WA-LF,JAUCH无源晶振,2016mm,26MHzQ 26.0-JXS21-10-10/10-FU-WA-LF,JAUCH无源晶振,2016mm,26MHz

产品简介

Q 26.0-JXS21-10-10/10-FU-WA-LF,JAUCH无源晶振,2016mm,26MHz,Q 26.0-JXS21-10-10/10-FU-WA-LF晶振,JAUCH无源晶振,欧美进口晶振,2016mm晶振,频率26MHz,工作温度-20~70°C,四脚贴片晶振,石英晶体谐振器,高精度晶振,物联网晶振,微处理器晶振,通讯设备晶振,智能电表晶振,数码相机晶振.




产品详情

Jau-1

Q 26.0-JXS21-10-10/10-FU-WA-LF,JAUCH无源晶振,2016mm,26MHz,Q 26.0-JXS21-10-10/10-FU-WA-LF晶振,JAUCH无源晶振,欧美进口晶振,2016mm晶振,频率26MHz,工作温度-20~70°C,四脚贴片晶振,石英晶体谐振器,高精度晶振,物联网晶振,微处理器晶振,通讯设备晶振,智能电表晶振,数码相机晶振.

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

Q 26.0-JXS21-10-10/10-FU-WA-LF,JAUCH无源晶振,2016mm,26MHz参数

型号 JXS21
频率 26MHz
频率公差 at 25 °C ± 10 ppm
频率稳定度 ± 10 ppm
负载电容CL 10pF
工作温度 -20°C ~ +70 °C
并联电容 Co <5 pF
串联电阻最大值 (ESR) 100ΩMax
储存温度 -40°C ~ +90 °C
最大驱动电平 100 µW
第一年老化 < ± 3 ppm

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

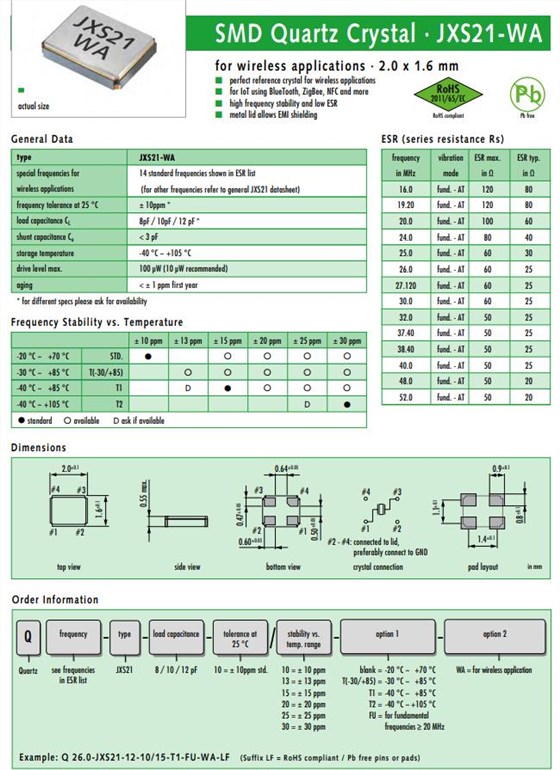

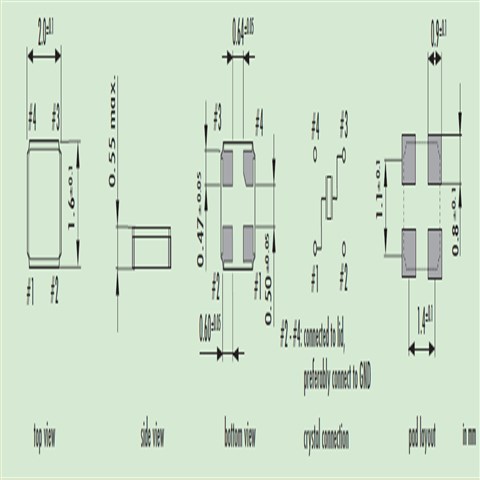

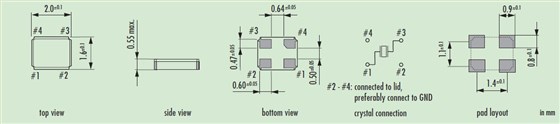

Q 26.0-JXS21-10-10/10-FU-WA-LF,JAUCH无源晶振,2016mm,26MHz规格图

jxs21 2016

Jauch晶振原厂编码 制造商 型号 频率 频率容差 负载电容 Operating Mode 工作温度
Q 26.0-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 38.4-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 38.4MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 38.4-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 38.4MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 38.4-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 38.4MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 38.4-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 38.4MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 40.0-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 40MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 40.0-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 40MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 40.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 40MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 40.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 40MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 32.0-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 32MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 32.0-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 32MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 32.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 32MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 32.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 32MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 19.2-JXS21-10-10/10-WA-LF Jauch晶振 JXS21-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS21-12-10/10-WA-LF Jauch晶振 JXS21-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS21-8-10/10-WA-LF Jauch晶振 JXS21-WA 19.2MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 19.2-JXS21-9-10/10-WA-LF Jauch晶振 JXS21-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 20MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 20.0-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-10-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS21-10-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS21-10-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 26.0-JXS21-12-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS21-12-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS21-12-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 26.0-JXS21-8-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS21-8-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS21-8-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 26.0-JXS21-9-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 26.0-JXS21-9-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 26.0-JXS21-9-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS21-10-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS21-10-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS21-10-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 27.12-JXS21-12-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS21-12-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS21-12-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 27.12-JXS21-8-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS21-8-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS21-8-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 27.12-JXS21-9-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS21-9-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 27.12-JXS21-9-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 38.4-JXS21-10-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 38.4MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 38.4-JXS21-10-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 38.4MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 38.4-JXS21-10-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 38.4MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 38.4-JXS21-12-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 38.4MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 38.4-JXS21-12-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 38.4MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 38.4-JXS21-12-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 38.4MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 38.4-JXS21-8-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS21-8-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS21-8-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 38.4MHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 38.4-JXS21-9-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 38.4MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 38.4-JXS21-9-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 38.4MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 38.4-JXS21-9-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 38.4MHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 40.0-JXS21-10-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 40MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 40.0-JXS21-10-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 40MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 40.0-JXS21-10-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 40MHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 40.0-JXS21-12-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 40MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 40.0-JXS21-12-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 40MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 40.0-JXS21-12-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 40MHz ±10ppm 12pF Fundamental -40°C ~ 85°C
Q 40.0-JXS21-8-10/15-T1-FU-WA-LF Jauch晶振 JXS21-WA 40MHz ±10ppm 8pF Fundamental -40°C ~ 85°C

JXS21-WA
