NKG晶振,S2SM20.0000F16M23-EXT,2016mm晶振,6G无线模块晶振特点:

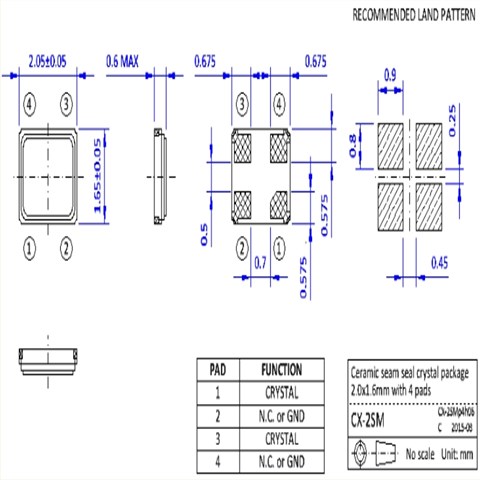

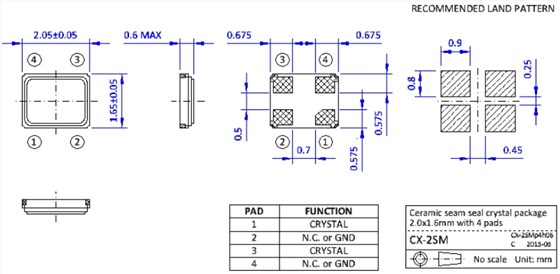

●微型包装尺寸2.0 x 1.6 x 0.5mm与4个垫
●优异的耐热性和抗震性
●真空密封,可靠性高,老化率低
●符合AEC-Q200标准的汽车级产品可供选择

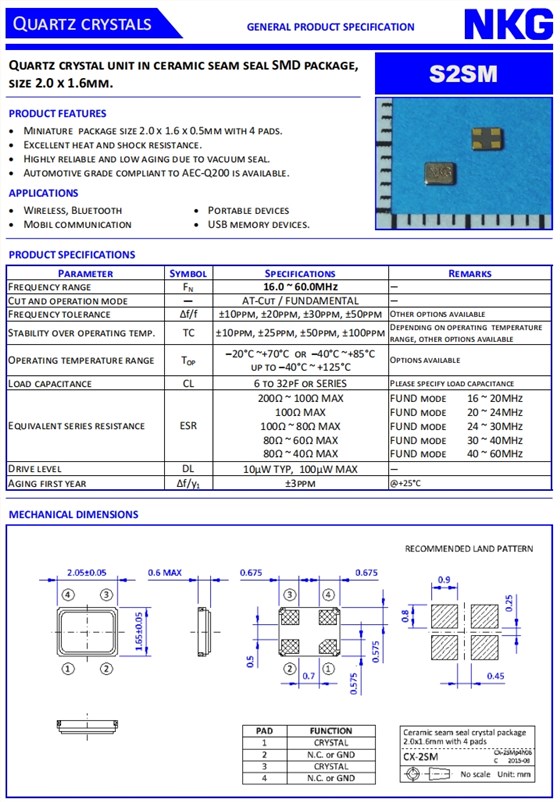

NKG晶振,S2SM20.0000F16M23-EXT,2016mm晶振,6G无线模块晶振规格表
Parameter | Symbol | Specifications | Remarks |
Frequency range | FN | 20MHz | - |
Cut and operation mode | - | FUNDAMENTAL | - |
Frequency tolerance | Δf/f | ±20ppm | Other options available |
Stability over operating temp. | TC | ±30ppm | Depending on operating temperaturerange, other options available |
Operating temperature range | TOP | –40°C ~+85°C | Options available |
Load capacitance | CL | 16pF | Please specify load capacitance |
Equivalent series resistance | ESR | 100Ω MAX | FUND MODE 20~ 24MHz |
Drive level | DL | 10µW TYP, 100µW MAX | - |
Aging first year | Δf/y1 | ±3ppm | @+25°C |
