美国艾尔西晶振,遥遥领先的北斗卫星晶振,HC49USM-FF3F18-8.000MHZ晶振

美国艾尔西晶振,遥遥领先的北斗卫星晶振,HC49USM-FF3F18-8.000MHZ晶振，ILSI晶振公司，外观完全使用金属材料封装的,产品本身采用全自动石英晶体检测仪,以及跌落,漏气等苛刻实验.产品本身具有高稳定性,高可靠性的石英晶体谐振器,焊接方面支持表面贴装,外观采用金属封装,具有充分的密封性能,晶振本身能确保其高可靠性,采用编带包装,可对应产品应用到自动贴片机告诉安装,满足无铅焊接的高温回流温度曲线要求.贴片晶振，HC49USM晶振，石英晶振，6G路由器晶振，无人机晶振，高品质晶振，低功耗晶振，智能穿戴设备晶振，北斗卫星晶振，无源晶振,二脚晶振。

美国艾尔西晶振,遥遥领先的北斗卫星晶振,HC49USM-FF3F18-8.000MHZ晶振

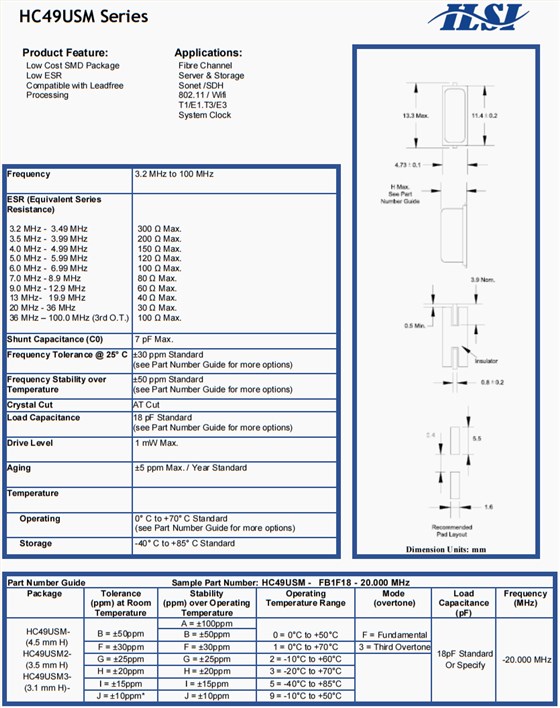

频率	3.2 MHz to 100 MHz
分流电容	7 pF Max.
频率容差	±30 ppm Standard(see Part Number Guide for more options)
温度范围内的频率稳定度	±50 ppm Standard(see Part Number Guide for more options)
水晶切割	AT Cut
负载电容	18 pF Standard(see Part Number Guide for more options)
驱动电平	1 mW Max.
老化	±5 ppm Max. / Year Standard
工作温度范围	0° C to +70° C Standard(see Part Number Guide for more options)
储存温度范围	-40 ° C to +85° C Standard

美国艾尔西晶振,遥遥领先的北斗卫星晶振,HC49USM-FF3F18-8.000MHZ晶振

原厂编码	生产商品牌	型号	频率	频率稳定度	频率容差	负载电容	工作温度范围
HC49US-FF3F18-8.000MHZ	ILSI	HC49US	8 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-27.000MHZ	ILSI	HC49USM	27 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-8.000MHZ	ILSI	HC49USM	8 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-3.6864MHZ	ILSI	HC49USM	3.6864 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF3F18-4.0960MHZ	ILSI	HC49US	4.096 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-18.4320MHZ	ILSI	HC49USM	18.432 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF3F18-11.0592MHZ	ILSI	HC49USM	11.0592 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-7.3728MHZ	ILSI	HC49USM	7.3728 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-20.000MHZ	ILSI	HC49USM	20 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-16.000MHZ	ILSI	HC49USM	16 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-14.7456MHZ	ILSI	HC49USM	14.7456 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-27.000MHZ	ILSI	HC49USM	27 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-16.000MHZ	ILSI	HC49USM	16 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-12.000MHZ	ILSI	HC49USM	12 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF3F18-16.000MHZ	ILSI	HC49US	16 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-20.000MHZ	ILSI	HC49US	20 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-10.000MHZ	ILSI	HC49US	10 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-24.000MHZ	ILSI	HC49US	24 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-12.000MHZ	ILSI	HC49US	12 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-25.000MHZ	ILSI	HC49US	25 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-11.0592MHZ	ILSI	HC49US	11.0592 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF5F18-4.9152MHZ	ILSI	HC49US	4.9152 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-25.000MHZ	ILSI	HC49US	25 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-4.0960MHZ	ILSI	HC49US	4.096 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-16.000MHZ	ILSI	HC49US	16 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-8.000MHZ	ILSI	HC49US	8 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-3.6864MHZ	ILSI	HC49US	3.6864 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-27.000MHZ	ILSI	HC49US	27 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-4.000MHZ	ILSI	HC49US	4 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF3F18-18.4320MHZ	ILSI	HC49US	18.432 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-14.31818MHZ	ILSI	HC49US	14.31818 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-7.3728MHZ	ILSI	HC49US	7.3728 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF5F18-14.31818MHZ	ILSI	HC49US	14.31818 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-10.000MHZ	ILSI	HC49US	10 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF3F18-10.000MHZ	ILSI	HC49USM	10 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-11.0592MHZ	ILSI	HC49USM	11.0592 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF3F18-6.000MHZ	ILSI	HC49USM	6 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-18.4320MHZ	ILSI	HC49USM	18.432 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-12.000MHZ	ILSI	HC49USM	12 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-25.000MHZ	ILSI	HC49USM	25 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-4.000MHZ	ILSI	HC49USM	4 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-3.6864MHZ	ILSI	HC49USM	3.6864 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-24.000MHZ	ILSI	HC49USM	24 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-4.000MHZ	ILSI	HC49USM	4 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-25.000MHZ	ILSI	HC49USM	25 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF3F18-27.000MHZ	ILSI	HC49US	27 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF5F18-6.000MHZ	ILSI	HC49US	6 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-7.3728MHZ	ILSI	HC49US	7.3728 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-6.1440MHZ	ILSI	HC49US	6.144 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-20.000MHZ	ILSI	HC49US	20 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-14.7456MHZ	ILSI	HC49US	14.7456 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-24.000MHZ	ILSI	HC49US	24 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-18.4320MHZ	ILSI	HC49US	18.432 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF3F18-4.9152MHZ	ILSI	HC49USM	4.9152 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-14.7456MHZ	ILSI	HC49USM	14.7456 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-20.000MHZ	ILSI	HC49USM	20 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-10.000MHZ	ILSI	HC49USM	10 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-8.000MHZ	ILSI	HC49USM	8 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-7.3728MHZ	ILSI	HC49USM	7.3728 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF3F18-4.9152MHZ	ILSI	HC49US	4.9152 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF5F18-11.0592MHZ	ILSI	HC49US	11.0592 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF3F18-14.7456MHZ	ILSI	HC49US	14.7456 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF5F18-12.000MHZ	ILSI	HC49US	12 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF3F18-3.6864MHZ	ILSI	HC49US	3.6864 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-6.000MHZ	ILSI	HC49US	6 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-4.000MHZ	ILSI	HC49US	4 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
