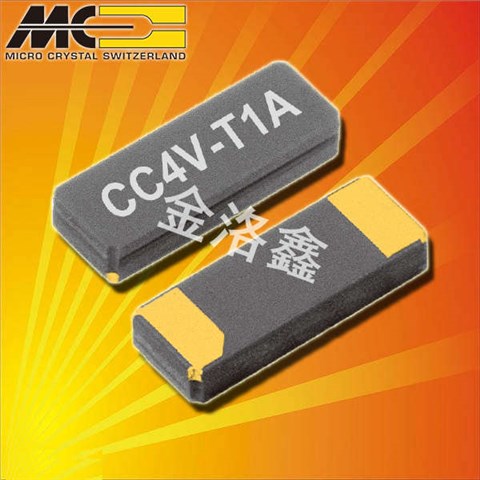

CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA无源晶体,美国晶振品牌微晶CC4V-T1A,Micro Crystal,SMD晶振,陶瓷晶振,无源晶体,音叉晶体,型号CC4V-T1A,编码CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA是一款陶瓷面贴片型的贴片晶体，采用高超的生产技术制作而成,具备良好的可靠性能,适合用于计量工业,汽车,卫生保健,医疗植入,严酷的环境下,车载专用等领域.
CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC音叉晶体的真空封装技术：是指石英晶振在真空封装区域内进行封装.1.防止外界气体进入组件体内受到污染和增加应力的产生；2.使晶振组件在真空下电阻减小；3.气密性高.此技术为研发及生产超小型、超薄型石英晶振必须攻克的关键技术之一.CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA无源晶体,美国晶振品牌微晶CC4V-T1A
CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA晶振
|
32.768KHZ |
|||
|
+25°C对于超出标准的规格说明, |
|||
|
/ |
|||
|
12.5PF |
|||

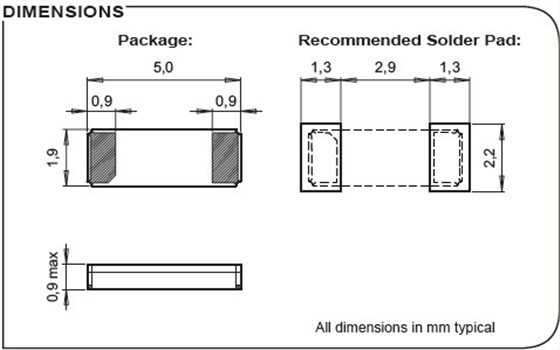

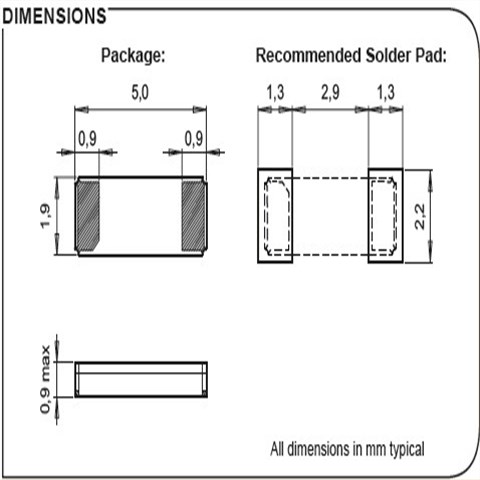

CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA无源晶体,美国晶振品牌微晶CC4V-T1A 尺寸图
粘合剂:
请勿使用可能导致无源石英晶振所用的封装材料,终端,组件,玻璃材料以及气相沉积材料等受到腐蚀的胶粘剂。（比如,氯基胶粘剂可能腐蚀一个晶振的金属“盖”,从而破坏密封质量,降低性能。）卤化合物:请勿在卤素气体环境下使用晶振。即使少量的卤素气体,比如在空气中的氯气内或封装所用金属部件内,都可能产生腐蚀。同时,请勿使用任何会释放出卤素气体的树脂。静电:过高的静电可能会损坏贴片晶振,请注意抗静电条件。请为容器和封装材料选择导电材料。在处理的时候,请使用电焊枪和无高电压泄漏的测量电路,并进行接地操作。CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA无源晶体,美国晶振品牌微晶CC4V-T1A
PCB设计指导:
(1) 在进口晶振理想情况下,机械蜂鸣器应安装在一个独立于压电石英晶体器件的PCB板上。如果您安装在同一个PCB板上,最好使用余量或切割PCB。当应用于PCB板本身或PCB板体内部时,机械振动程度有所不同。建议遵照内部板体特性。
(2) 在设计时请参考相应的推荐封装。
(3) 在使用焊料助焊剂时,按JIS标准(JIS C 60068-2-20/IEC 60,068-2-20).来使用。
(4) 请按JIS标准(JIS Z 3282, Pb 含量 1000ppm, 0.1wt% 或更少)来使用无铅焊料。
存储事项:
(1) 在更高或更低温度或高湿度环境下长时间保存SMD晶振时,会影响频率稳定性或焊接性。请在正常温度和湿度环境下保存这些石英晶振产品,并在开封后尽可能进行安装,以免长期储藏。 正常温度和湿度： 温度：+15°C 至 +35°C,湿度 25 % RH 至 85 % RH（请参阅“测试点JIS C 60068-1 / IEC 60068-1的标准条件”章节内容）。
(2) 请仔细处理内外盒与卷带。外部压力会导致卷带受到损坏。CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA无源晶体,美国晶振品牌微晶CC4V-T1A
| 制造商零件编号 | 制造商 | 描述 | 产品类型 | 频率 | 频率稳定性 | 容差 | 最小工作温度 | 最大工作温度 |
| CM7V-T1A-32.768k-6pF-20PPM-TB-QA | Micro Crystal | 晶体 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 125 C | |
| MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au | Micro Crystal | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz | 10 PPM | - 40 C | + 85 C | |
| OV-7605-C8-32.768kHz-20PPM-TA-QC | Micro Crystal | 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C | Clock Oscillators | 32.768 kHz | - 40 C | + 85 C | ||
| CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC | Micro Crystal | 晶体 1.8432 MHz 10.0 pF 500 PPM -55/+125C | Crystals | 1.8432 MHz | 500 PPM | - 55 C | + 125 C | |
| OM-7604-C7-32.768kHz-20PPM-TB-QC | Micro Crystal | 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C | Clock Oscillators | 32.768 kHz | - 40 C | + 125 C | ||
| CC4V-T1A-32.768k-9pF-20PPM-TC-QA | Micro Crystal | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 55 C | + 125 C | |
| MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au | Micro Crystal | 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz | 10 PPM | - 40 C | + 85 C | |
| OV-7604-C7-32.768k-10PPM-TB-QA | Micro Crystal | 标准时钟振荡器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200 | Clock Oscillators | 32.768 kHz | - 40 C | + 125 C | ||
| OV-7604-C7-32.768k-20PPM-TA-QA | Micro Crystal | 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C | Clock Oscillators | 32.768 kHz | - 40 C | + 85 C | ||
| CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC | Micro Crystal | 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals | 1 MHz | 100 PPM | - 40 C | + 85 C | |
| CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC | Micro Crystal | 晶体 153.600 kHz 9.0 pF +/-30 PPM -40/+85C | Crystals | 153.6 kHz | 30 PPM | - 40 C | + 85 C | |
| CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC | Micro Crystal | 晶体 307.200 kHz 4.0 pF 100 PPM -55/+125C | Crystals | 307.2 kHz | 100 PPM | - 55 C | + 125 C | |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC | Micro Crystal | 晶体 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals | 1.8432 MHz | 100 PPM | - 40 C | + 85 C | |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC | Micro Crystal | 晶体 1.8432 MHz 10.0 pF 100 PPM -55/+125C | Crystals | 1.8432 MHz | 100 PPM | - 55 C | + 125 C | |
| CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶体 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals | 40 kHz | 20 PPM | - 40 C | + 85 C | |
| CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro Crystal | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 125 C | |
| CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro Crystal | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 55 C | + 125 C | |
| CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC | Micro Crystal | 晶体 32.768 kHz 9.0 pF +/-10 PPM -55/+125C | Crystals | 32.768 kHz | 10 PPM | - 55 C | + 125 C | |
| CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz | 100 PPM | - 40 C | + 85 C | |
| CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC | 瑞士Microcrystal晶振 | 晶体 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C | Crystals | 1.8432 MHz | 500 PPM | - 40 C | + 85 C | |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC | Micro Crystal | 晶体 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals | 1.2288 MHz | 100 PPM | - 40 C | + 85 C | |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC | Micro Crystal | 晶体 1.2288 MHz 10.0 pF 100 PPM -55/+125C | Crystals | 1.2288 MHz | 100 PPM | - 55 C | + 125 C | |
| CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC | Micro Crystal | 晶体 40.000 kHz 9.0 pF +/-30 PPM -55/+125C | Crystals | 40 kHz | 30 PPM | - 55 C | + 125 C | |
| CC4V-T1A-32.768k-9pF-20PPM-TA-QA | Micro Crystal | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro Crystal | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au | Micro Crystal | 晶体 32.768 kHz 8.2 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro Crystal | 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals | 32.768 kHz | 20 PPM | - 55 C | + 125 C | |
| CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC | Micro Crystal | 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| OV-7604-C7-32.768kHz-10PPM-TA-QC | Micro Crystal | 标准时钟振荡器32.768 kHz +/-10 PPM -40/+85C | Clock Oscillators | 32.768 kHz | - 40 C | + 85 C | ||
| OV-0100-C7-100.000kHz-50PPM-TA-QC | Micro Crystal | 标准时钟振荡器 100.0 kHz +/-50 PPM -40/+85C | Clock Oscillators | 100 kHz | - 40 C | + 85 C | ||
| CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC | Micro Crystal | 晶体 307.200 kHz 4.0 pF +/-100 PPM -40/+85C | Crystals | 307.2 kHz | 100 PPM | - 40 C | + 85 C | |
| CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC | Micro Crystal | 晶体 32.768 kHz 12.5 pF +/-30 PPM -40/+85C | Crystals | 32.768 kHz | 30 PPM | - 40 C | + 85 C | |
| CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC | Micro Crystal | 晶体 32.768 kHz 9.0 pF +/-30 PPM -40/+85C | Crystals | 32.768 kHz | 30 PPM | - 40 C | + 85 C | |
| CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC | Micro Crystal | 晶体 32.768 kHz 9.0 pF +/-15 PPM -40/+85C | Crystals | 32.768 kHz | 15 PPM | - 40 C | + 85 C | |
| CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC | Micro Crystal | 晶体 32.768 kHz 9.0 pF +/-30 PPM -55/+125C | Crystals | 32.768 kHz | 30 PPM | - 55 C | + 125 C |
