NKG晶振,S4M27.0000F16E1Y-EXT,4025mm晶振,6G通信设备晶振特点:

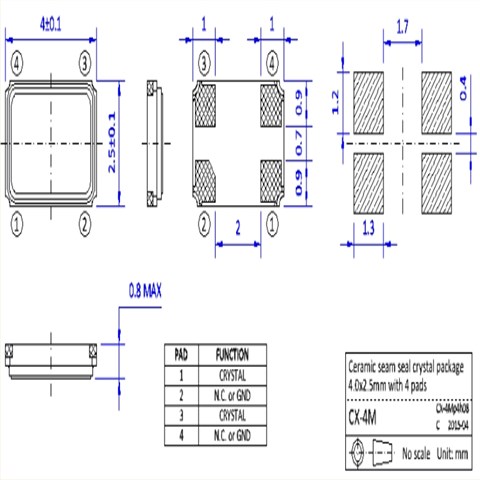

●微型包装尺寸4.0 x 2.5x 0.7mm与4个垫
●优异的耐热性和抗震性
●高可靠的缝封封装,低老化
●符合AEC-Q200标准的汽车级产品可供选择

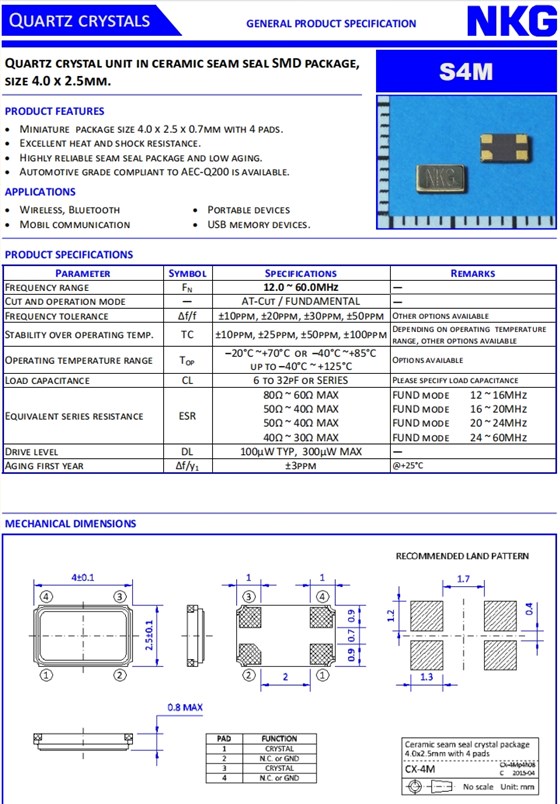

NKG晶振,S4M27.0000F16E1Y-EXT,4025mm晶振,6G通信设备晶振规格表
Parameter | Symbol | Specifications | Remarks |
Frequency range | FN | 27MHz | - |
Cut and operation mode | - | FUNDAMENTAL | - |
Frequency tolerance | Δf/f | ±10ppm | Other options available |
Stability over operating temp. | TC | ±15ppm | Depending on operating temperaturerange, other options available |
Operating temperature range | TOP | –20°C ~+70°C | Options available |
Load capacitance | CL | 16pF | Please specify load capacitance |
Equivalent series resistance | ESR | 40Ω~30Ω MAX | FUND MODE 24~ 60MHz |
Drive level | DL | 100µW TYP, 300µW MAX | - |
Aging first year | Δf/y1 | ±3ppm | @+25°C |
