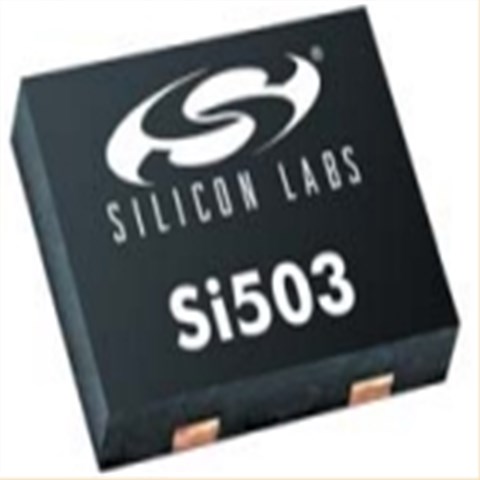

Silicon品牌,503JBA48M0000CAG,6G网络终端晶振,Silicon晶振,Si503进口晶振,503JBA48M0000CAG晶振,有源晶振,欧美晶振,3225mm贴片晶振,贴片石英晶振,频率48MHz,电压3.3V,频率稳定性30ppm,工作温度-40~85°C,高稳定性晶振,小体积晶振,高品质晶振,6G网络终端晶振,个人电脑外围设备晶振,IP摄像机晶振,显示和控制面板晶振.
Silicon品牌,503JBA48M0000CAG,6G网络终端晶振特点：
-宽频率范围:32KHz至100MHz
-有关100 MHz以上的频率，请联系Silicon Labs
-Si501单频w/ OE
-Si502双频w/ OE/FS
-Si503四频w/ FS
-±20/30/ 50ppm频率稳定性，包括10年老化
-LVCMOS输出
-低周期抖动
-低功耗
-连续供电电压范围:+1.71 V ~ +3.63 V
-用户可选择的升降选项
-无故障启动和停止
-短期稳定性好，长期老化性好
-行业标准脚印:2x2.5, 2.5x3.2, 3.2x5 mm
-符合RoHS标准，无铅
-缩短交货期:<2周
-20至+70°C:扩展商用
-40至+85°C:工业
-Si50x系列还包括Si504，用于电路可编程性(参见Si504数据表)
Silicon品牌,503JBA48M0000CAG,6G网络终端晶振规格表
Parameters
Condition
Si503
Frequency Range
48MHZ
Frequency Stability
±30ppm
Operating Temperature
ExtendedCommercialgrade
-20°C~+70°C
Extended commercial
-40°C~+85°C
Storage Temperature
-55°C~+125°C
Supply Voltage
3.3V
Supply Current
CL=4 pF, 3.3 VDD, FCLK=1.0 MHz, lowpower option
2.5 mA Max
CL=4 pF, 3.3 VDD, FCLK=100 MHz, lowpower option
6.5 mA Max
CL=4 pF, 3.3 VDD, FCLK=1.0 MHz, lowjitter option
4.9 mA Max
CL=4 pF, 3.3 VDD, FCLK=100 MHz, lowjitter option
8.9 mA Max
OE Internal PullResistor
Ordering option
Rise and Fall Times 1
1stordering option code2: A and HZ0=25Ω@ 3.3 V
1.2ns Max
Startup Time2
From VDDcrossing 1.71 V to firstclock output
4ms Max
1st ordering option code: A and HIOH=–4 mA
0.90 xVDD Min
Output Low Voltage
1st ordering option code: A and HIOH=+4 mA
0.10 xVDDMax
Duty Cycle
Drive strength selected such thattRise/tFall (20% to 80%)<10% ofperiod
45% Min ~55% Max
Period Jitter
100 MHz, Low Jitter Option1stordering option code: H
1.6ps RMS Max
100 MHz, Low Power Option1stordering option code: A
1.9 ps RMS Max
Phase Jitter
1.3 ps RMS Max
3.2 ps RMS Max

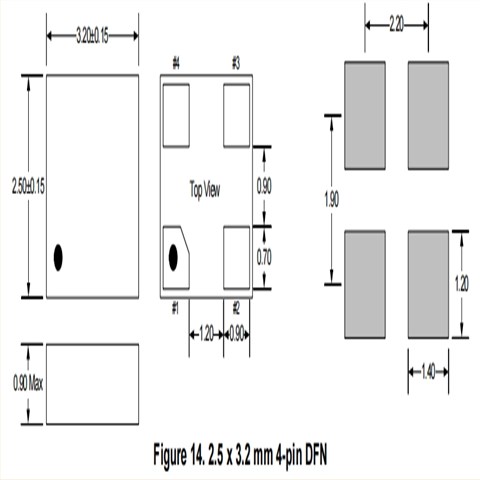

Silicon品牌,503JBA48M0000CAG,6G网络终端晶振尺寸图
| 原厂代码 | 品牌 | 型号 | 频率 | 电压 | 频率稳定度 | 尺寸 |
| 501AAA27M0000DAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA27M0000DAG | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA100M000CAG | Silicon Labs | Si501 | 100MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA100M000BAG | Silicon Labs | Si501 | 100MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCAM032768BAF | Silicon Labs | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCAM032768DAG | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCAM032768DAG | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JAA24M0000DAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501BAA16M0000DAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JAA24M0000CAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA27M0000CAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA25M0000BAF | Silicon Labs | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JAA40M0000CAF | Silicon Labs | Si501 | 40MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA24M0000BAF | Silicon Labs | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501EAA48M0000CAF | Silicon Labs | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA27M0000BAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501EAA48M0000BAF | Silicon Labs | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JAA25M0000BAF | Silicon Labs | Si501 | 25MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BAA50M0000BAF | Silicon Labs | Si501 | 50MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501AAA50M0000CAF | Silicon Labs | Si501 | 50MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501EAA48M0000DAG | Silicon Labs | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA25M0000DAG | Silicon Labs | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501HCA27M0000DAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501ABA8M00000BAF | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCA12M0000DAF | Silicon Labs | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA24M0000DAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA24M0000BAG | Silicon Labs | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCA16M0000BAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA24M0000CAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCA26M0000BAF | Silicon Labs | Si501 | 26MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JAA25M0000BAG | Silicon Labs | Si501 | 25MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCA16M0000CAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501EAA48M0000CAG | Silicon Labs | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501BAA16M0000BAG | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BAA16M0000CAG | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JAA24M0000BAG | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501AAA27M0000BAG | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501ACA10M0000CAF | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JAA40M0000BAG | Silicon Labs | Si501 | 40MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501ACA10M0000BAF | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA10M0000BAF | Silicon Labs | Si501 | 10MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCA12M0000BAF | Silicon Labs | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA25M0000CAF | Silicon Labs | Si501 | 25MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCA27M0000BAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501AAA50M0000BAG | Silicon Labs | Si501 | 50MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501ABA8M00000BAG | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCA27M0000DAG | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501ABA8M00000CAG | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA10M0000BAG | Silicon Labs | Si501 | 10MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501ACA10M0000BAG | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA20M0000CAG | Silicon Labs | Si501 | 20MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501BCA16M0000BAG | Silicon Labs | Si501 | 16MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCA16M0000CAG | Silicon Labs | Si501 | 16MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA100M000DAF | Silicon Labs | Si501 | 100MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA100M000CAF | Silicon Labs | Si501 | 100MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA100M000BAF | Silicon Labs | Si501 | 100MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCAM032768DAF | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501HCAM032768DAF | Silicon Labs | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCAM032768CAF | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501BCAM032768BAF | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCAM032768CAF | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501BCAM032768CAG | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 500DLAA125M000ACF | Silicon Labs | Si500D | 125MHz | 2.5V | ±150ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 500DLAA200M000ACF | Silicon Labs | Si500D | 200MHz | 2.5V | ±150ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 501BCAM032768BAG | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCAM032768DAF | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCAM032768BAF | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCAM032768BAG | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCAM032768CAG | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCAM032768BAG | Silicon Labs | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCAM032768CAF | Silicon Labs | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCAM032768CAG | Silicon Labs | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCAM032768DAG | Silicon Labs | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501ABA8M00000CAF | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501ABA8M00000DAF | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501ABA8M00000DAG | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501ACA10M0000CAG | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501ACA10M0000DAF | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501ACA10M0000DAG | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA10M0000CAF | Silicon Labs | Si501 | 10MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA10M0000CAG | Silicon Labs | Si501 | 10MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA10M0000DAF | Silicon Labs | Si501 | 10MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA10M0000DAG | Silicon Labs | Si501 | 10MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501HCA12M0000BAG | Silicon Labs | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCA12M0000CAF | Silicon Labs | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCA12M0000CAG | Silicon Labs | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCA12M0000DAG | Silicon Labs | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501BCA16M0000DAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501BCA16M0000DAG | Silicon Labs | Si501 | 16MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501BAA16M0000BAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BAA16M0000CAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501BAA16M0000DAG | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA20M0000BAF | Silicon Labs | Si501 | 20MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA20M0000BAG | Silicon Labs | Si501 | 20MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA20M0000CAF | Silicon Labs | Si501 | 20MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA20M0000DAF | Silicon Labs | Si501 | 20MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA20M0000DAG | Silicon Labs | Si501 | 20MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA24M0000CAF | Silicon Labs | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA24M0000CAG | Silicon Labs | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA24M0000DAF | Silicon Labs | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA24M0000DAG | Silicon Labs | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JAA24M0000BAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JAA24M0000CAG | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JAA24M0000DAG | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA24M0000BAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA24M0000BAG | Silicon Labs | Si501 | 24MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA24M0000CAG | Silicon Labs | Si501 | 24MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA24M0000DAG | Silicon Labs | Si501 | 24MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA25M0000BAG | Silicon Labs | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501AAA25M0000CAF | Silicon Labs | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA25M0000CAG | Silicon Labs | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA25M0000DAF | Silicon Labs | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JAA25M0000CAF | Silicon Labs | Si501 | 25MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JAA25M0000CAG | Silicon Labs | Si501 | 25MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JAA25M0000DAF | Silicon Labs | Si501 | 25MHz | 3.3V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JAA25M0000DAG | Silicon Labs | Si501 | 25MHz | 3.3V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
