NKG Crystal,S1M24.0000F18E1Y-EXT,1612mm晶振,6G移动通信晶振

产品简介

NKG Crystal,S1M24.0000F18E1Y-EXT,1612mm晶振,6G移动通信晶振,NKG Crystal,S1M无源晶振,石英晶体谐振器,S1M24.0000F18E1Y-EXT晶振,进口晶振,四脚贴片晶振,1612mm晶振,SMD晶体,频率24MHz,负载18pF,频率容差10ppm,工作温度-20~70°C,超小型晶振,高可靠性晶振,低老化晶振,6G移动通信晶振,蓝牙音响耳机晶振,便携式设备晶振,USB存储设备晶振.

产品详情

NKG Crystal,S1M24.0000F18E1Y-EXT,1612mm晶振,6G移动通信晶振,NKG Crystal,S1M无源晶振,石英晶体谐振器,S1M24.0000F18E1Y-EXT晶振,进口晶振,四脚贴片晶振,1612mm晶振,SMD晶体,频率24MHz,负载18pF,频率容差10ppm,工作温度-20~70°C,超小型晶振,高可靠性晶振,低老化晶振,6G移动通信晶振,蓝牙音响耳机晶振,便携式设备晶振,USB存储设备晶振.

NKG Crystal,S1M24.0000F18E1Y-EXT,1612mm晶振,6G移动通信晶振特点：

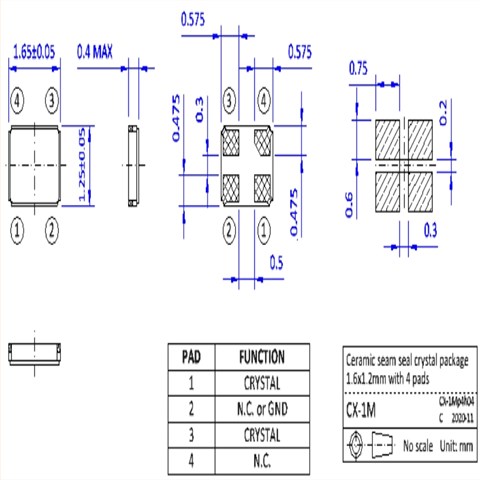

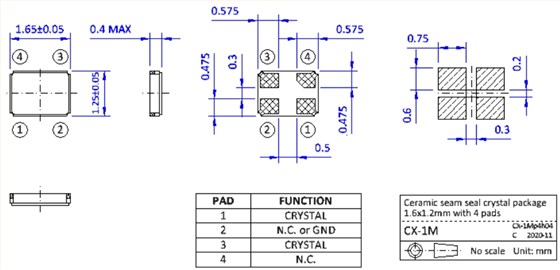

●微型包装尺寸1.6 x 1.2 x 0.4mm与4个垫

●优异的耐热性和抗震性

●真空密封，可靠性高，老化率低

●符合AEC-Q200标准的汽车级产品可供选择

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

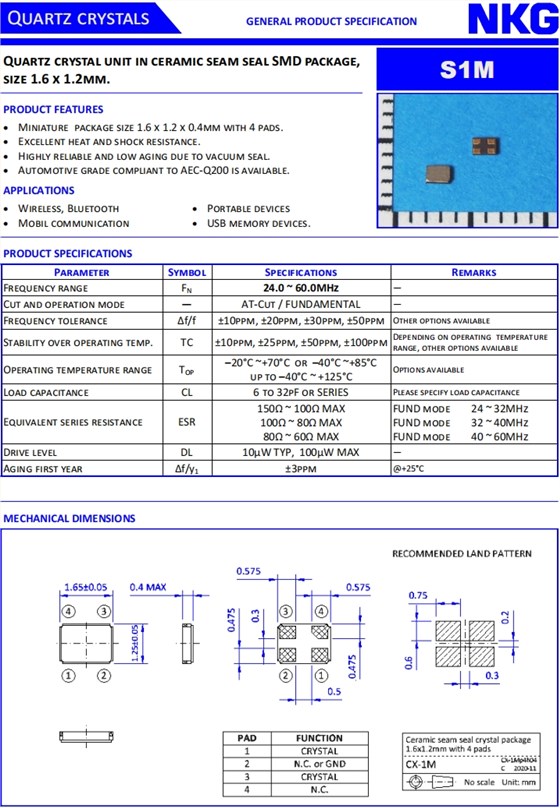

NKG Crystal,S1M24.0000F18E1Y-EXT,1612mm晶振,6G移动通信晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	24MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±10ppm	Other options available
Stability over operating temp.	TC	±15ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–20°C ~+70°C	Options available
Load capacitance	CL	18pF	Please specify load capacitance
Equivalent series resistance	ESR	150Ω ~ 100Ω MAX	FUND mode 24 ~ 32MHz
Drive level	DL	10µW TYP, 100µW MAX	-
Aging first year	Δf/y1	±3ppm	@+25°C
