M1004S050 12.288000,麦特伦皮石英晶振,12.288MHz,M1004S050 12.288000晶振,麦特伦皮石英晶振,频率12.288MHz,HC-49S插件晶振,负载15pf,工作温度-40~85°C,抗冲击晶振,环保晶振,家用电视机顶盒晶振,家电影音系统晶振,摄像头晶振,物联网晶振,数字电表晶振.
M1004S050 12.288000,麦特伦皮石英晶振,12.288MHz 特征
•电阻焊接(HC-49S)
•AT-Cut基本和泛音模式
•扫描石英可选
M1004S050 12.288000,麦特伦皮石英晶振,12.288MHz参数
项目
数值
条件
频率
12.288MHz
频率公差
±30PPM
@ +25°C, see ordering information.
频率稳定性
±50PPM
Over the operating temperature range
老化
±5ppm Max
First year @ +25ºC.
工作温度
-40°Cto+85°C
See part numbering guide for options.
保存温度
-55°Cto+125°C
并联电容(C0)
7pF Max
负载电容 (CL)
15pF
激励功率
500μW Max
绝缘电阻
500MΩ
串联电阻ESR
80Ω
AT-Cut Fundamental.

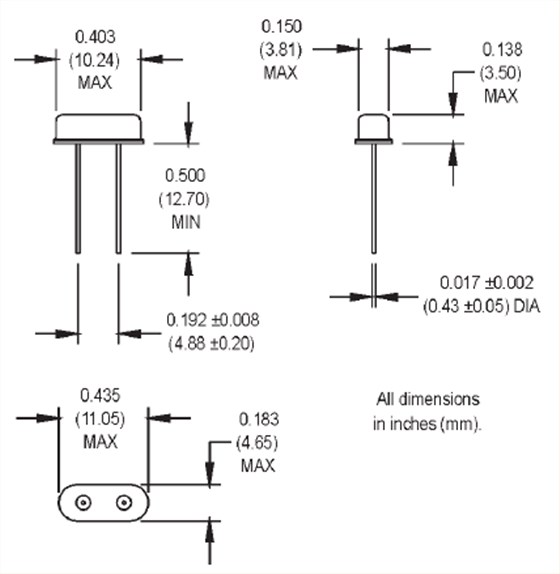

M1001S066 25.000000,ATSM-49-R 贴片晶振,25MHz尺寸图
| 原厂编码 | 型号 | 频率稳定度 | 频率(MHz) | 频率容差 | 老化 | 包装 | 工作温度 | 负载 |
| M1004S050 12.288000 | ATS-49 series | ±50 ppm | 12.288 | ±30 ppm | ±5 ppm | HC-49S | -40?C to +85?C | 15 pF |
| M1004S051 15.000000 | ATS-49 series | ±50 ppm | 15 | ±30 ppm | ±5 ppm | HC-49S | -40?C to +85?C | 15 pF |
| M1004S156 16.000000 | ATS-49 series | ±50 ppm | 16 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 17.000000 | ATS-49 series | ±50 ppm | 17 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 18.000000 | ATS-49 series | ±50 ppm | 18 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 19.000000 | ATS-49 series | ±50 ppm | 19 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 20.000000 | ATS-49 series | ±50 ppm | 20 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 21.000000 | ATS-49 series | ±50 ppm | 21 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 22.000000 | ATS-49 series | ±50 ppm | 22 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 23.000000 | ATS-49 series | ±50 ppm | 23 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 24.000000 | ATS-49 series | ±50 ppm | 24 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 25.000000 | ATS-49 series | ±50 ppm | 25 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 26.000000 | ATS-49 series | ±50 ppm | 26 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 27.000000 | ATS-49 series | ±50 ppm | 27 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 28.000000 | ATS-49 series | ±50 ppm | 28 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 29.000000 | ATS-49 series | ±50 ppm | 29 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 30.000000 | ATS-49 series | ±50 ppm | 30 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 31.000000 | ATS-49 series | ±50 ppm | 31 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 32.000000 | ATS-49 series | ±50 ppm | 32 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 33.000000 | ATS-49 series | ±50 ppm | 33 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 34.000000 | ATS-49 series | ±50 ppm | 34 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 35.000000 | ATS-49 series | ±50 ppm | 35 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 36.000000 | ATS-49 series | ±50 ppm | 36 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
