SXT22412DD07-37.400M|SUNTSU进口晶振|2520mm|37.4MHz 特征
•±10 ppm /±10 ppm(公差/稳定)可用
•超小型封装
•AT-Cut基本原理
SXT22412DD07-37.400M|SUNTSU进口晶振|2520mm|37.4MHz 参数
项目
数值
附注
频率
37.4MHz
AT-Cut Fundamental.
频率公差 @ +25°C
±20PPM
See part numbering guide for options.
频率稳定性
±20PPM
See part numbering guide for options.
频率稳定性与老化
±2ppm Max
First year @ +25ºC.
工作温度
0°C to +70°C
See part numbering guide for options.
保存温度
-40°C to +125°C
并联电容 (C0)
5pF Max
负载电容 (CL)
12pF
See part numbering guide for options.
激励功率
100μW Max
绝缘电阻
500MΩ
@ 100VDC ± 15V.
ESR-16.000MHz ~ 20.999MHz
60Ω
AT-Cut Fundamental.

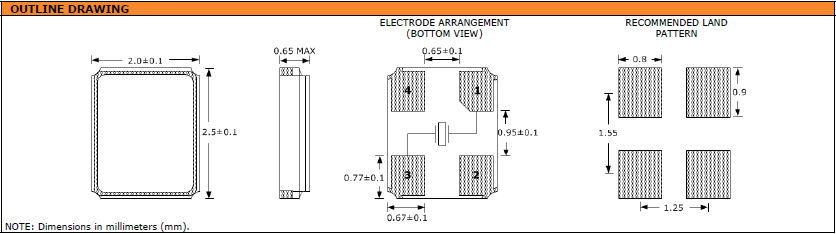

SXT22412DD07-37.400M|SUNTSU进口晶振|2520mm|37.4MHz 尺寸图
| SUNTSU晶振编码 | 尺寸 | 负载 | 频率公差 | 频率稳定度 | 工作温度 | 频率 |
| SXT22412DD07-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | 0°C - +70°C | 32.000M |
| SXT22412DD07-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | 0°C - +70°C | 37.400M |
| SXT22412DD07-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | 0°C - +70°C | 38.400M |
| SXT22412DD07-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | 0°C - +70°C | 40.000M |
| SXT22412DD07-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | 0°C - +70°C | 50.000M |
| SXT22412DD16-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 12.000M |
| SXT22412DD16-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 12.288M |
| SXT22412DD16-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 13.000M |
| SXT22412DD16-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 13.560M |
| SXT22412DD16-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 14.31818M |
| SXT22412DD16-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 14.7456M |
| SXT22412DD16-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 16.000M |
| SXT22412DD16-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 16.384M |
| SXT22412DD16-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 18.432M |
| SXT22412DD16-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 19.200M |
| SXT22412DD16-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 20.000M |
| SXT22412DD16-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 22.1184M |
| SXT22412DD16-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 24.000M |
| SXT22412DD16-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 25.000M |
| SXT22412DD16-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 26.000M |
| SXT22412DD16-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 27.000M |
| SXT22412DD16-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 27.120M |
| SXT22412DD16-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 30.000M |
| SXT22412DD16-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 32.000M |
| SXT22412DD16-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 37.400M |
| SXT22412DD16-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 38.400M |
| SXT22412DD16-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 40.000M |
| SXT22412DD16-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +60°C | 50.000M |
| SXT22412DD17-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 12.000M |
| SXT22412DD17-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 12.288M |
| SXT22412DD17-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 13.000M |
| SXT22412DD17-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 13.560M |
| SXT22412DD17-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 14.31818M |
| SXT22412DD17-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 14.7456M |
| SXT22412DD17-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 16.000M |
| SXT22412DD17-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 16.384M |
| SXT22412DD17-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 18.432M |
| SXT22412DD17-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 19.200M |
| SXT22412DD17-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 20.000M |
| SXT22412DD17-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 22.1184M |
| SXT22412DD17-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 24.000M |
| SXT22412DD17-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 25.000M |
| SXT22412DD17-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 26.000M |
| SXT22412DD17-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 27.000M |
| SXT22412DD17-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 27.120M |
| SXT22412DD17-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 30.000M |
| SXT22412DD17-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 32.000M |
| SXT22412DD17-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 37.400M |
| SXT22412DD17-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 38.400M |
| SXT22412DD17-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 40.000M |
| SXT22412DD17-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -10°C - +70°C | 50.000M |
| SXT22412DD27-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 12.000M |
| SXT22412DD27-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 12.288M |
| SXT22412DD27-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 13.000M |
| SXT22412DD27-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 13.560M |
| SXT22412DD27-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 14.31818M |
| SXT22412DD27-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 14.7456M |
| SXT22412DD27-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 16.000M |
| SXT22412DD27-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 16.384M |
| SXT22412DD27-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 18.432M |
| SXT22412DD27-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 19.200M |
| SXT22412DD27-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 20.000M |
| SXT22412DD27-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 22.1184M |
| SXT22412DD27-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 24.000M |
| SXT22412DD27-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 25.000M |
| SXT22412DD27-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 26.000M |
| SXT22412DD27-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 27.000M |
| SXT22412DD27-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 27.120M |
| SXT22412DD27-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 30.000M |
| SXT22412DD27-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 32.000M |
| SXT22412DD27-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 37.400M |
| SXT22412DD27-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 38.400M |
| SXT22412DD27-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 40.000M |
| SXT22412DD27-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -20°C - +70°C | 50.000M |
| SXT22412DD38-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 12.000M |
| SXT22412DD38-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 12.288M |
| SXT22412DD38-13.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 13.000M |
| SXT22412DD38-13.560M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 13.560M |
| SXT22412DD38-14.31818M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 14.31818M |
| SXT22412DD38-14.7456M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 14.7456M |
| SXT22412DD38-16.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 16.000M |
| SXT22412DD38-16.384M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 16.384M |
| SXT22412DD38-18.432M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 18.432M |
| SXT22412DD38-19.200M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 19.200M |
| SXT22412DD38-20.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 20.000M |
| SXT22412DD38-22.1184M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 22.1184M |
| SXT22412DD38-24.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 24.000M |
| SXT22412DD38-25.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 25.000M |
| SXT22412DD38-26.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 26.000M |
| SXT22412DD38-27.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 27.000M |
| SXT22412DD38-27.120M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 27.120M |
| SXT22412DD38-30.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 30.000M |
| SXT22412DD38-32.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 32.000M |
| SXT22412DD38-37.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 37.400M |
| SXT22412DD38-38.400M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 38.400M |
| SXT22412DD38-40.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 40.000M |
| SXT22412DD38-50.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -30°C - +85°C | 50.000M |
| SXT22412DD48-12.000M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -40°C - +85°C | 12.000M |
| SXT22412DD48-12.288M | 2.5X2.0 SMD (4 PAD) CRYSTAL | 12pF | ±20ppm | ±20ppm | -40°C - +85°C | 12.288M |

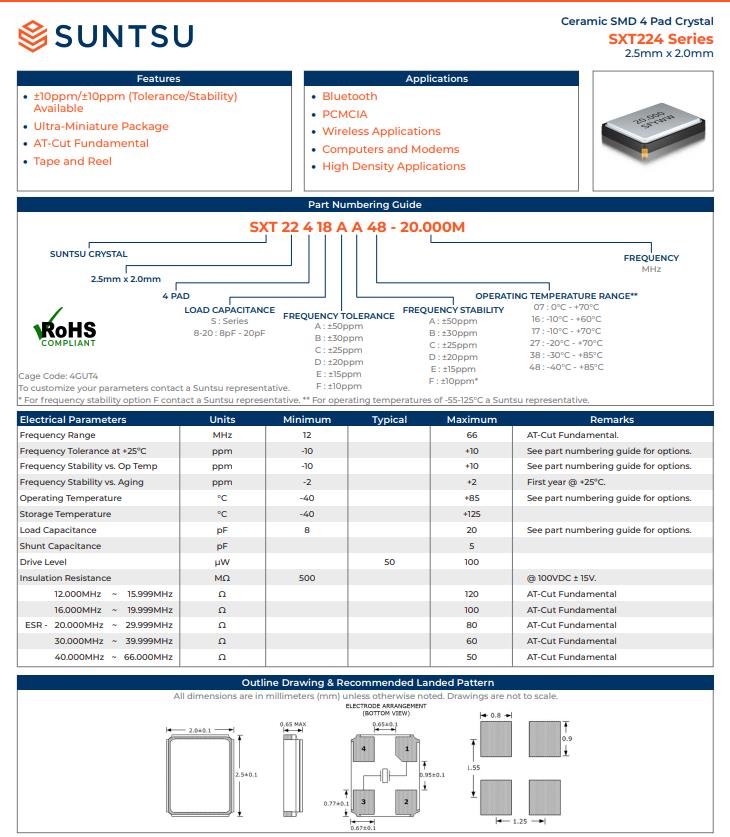

SXT22412DD07-37.400M|SUNTSU进口晶振|2520mm|37.4MHz规格书与内部识别码
