Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太网晶振
prevnext

Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太网晶振

频率：156.25MHZ

尺寸：7.0mm x 5.0mm

Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太网晶振,Skyworks晶振,Si549有源晶振,549BAAB000118ACGR晶振,7050mm晶振,LVDS输出差分晶振,频率156.25MHz,工作温度-40~85°C,电压3.3V,频率稳定性20ppm,超低抖动晶振,低相噪晶振,6G以太网晶振,服务器晶振,电信交换机晶振,测试与测量设备晶振.





订购热线：0755-27837162
QQ咨询 点击这里给我发消息

ConnorWinfield-1Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太网晶振,Skyworks晶振,Si549有源晶振,549BAAB000118ACGR晶振,7050mm晶振,LVDS输出差分晶振,频率156.25MHz,工作温度-40~85°C,电压3.3V,频率稳定性20ppm,超低抖动晶振,低相噪晶振,6G以太网晶振,服务器晶振,电信交换机晶振,测试与测量设备晶振.

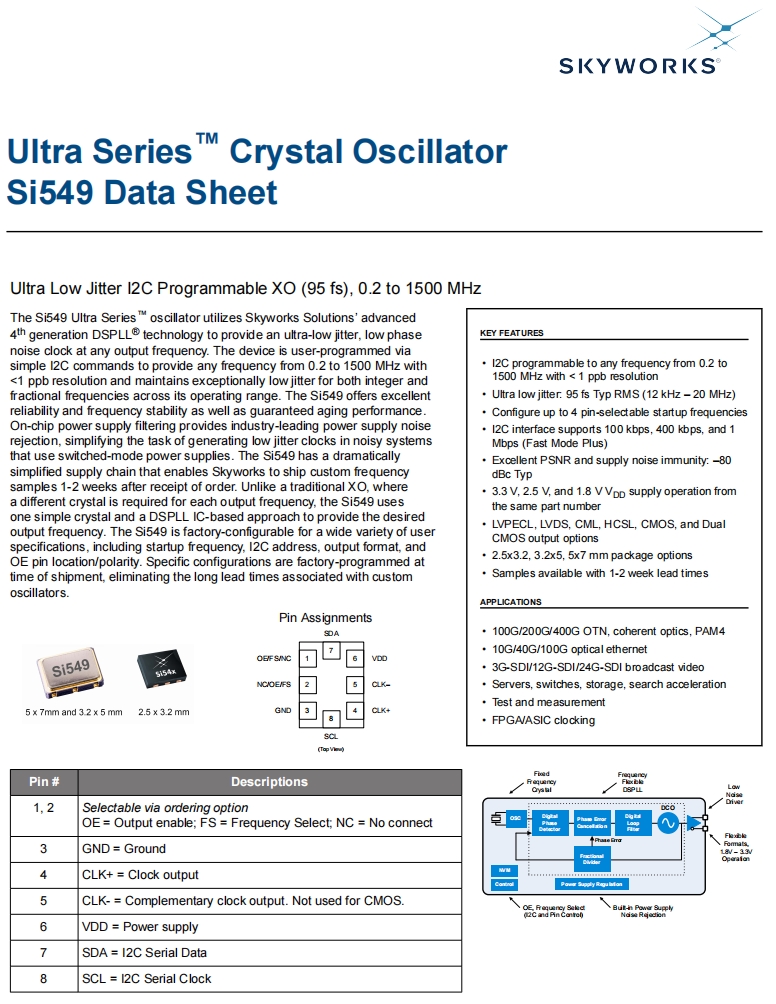

Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太网晶振特点：

•I2C可编程到任何频率从0.2到1500 MHz，分辨率< 1 ppb

•超低抖动:95 fs类型RMS (12 kHz - 20 MHz)

•配置多达4引脚可选择的启动频率

•I2C接口支持100kbps、400kbps和1Mbps(快速模式+)

•出色的PSNR和电源抗噪性:-80 dBc类型

•3.3 V, 2.5 V和1.8 V VDD供电操作从相同的零件号

•LVPECL, LVDS, CML, HCSL, CMOS和Dual CMOS输出选项

•2.5x3.2, 3.2x5, 5x7 mm包装选项

•样品交付周期为1-2周

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太网晶振参数表

项目 符号 规格说明 条件
额定频率 f_nom 156.25MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 Vcc 3.3V
储存温度 T_stg -55℃~+125℃ 裸存
工作温度 T_use -40℃~ +85℃
频率稳定性 f_tol ±20 ppm +25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流 IDD 121mA Max
LVDS
对称性（占空比） SYM 45%~55% 在输出交叉点
输出电压 VOC 1.275V Max
LVDS
VO 0.9Vpp Max
输入电压 VIH 70%VDD Min

VIL 30%VDD Max
上升下降时间 tr/tf 350ps Max
LVDS
起始时间 t str 3ms Max
相位抖动 tpj 150fs Max
100 MHz ≤ FCLK < 200 MHz

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

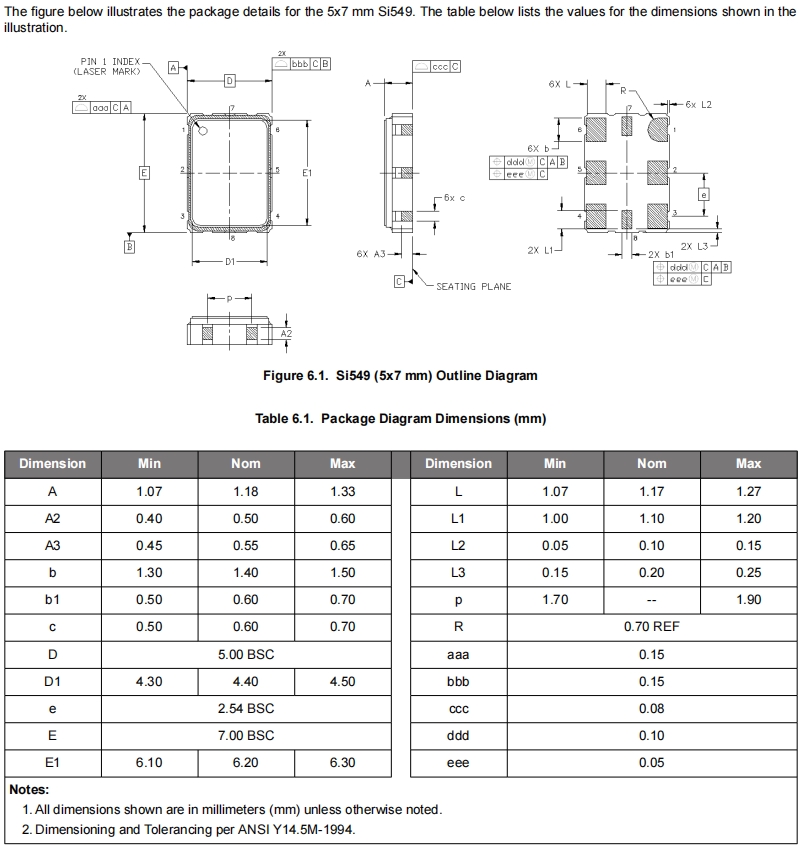

Skyworks晶振,549BAAB000118ACGR,7050mm晶振,6G以太网晶振尺寸图

si549-7050si549

si549-1

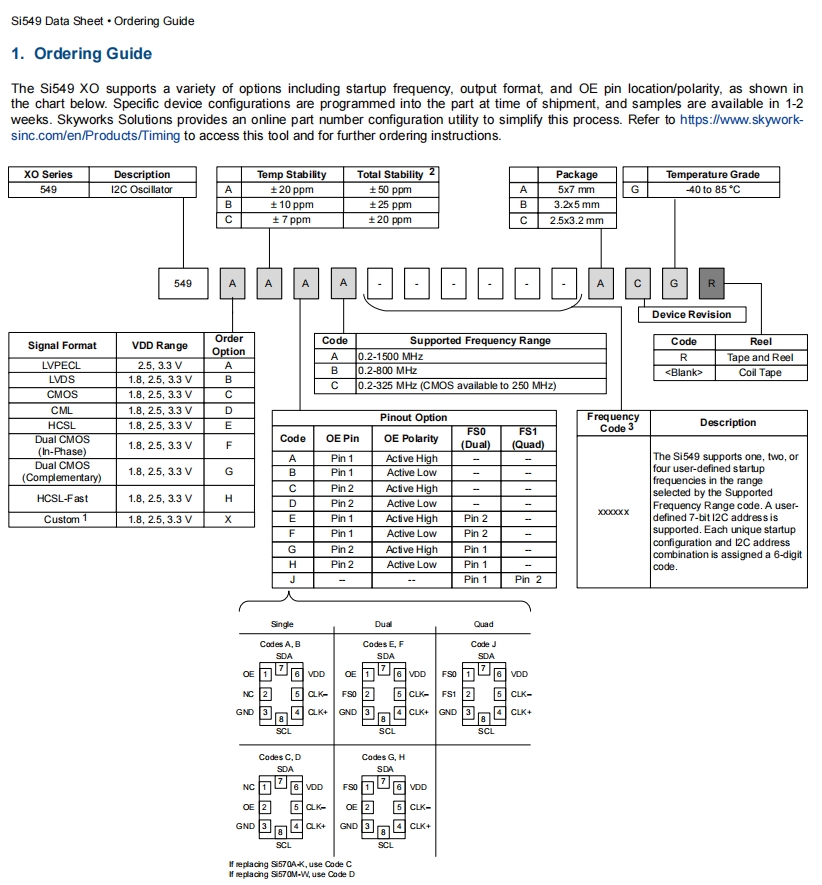

原厂编码 品牌 型号 频率 输出 电压 频率稳定性 工作温度
549BAAB000212BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB000148ACG Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAC000118ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002128ACG Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCCC000141ACG Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BABA000368ACG Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000426ACG Skyworks Solutions Inc. Ultra™ Si549 145 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001589ACG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA001968ACG Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAC001741ACG Skyworks Solutions Inc. Ultra™ Si549 70.656 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB000118ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000141ACG Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA001968ACG Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA001937ACG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002127ACG Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCBA000122ACG Skyworks Solutions Inc. Ultra™ Si549 1 GHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAB000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB002129ACG Skyworks Solutions Inc. Ultra™ Si549 199 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB000126ACG Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CBAC000508ACG Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549DACB001619ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCAC000118ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549GCDC002122ACG Skyworks Solutions Inc. Ultra™ Si549 71.135 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549AAAA001372ACG Skyworks Solutions Inc. Ultra™ Si549 7 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000133ACG Skyworks Solutions Inc. Ultra™ Si549 500 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB001125ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAA000111ACG Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549DAAB001963BCGR Skyworks Solutions Inc. Ultra™ Si549 304.125 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002127ACGR Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000385BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000426ACGR Skyworks Solutions Inc. Ultra™ Si549 145 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000385BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CBAC000508ACGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549DAAA000485BCG Skyworks Solutions Inc. Ultra™ Si549 625 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002128ACGR Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000111BCG Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GAAA000956BCG Skyworks Solutions Inc. Ultra™ Si549 6.78 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAB000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BCAA000131BCGR Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCAC002099BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549AAAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000306BCGR Skyworks Solutions Inc. Ultra™ Si549 22.5792 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA000368BCGR Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAB000544BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000131BCG Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BCAC000177BCG Skyworks Solutions Inc. Ultra™ Si549 297 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB000118ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001623BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA000420BCGR Skyworks Solutions Inc. Ultra™ Si549 644.53125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA001937ACGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAC000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CABC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BABC002152BCGR Skyworks Solutions Inc. Ultra™ Si549 21.3333333 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000306BCG Skyworks Solutions Inc. Ultra™ Si549 22.5792 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002129ACGR Skyworks Solutions Inc. Ultra™ Si549 199 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GCDC002122ACGR Skyworks Solutions Inc. Ultra™ Si549 71.135 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549DACB001619ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACB000148ACGR Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GCAC000111BCG Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CBAC000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACA000281BCG Skyworks Solutions Inc. Ultra™ Si549 840 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000111BCGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GAAA000956BCGR Skyworks Solutions Inc. Ultra™ Si549 6.78 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA001372ACGR Skyworks Solutions Inc. Ultra™ Si549 7 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000133ACGR Skyworks Solutions Inc. Ultra™ Si549 500 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BABC002152BCG Skyworks Solutions Inc. Ultra™ Si549 21.3333333 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001444BCG Skyworks Solutions Inc. Ultra™ Si549 38.4 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA000313BCGR Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549AAAA000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB000212BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000141ACGR Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000131BCG Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB001269BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAC000177BCGR Skyworks Solutions Inc. Ultra™ Si549 297 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA001968ACGR Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000148BCGR Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC001741ACGR Skyworks Solutions Inc. Ultra™ Si549 70.656 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAB000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000111BCG Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB001125ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACC000520BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000544BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549AADA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAC000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CBAC000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAB000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAA000313BCG Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549CAAC000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001840BCGR Skyworks Solutions Inc. Ultra™ Si549 33.33 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAB000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549CAAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000111ACGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAC000544BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001840BCG Skyworks Solutions Inc. Ultra™ Si549 33.33 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA001968ACGR Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAB000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCBA000122ACGR Skyworks Solutions Inc. Ultra™ Si549 1 GHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549DABB001895BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAC000118ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000131BCGR Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549CCAC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAA000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549DCAC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACA000420BCG Skyworks Solutions Inc. Ultra™ Si549 644.53125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000148BCG Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549CABC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549DAAB001963BCG Skyworks Solutions Inc. Ultra™ Si549 304.125 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB001812BCGR Skyworks Solutions Inc. Ultra™ Si549 148.5 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAB000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAA000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549DABB001895BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001589ACGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549DCAC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACA000281BCGR Skyworks Solutions Inc. Ultra™ Si549 840 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB001812BCG Skyworks Solutions Inc. Ultra™ Si549 148.5 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000885BCGR Skyworks Solutions Inc. Ultra™ Si549 32.768 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAA000368BCG Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549ACAC002076BCGR Skyworks Solutions Inc. Ultra™ Si549 455 kHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAC002076BCG Skyworks Solutions Inc. Ultra™ Si549 455 kHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000885BCG Skyworks Solutions Inc. Ultra™ Si549 32.768 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549GCAC000111BCGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001444BCGR Skyworks Solutions Inc. Ultra™ Si549 38.4 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000111BCGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GCCC000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAB000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549AAAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549AADA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BABA000368ACGR Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001623BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACC000520BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000118ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000313BCG Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000313BCGR Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549GCCC000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCAC002099BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAB000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549ABAC001975BCGR Skyworks Solutions Inc. Ultra™ Si549 40.8 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BCCA000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCA000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAB000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549CCCC000141ACGR Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB000544BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001269BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549ABAC001975BCG Skyworks Solutions Inc. Ultra™ Si549 40.8 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAA000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACA001924BCGR Skyworks Solutions Inc. Ultra™ Si549 285 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA001924BCG Skyworks Solutions Inc. Ultra™ Si549 285 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB000126ACGR Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549DAAA000485BCGR Skyworks Solutions Inc. Ultra™ Si549 625 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAB000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACB000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C

JLX-6

RB-6

wxewm

公司名：深圳市金洛鑫电子有限公司

联系人：茹红青

手机：13510569637

电话：0755-27837162

QQ号：657116624

微信公众号：CITIZENCRYSTAL

搜狐公众号：晶振石英晶振NDK晶振

邮箱：jinluodz@163.com

地址：深圳市宝安区41区甲岸路19号

网址：http://www.quartzcrystal.cn/

关键词：Skyworks晶振 549BAAB000118ACGR 7050mm晶振 6G以太网晶振

相关的产品 / Related Products

NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振
NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振

NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振,NKG Crystal,S7M进口贴片晶振,无源晶振,S7M24.5760F18E23-EXT晶振,石英晶体谐振器,7050mm晶振,四脚封装晶振,SMD晶振,频率24.576MHz,负载18pF,频率容差20ppm,工作温度-20~70°C,耐高温晶振,抗震动晶振,高品质晶振,6G无线网络晶振,微处理器晶振,调制解调器晶振,便携式设备晶振.

富通晶振,VC75A-48M000-ABB3,7050mm压控晶振,6G基站晶振
富通晶振,VC75A-48M000-ABB3,7050mm压控晶振,6G基站晶振

富通晶振,VC75A-48M000-ABB3,7050mm压控晶振,6G基站晶振,富通晶振,VC75A进口压控晶振,石英晶振,VC75A-48M000-ABB3晶振,有源晶振,晶体振荡器,7050mm晶振,六脚贴片晶振,SMD晶振,频率48MHz,电压5.0V,频率稳定性25ppm,工作温度-40~85°C,高稳定性晶振,高品质晶振,低老化晶振,6G基站晶振,数据中心晶振,高速转换器晶振,移动通信晶振.

TC75-16M800-BV020B,Fortiming晶振,7050mm晶振,6G路由器晶振
TC75-16M800-BV020B,Fortiming晶振,7050mm晶振,6G路由器晶振

TC75-16M800-BV020B,Fortiming晶振,7050mm晶振,6G路由器晶振,Fortiming晶振,TC75有源晶振,进口晶振,TC75-16M800-BV020B晶振,TCXO晶振,7050mm晶振,温补晶体振荡器,四脚贴片晶振,频率16.8MHz,电压3.3V,频率稳定性2ppm,工作温度-40~85°C,高稳定性晶振,低功耗晶振,无铅环保晶振,6G路由器晶振,无线通信晶振,数字式摄像机存储晶振,网络交换机晶振.

JLX-PD

金洛鑫产品系列

PRODUCT LINE

石英晶振
QuartzCrystal

贴片晶振
SMDcrystal

谐振器滤波器
Resonator

温补晶振
TCXOcrystal

32.768K
32768Kcrystal

雾化片
AtomizationPiece

智能穿戴

车载安防

通讯网络

智能玩具

金洛鑫联系方式
咨询热线：0755-27837162

手机：13510569637

QQ：QQ

邮箱：jinluodz@163.com

地址：广东省深圳市宝安区宝安41区甲岸路

地址：广东省深圳市宝安区宝安41区甲岸路

E-mail：jinluodz@163.com

电话：0755-27837162

手机:135 1056 9637

在线ＱＱ：657116624 在线QQ

网站：www.quartzcrystal.cn

金洛鑫公众号
金洛鑫微信号
Copyright © 1996-2017 金洛鑫电子备案号：粤ICP备17072356号-1版权归金洛鑫电子有限公司所有©
