Q 26.0-JXS21-10-10/10-FU-WA-LF,JAUCH无源晶振,2016mm,26MHz
频率:26MHz
尺寸:2.0mm x 1.6mm
Q 26.0-JXS21-10-10/10-FU-WA-LF,JAUCH无源晶振,2016mm,26MHz,Q 26.0-JXS21-10-10/10-FU-WA-LF晶振,JAUCH无源晶振,欧美进口晶振,2016mm晶振,频率26MHz,工作温度-20~70°C,四脚贴片晶振,石英晶体谐振器,高精度晶振,物联网晶振,微处理器晶振,通讯设备晶振,智能电表晶振,数码相机晶振.
Q 26.0-JXS21-10-10/10-FU-WA-LF,JAUCH无源晶振,2016mm,26MHz,Q 26.0-JXS21-10-10/10-FU-WA-LF晶振,JAUCH无源晶振,欧美进口晶振,2016mm晶振,频率26MHz,工作温度-20~70°C,四脚贴片晶振,石英晶体谐振器,高精度晶振,物联网晶振,微处理器晶振,通讯设备晶振,智能电表晶振,数码相机晶振.
Q 26.0-JXS21-10-10/10-FU-WA-LF,JAUCH无源晶振,2016mm,26MHz 参数
型号
JXS21
频率
26MHz
频率公差 at 25 °C
± 10 ppm
频率稳定度
± 10 ppm
负载电容 CL
10pF
工作温度
-20°C ~ +70 °C
并联电容 Co
<5 pF
串联电阻最大值 (ESR)
100Ω Max
储存温度
-40°C ~ +90 °C
最大驱动电平
100 µW
第一年老化
< ± 3 ppm

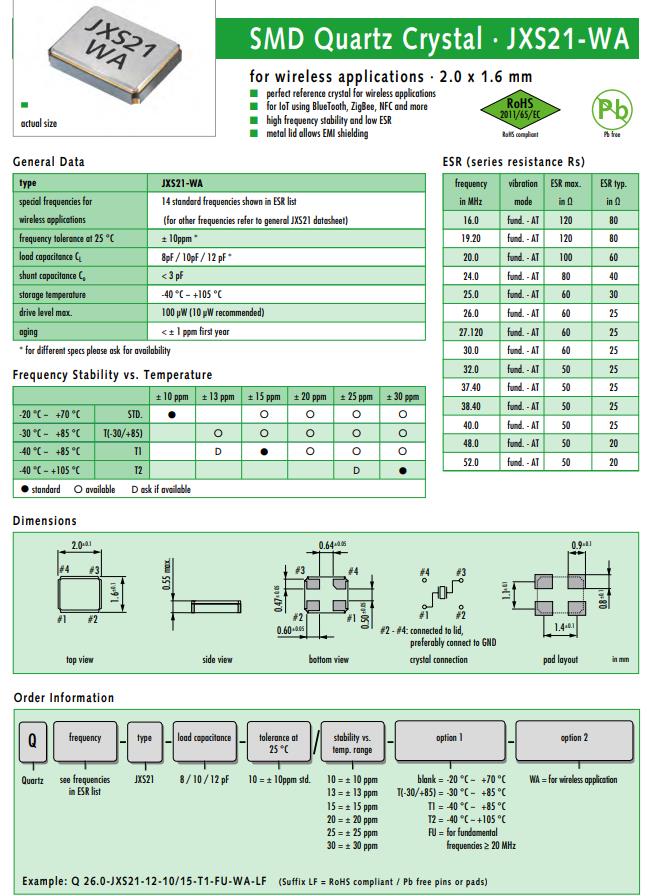

Q 26.0-JXS21-10-10/10-FU-WA-LF,JAUCH无源晶振,2016mm,26MHz 规格图
Jauch晶振原厂编码 | 制造商 | 型号 | 频率 | 频率容差 | 负载电容 | Operating Mode | 工作温度 |
Q 26.0-JXS21-10-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS21-12-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS21-9-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 27.12-JXS21-10-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 27.12-JXS21-12-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 27.12-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 27.12-JXS21-9-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 38.4-JXS21-10-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 38.4MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 38.4-JXS21-12-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 38.4MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 38.4-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 38.4MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 38.4-JXS21-9-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 38.4MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 40.0-JXS21-10-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 40MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 40.0-JXS21-12-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 40MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 40.0-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 40MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 40.0-JXS21-9-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 40MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 32.0-JXS21-10-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 32MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 32.0-JXS21-12-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 32MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 32.0-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 32MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 32.0-JXS21-9-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 32MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS21-10-10/10-WA-LF | Jauch晶振 | JXS21-WA | 19.2MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS21-12-10/10-WA-LF | Jauch晶振 | JXS21-WA | 19.2MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS21-8-10/10-WA-LF | Jauch晶振 | JXS21-WA | 19.2MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS21-9-10/10-WA-LF | Jauch晶振 | JXS21-WA | 19.2MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS21-10-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 20MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS21-12-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 20MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 20MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 20MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 20MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS21-9-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 20MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS21-9-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 20MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS21-9-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 20MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS21-10-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 24MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS21-10-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 24MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS21-10-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 24MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS21-12-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 24MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS21-12-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 24MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS21-12-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 24MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 24MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 24MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 24MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS21-9-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 24MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS21-9-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 24MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS21-9-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 24MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS21-10-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 26.0-JXS21-10-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 26.0-JXS21-10-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 26.0-JXS21-12-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 12pF | Fundamental | -40°C ~ 85°C |
Q 26.0-JXS21-12-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 12pF | Fundamental | -40°C ~ 85°C |
Q 26.0-JXS21-12-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 12pF | Fundamental | -40°C ~ 85°C |
Q 26.0-JXS21-8-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 26.0-JXS21-8-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 26.0-JXS21-8-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 26.0-JXS21-9-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 26.0-JXS21-9-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 26.0-JXS21-9-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 27.12-JXS21-10-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 27.12-JXS21-10-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 27.12-JXS21-10-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 27.12-JXS21-12-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 12pF | Fundamental | -40°C ~ 85°C |
Q 27.12-JXS21-12-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 12pF | Fundamental | -40°C ~ 85°C |
Q 27.12-JXS21-12-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 12pF | Fundamental | -40°C ~ 85°C |
Q 27.12-JXS21-8-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 27.12-JXS21-8-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 27.12-JXS21-8-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 27.12-JXS21-9-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 27.12-JXS21-9-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 27.12-JXS21-9-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 38.4-JXS21-10-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 38.4MHz | ±10ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 38.4-JXS21-10-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 38.4MHz | ±10ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 38.4-JXS21-10-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 38.4MHz | ±10ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 38.4-JXS21-12-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 38.4MHz | ±10ppm | 12pF | Fundamental | -40°C ~ 85°C |
Q 38.4-JXS21-12-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 38.4MHz | ±10ppm | 12pF | Fundamental | -40°C ~ 85°C |
Q 38.4-JXS21-12-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 38.4MHz | ±10ppm | 12pF | Fundamental | -40°C ~ 85°C |
Q 38.4-JXS21-8-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 38.4MHz | ±10ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 38.4-JXS21-8-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 38.4MHz | ±10ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 38.4-JXS21-8-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 38.4MHz | ±10ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 38.4-JXS21-9-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 38.4MHz | ±10ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 38.4-JXS21-9-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 38.4MHz | ±10ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 38.4-JXS21-9-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 38.4MHz | ±10ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 40.0-JXS21-10-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 40MHz | ±10ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 40.0-JXS21-10-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 40MHz | ±10ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 40.0-JXS21-10-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 40MHz | ±10ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 40.0-JXS21-12-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 40MHz | ±10ppm | 12pF | Fundamental | -40°C ~ 85°C |
Q 40.0-JXS21-12-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 40MHz | ±10ppm | 12pF | Fundamental | -40°C ~ 85°C |
Q 40.0-JXS21-12-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 40MHz | ±10ppm | 12pF | Fundamental | -40°C ~ 85°C |
Q 40.0-JXS21-8-10/15-T1-FU-WA-LF | Jauch晶振 | JXS21-WA | 40MHz | ±10ppm | 8pF | Fundamental | -40°C ~ 85°C |
