KC3225L110.000H30E00-HCSL贴片晶振-6G基站晶振
prevnext

KC3225L110.000H30E00-HCSL贴片晶振-6G基站晶振

频率：110MHZ

尺寸：3.2mm x 2.5mm

KC3225L110.000H30E00-HCSL贴片晶振-6G基站晶振,HCSL贴片晶振,KC3225L-H3有源晶振,KC3225L110.000H30E00晶振,日本京瓷石英晶振,6G基站晶振,石英晶体振荡器,频率110MHz,电压3.3V,工作温度0~70°C,频率容差50ppm, 无线网络晶振,通信设备晶振,网络交换机晶振,测试与测量设备晶振,存储系统晶振.

订购热线：0755-27837162
QQ咨询 点击这里给我发消息

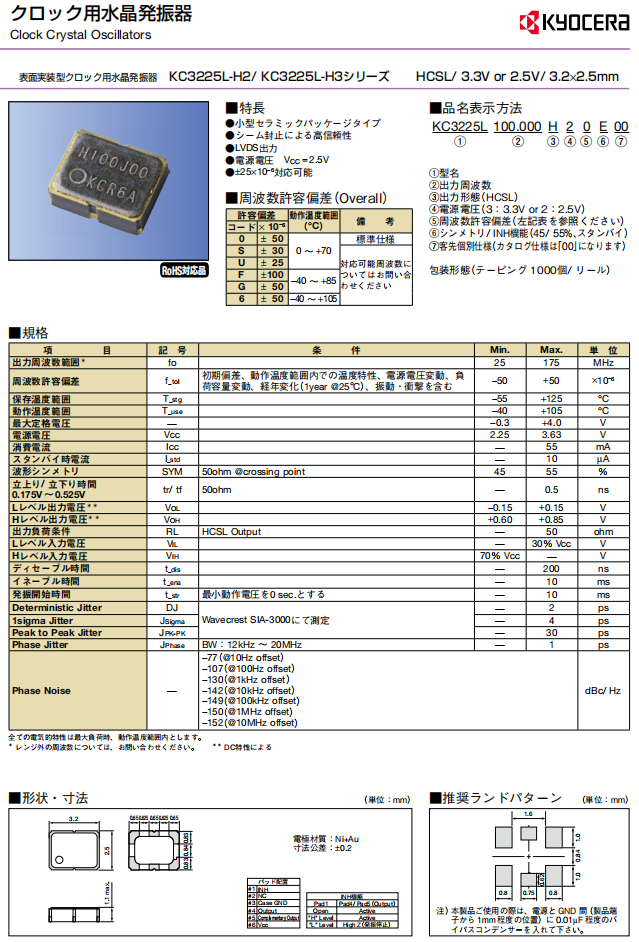

JC-1KC3225L110.000H30E00-HCSL贴片晶振-6G基站晶振,HCSL贴片晶振,KC3225L-H3有源晶振,KC3225L110.000H30E00晶振,日本京瓷进口晶振,6G基站晶振,石英晶体振荡器,频率110MHz,电压3.3V,工作温度0~70°C,频率容差50ppm, 无线网络晶振,通信设备晶振,网络交换机晶振,测试与测量设备晶振,存储系统晶振.

KC3225L110.000H30E00-HCSL贴片晶振-6G基站晶振特点：

●小型陶瓷封装类型

●由于接缝密封的高可靠性

●LVDS输出

●电源电压VCC=2.5V

●±25×10 - 6可以应对

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

KC3225L110.000H30E00-HCSL贴片晶振-6G基站晶振 参数表

项目 符号 规格说明 条件
额定频率 f_nom 110MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 Vcc 3.3V
储存温度 T_stg -55℃~+125℃ 裸存
工作温度 T_use 0℃~ +70℃
频率公差（标准） f_tol ±50 ppm +25℃,超出标准的规格说明请联系我们以便获取相关信息
电流消耗
ICC
55mA Max
待机电流
I_std
10μA Max
对称性（占空比） SYM 45%~55%
50ohm @crossing point
H电平输出电压 VOH 0.6V min

0.85Vmax


L电平输出电压 VOL ±0.15V max
输出负载 RL 50Ω
HCSL  Output
输入电压 VIH 70%Vcc Min OE terminal
VIL 30%Vcc Max
上升下降时间 tr/tf 0.5ns Max
100ohm
起始时间 t str 10ms Max
最小工作电压为0sec . 10ms
确定性抖动 DJ 2ps Max Measured with Wavecrest SIA-3000
1 Sigma 抖动
JSigma
4ps Max
峰对峰抖动
JPK-PK
30ps Max
相位抖动 JPhase
 1ps Max

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

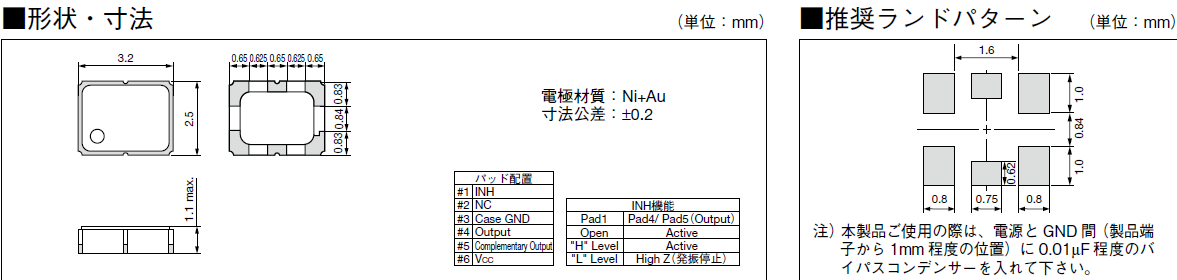

KC3225L110.000H30E00-HCSL贴片晶振-6G基站晶振尺寸图

KC3225L_L2_L3_3.2_2.5 OSC

原厂编码 生产厂家 型号 频率 电压 工作温度
KC3225K40.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 40MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K40.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 40MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K40.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 40MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K20.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 20MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K20.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 20MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K20.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 20MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K27.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 27MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K27.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 27MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K27.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 27MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K32.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 32MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K32.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 32MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K32.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 32MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K33.3333C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 33.3333MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K33.3333C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 33.3333MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K33.3333C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 33.3333MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K48.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 48MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K48.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 48MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K48.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 48MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K50.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 50MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K50.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 50MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K50.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 50MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K1.84320C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 1.8432MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K1.84320C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 1.8432MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K1.84320C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 1.8432MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K7.37280C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 7.3728MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K7.37280C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 7.3728MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K7.37280C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 7.3728MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K8.00000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 8MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K8.00000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 8MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K8.00000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 8MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K10.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 10MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K10.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 10MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K10.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 10MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K12.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 12MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K12.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 12MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K12.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 12MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K14.7456C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 14.7456MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K14.7456C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 14.7456MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K14.7456C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 14.7456MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K18.4320C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 18.432MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K18.4320C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 18.432MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K18.4320C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 18.432MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K32.7680C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 32.768MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K32.7680C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 32.768MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K32.7680C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 32.768MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K33.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 33MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K33.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 33MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K33.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 33MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K60.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 60MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K60.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 60MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K60.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 60MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K66.6667C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 66.6667MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K66.6667C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 66.6667MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K66.6667C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 66.6667MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225A50.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 50MHz 3.3V -40°C ~ 85°C
KC3225A50.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 50MHz 3.3V -40°C ~ 85°C
KC3225A50.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 50MHz 3.3V -40°C ~ 85°C
KC3225A16.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 16MHz 3.3V -40°C ~ 85°C
KC3225A16.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 16MHz 3.3V -40°C ~ 85°C
KC3225A16.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 16MHz 3.3V -40°C ~ 85°C
KC3225A12.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 12MHz 3.3V -10°C ~ 70°C
KC3225A12.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 12MHz 3.3V -10°C ~ 70°C
KC3225A12.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 12MHz 3.3V -10°C ~ 70°C
KC3225A25.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 25MHz 3.3V -10°C ~ 70°C
KC3225A25.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 25MHz 3.3V -10°C ~ 70°C
KC3225A25.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 25MHz 3.3V -10°C ~ 70°C
KC3225A50.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 50MHz 3.3V -10°C ~ 70°C
KC3225A50.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 50MHz 3.3V -10°C ~ 70°C
KC3225A50.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 50MHz 3.3V -10°C ~ 70°C
KC3225K24.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 24MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K24.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 24MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K24.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 24MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225A125.000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 125MHz 3.3V -10°C ~ 70°C
KC3225A125.000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 125MHz 3.3V -10°C ~ 70°C
KC3225A125.000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 125MHz 3.3V -10°C ~ 70°C
KC3225A100.000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 100MHz 3.3V -10°C ~ 70°C
KC3225A100.000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 100MHz 3.3V -10°C ~ 70°C
KC3225A100.000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 100MHz 3.3V -10°C ~ 70°C
KC3225A125.000C20E00 AVX Corp/Kyocera Corp KC3225A-C2, Kyocera 125MHz 2.5V -10°C ~ 70°C
KC3225A125.000C20E00 AVX Corp/Kyocera Corp KC3225A-C2, Kyocera 125MHz 2.5V -10°C ~ 70°C
KC3225A125.000C20E00 AVX Corp/Kyocera Corp KC3225A-C2, Kyocera 125MHz 2.5V -10°C ~ 70°C
KC3225K16.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 16MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K16.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 16MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K16.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 16MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K80.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 80MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K80.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 80MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K80.0000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 80MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225A40.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 40MHz 3.3V -10°C ~ 70°C
KC3225A40.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 40MHz 3.3V -10°C ~ 70°C
KC3225A40.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 40MHz 3.3V -10°C ~ 70°C
KC3225A24.5760C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 24.576MHz 3.3V -10°C ~ 70°C
KC3225A24.5760C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 24.576MHz 3.3V -10°C ~ 70°C
KC3225A24.5760C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 24.576MHz 3.3V -10°C ~ 70°C
KC3225A27.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 27MHz 3.3V -10°C ~ 70°C
KC3225A27.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 27MHz 3.3V -10°C ~ 70°C
KC3225A27.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 27MHz 3.3V -10°C ~ 70°C
KC3225A14.3182C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 14.3182MHz 3.3V -40°C ~ 85°C
KC3225A14.3182C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 14.3182MHz 3.3V -40°C ~ 85°C
KC3225A14.3182C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 14.3182MHz 3.3V -40°C ~ 85°C
KC3225A20.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 20MHz 3.3V -40°C ~ 85°C
KC3225A20.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 20MHz 3.3V -40°C ~ 85°C
KC3225A20.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 20MHz 3.3V -40°C ~ 85°C
KC3225A1.84320C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 1.8432MHz 3.3V -40°C ~ 85°C
KC3225A1.84320C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 1.8432MHz 3.3V -40°C ~ 85°C
KC3225A1.84320C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 1.8432MHz 3.3V -40°C ~ 85°C
KC3225A19.2000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 19.2MHz 3.3V -40°C ~ 85°C
KC3225A19.2000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 19.2MHz 3.3V -40°C ~ 85°C
KC3225A19.2000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 19.2MHz 3.3V -40°C ~ 85°C
KC3225A48.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 48MHz 3.3V -40°C ~ 85°C
KC3225A48.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 48MHz 3.3V -40°C ~ 85°C
KC3225A48.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 48MHz 3.3V -40°C ~ 85°C
KC3225A12.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 12MHz 3.3V -40°C ~ 85°C
KC3225A12.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 12MHz 3.3V -40°C ~ 85°C
KC3225A12.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 12MHz 3.3V -40°C ~ 85°C
KC3225A4.00000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 4MHz 3.3V -40°C ~ 85°C
KC3225A4.00000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 4MHz 3.3V -40°C ~ 85°C
KC3225A4.00000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 4MHz 3.3V -40°C ~ 85°C
KC3225A40.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 40MHz 3.3V -40°C ~ 85°C
KC3225A40.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 40MHz 3.3V -40°C ~ 85°C
KC3225A40.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 40MHz 3.3V -40°C ~ 85°C
KC3225A10.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 10MHz 3.3V -40°C ~ 85°C
KC3225A10.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 10MHz 3.3V -40°C ~ 85°C
KC3225A10.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 10MHz 3.3V -40°C ~ 85°C
KC3225A7.37280C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 7.3728MHz 3.3V -40°C ~ 85°C
KC3225A7.37280C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 7.3728MHz 3.3V -40°C ~ 85°C
KC3225A7.37280C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 7.3728MHz 3.3V -40°C ~ 85°C
KC3225A27.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 27MHz 3.3V -40°C ~ 85°C
KC3225A27.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 27MHz 3.3V -40°C ~ 85°C
KC3225A27.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 27MHz 3.3V -40°C ~ 85°C
KC3225A54.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 54MHz 3.3V -10°C ~ 70°C
KC3225A54.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 54MHz 3.3V -10°C ~ 70°C
KC3225A54.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 54MHz 3.3V -10°C ~ 70°C
KC3225A60.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 60MHz 3.3V -40°C ~ 85°C
KC3225A60.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 60MHz 3.3V -40°C ~ 85°C
KC3225A60.0000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 60MHz 3.3V -40°C ~ 85°C
KC3225A100.000C20E00 AVX Corp/Kyocera Corp KC3225A-C2, Kyocera 100MHz 2.5V -10°C ~ 70°C
KC3225A100.000C20E00 AVX Corp/Kyocera Corp KC3225A-C2, Kyocera 100MHz 2.5V -10°C ~ 70°C
KC3225A100.000C20E00 AVX Corp/Kyocera Corp KC3225A-C2, Kyocera 100MHz 2.5V -10°C ~ 70°C
KC3225A125.000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 125MHz 3.3V -40°C ~ 85°C
KC3225A125.000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 125MHz 3.3V -40°C ~ 85°C
KC3225A125.000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 125MHz 3.3V -40°C ~ 85°C
KC3225A100.000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 100MHz 3.3V -40°C ~ 85°C
KC3225A100.000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 100MHz 3.3V -40°C ~ 85°C
KC3225A100.000C3GE00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 100MHz 3.3V -40°C ~ 85°C
KC3225A72.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 72MHz 3.3V -10°C ~ 70°C
KC3225A72.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 72MHz 3.3V -10°C ~ 70°C
KC3225A72.0000C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 72MHz 3.3V -10°C ~ 70°C
KC3225A106.250C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 106.25MHz 3.3V -10°C ~ 70°C
KC3225A106.250C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 106.25MHz 3.3V -10°C ~ 70°C
KC3225A106.250C30E00 AVX Corp/Kyocera Corp KC3225A-C3, Kyocera 106.25MHz 3.3V -10°C ~ 70°C
KC3225K24.5760C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 24.576MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K24.5760C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 24.576MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K24.5760C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 24.576MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K3.68640C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 3.6864MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K3.68640C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 3.6864MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K3.68640C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 3.6864MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K4.00000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 4MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K4.00000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 4MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K4.00000C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 4MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K14.3182C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 14.3182MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K14.3182C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 14.3182MHz 1.6 V ~ 3.63 V -40°C ~ 85°C
KC3225K14.3182C1GE00 AVX Corp/Kyocera Corp KC3225K, Kyocera 14.3182MHz 1.6 V ~ 3.63 V -40°C ~ 85°C

KC3225L





JLX-6

RB-6

wxewm

公司名：深圳市金洛鑫电子有限公司

联系人：茹红青

手机：13510569637

电话：0755-27837162

QQ号：657116624

微信公众号：CITIZENCRYSTAL

搜狐公众号：晶振石英晶振NDK晶振

邮箱：jinluodz@163.com

地址：深圳市宝安区41区甲岸路19号

网址：http://www.quartzcrystal.cn/

关键词：KC3225L110.000H30E00 HCSL贴片晶振 6G基站晶振

相关的产品 / Related Products

DSC1001DL5-024.0000T,2520mm振荡器,Microchip工业应用晶振
DSC1001DL5-024.0000T,2520mm振荡器,Microchip工业应用晶振
DSC1001DL5-024.0000T,2520mm振荡器,Microchip工业应用晶振，美国进口晶振，Microchip晶振，型号：DSC1001，编码为：DSC1001DL5-024.0000T，频率为：24MHz，电压：1.8V-3.3V，工作温度范围：-40℃至+105℃，频率稳定性：±10ppm，小体积晶振尺寸：2.5x2.0mm封装，四脚贴片晶振，有源晶振，耐高温晶振，石英晶体振荡器。应用于：移动通讯应用，无线网络晶振，监控摄像头晶振，测试设备晶振，工业应用等。
CWX815-45.0M,7050mm晶振,ConnorWinfield石英晶体振荡器
CWX815-45.0M,7050mm晶振,ConnorWinfield石英晶体振荡器
CWX815-45.0M,7050mm晶振,ConnorWinfield石英晶体振荡器，美国进口晶振，ConnorWinfield晶振，康纳温菲尔德晶振，型号：CWX8xx系列，编码为：CWX815-45.0M，频率为：45MHz，频率稳定度：±25ppm，工作电压5.0V，工作温度范围:-20℃至+70℃，小体积晶振尺寸：7.0x5.0mm表面安装，四脚贴片晶振，CMOS输出晶振，有源晶振，石英晶体振荡器（XO）。设计用于需要紧密的频率稳定性和低抖动的应用程序。表面安装包是设计为高密度安装，是最佳的大规模生产。被广泛用于：通讯设备晶振，无线网络晶振，导航晶振，罗拉模块晶振，GPS定位系统，物联网等应用。
NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振
NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振

NKG Crystal,S7M24.5760F18E23-EXT,7050mm晶振,6G无线网络晶振,NKG Crystal,S7M进口贴片晶振,无源晶振,S7M24.5760F18E23-EXT晶振,石英晶体谐振器,7050mm晶振,四脚封装晶振,SMD晶振,频率24.576MHz,负载18pF,频率容差20ppm,工作温度-20~70°C,耐高温晶振,抗震动晶振,高品质晶振,6G无线网络晶振,微处理器晶振,调制解调器晶振,便携式设备晶振.

JLX-PD

金洛鑫产品系列

PRODUCT LINE

石英晶振
QuartzCrystal

贴片晶振
SMDcrystal

谐振器滤波器
Resonator

温补晶振
TCXOcrystal

32.768K
32768Kcrystal

雾化片
AtomizationPiece

智能穿戴

车载安防

通讯网络

智能玩具

金洛鑫联系方式
咨询热线：0755-27837162

手机：13510569637

QQ：QQ

邮箱：jinluodz@163.com

地址：广东省深圳市宝安区宝安41区甲岸路

地址：广东省深圳市宝安区宝安41区甲岸路

E-mail：jinluodz@163.com

电话：0755-27837162

手机:135 1056 9637

在线ＱＱ：657116624 在线QQ

网站：www.quartzcrystal.cn

金洛鑫公众号
金洛鑫微信号
Copyright © 1996-2017 金洛鑫电子备案号：粤ICP备17072356号-1版权归金洛鑫电子有限公司所有©
