AB308-28.000MHZ,AB308圆柱插件晶振,28MHz,-10~60°C
频率：28MHz
尺寸：8.0mm x 3.0mm
AB308-28.000MHZ,AB308圆柱插件晶振,28MHz,-10~60°C,AB308-28.000MHZ晶振,美国Abracon晶振,AB308圆柱插件晶振,频率28MHz,工作温度-10~60°C,微处理器时钟晶振,消费电子产品晶振,测试设备晶振,计算机外围设备晶振.
AB308-28.000MHZ,AB308圆柱插件晶振,28MHz,-10~60°C,AB308-28.000MHZ晶振,美国Abracon晶振,AB308圆柱插件晶振,频率28MHz,工作温度-10~60°C,微处理器时钟晶振,消费电子产品晶振,测试设备晶振,计算机外围设备晶振.

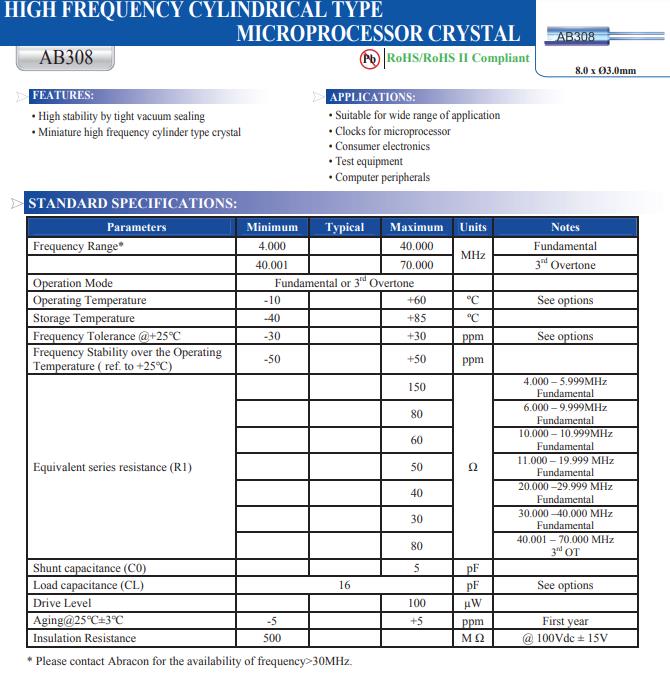

AB308-28.000MHZ,AB308圆柱插件晶振,28MHz,-10~60°C参数
工作温度范围内的频率稳定性 ( ref. to
+25°C)
规格参数
MAX (除非有特殊说明)
频率
28 MHz
操作模式
Fundamental or3rd Overtone
工作温度
-10°C to +60°C
保存温度
-55°C to +125°C
频率公差
± 20PPM
± 100PPM
等效串联电阻(R1)
40 Ω
并联电容 (C0)
7.0 pF
负载电容 (CL)
18 pF
激励功率
1000 μW Max
老化性
±5ppm
绝缘电阻
500M Ω @100Vdc±15V
AB308-28.000MHZ,AB308圆柱插件晶振,28MHz,-10~60°C尺寸图
| 原厂编码 | 生产厂家 | 型号 | 频率 | 频率稳定度 | 频率偏差 | 负载电容 | 工作温度 |
| AB308-4.000MHZ | Abracon晶振 | AB308 | 4MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-10.000MHZ | Abracon晶振 | AB308 | 10MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-12.000MHZ | Abracon晶振 | AB308 | 12MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-12.288MHZ | Abracon晶振 | AB308 | 12.288MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-12.352MHZ | Abracon晶振 | AB308 | 12.352MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-14.31818MHZ | Abracon晶振 | AB308 | 14.31818MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-14.7456MHZ | Abracon晶振 | AB308 | 14.7456MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-16.000MHZ | Abracon晶振 | AB308 | 16MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-16.257MHZ | Abracon晶振 | AB308 | 16.257MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-16.667MHZ | Abracon晶振 | AB308 | 16.667MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-20.000MHZ | Abracon晶振 | AB308 | 20MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-4.9152MHZ | Abracon晶振 | AB308 | 4.9152MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-5.000MHZ | Abracon晶振 | AB308 | 5MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-6.000MHZ | Abracon晶振 | AB308 | 6MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-7.3728MHZ | Abracon晶振 | AB308 | 7.3728MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-8.000MHZ | Abracon晶振 | AB308 | 8MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-26.540MHZ | Abracon晶振 | AB308 | 26.54MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-28.000MHZ | Abracon晶振 | AB308 | 28MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-28.6363MHZ | Abracon晶振 | AB308 | 28.6363MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-29.4912MHZ | Abracon晶振 | AB308 | 29.4912MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-53.125MHZ | Abracon晶振 | AB308 | 53.125MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-8.000MHZ | Abracon晶振 | AB308 | 8MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-10.000MHZ | Abracon晶振 | AB308 | 10MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-12.000MHZ | Abracon晶振 | AB308 | 12MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-16.000MHZ | Abracon晶振 | AB308 | 16MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-20.000MHZ | Abracon晶振 | AB308 | 20MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-5.000MHZ | Abracon晶振 | AB308 | 5MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-6.000MHZ | Abracon晶振 | AB308 | 6MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-7.3728MHZ | Abracon晶振 | AB308 | 7.3728MHz | ±50ppm | ±30ppm | 16pF | -10°C ~ 60°C |
+
