NKG Crystal,S1M24.0000F18E1Y-EXT,1612mm晶振,6G移动通信晶振
频率：24MHZ

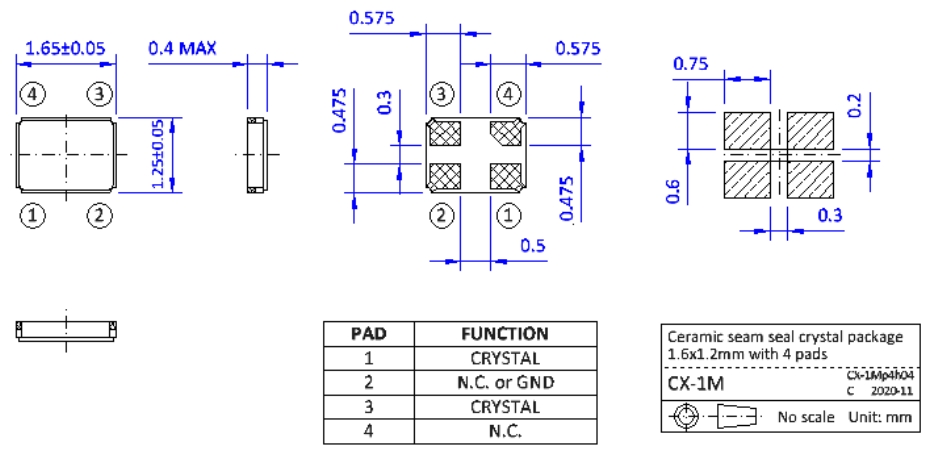

尺寸：1.6×1.2×0.4mm
NKG Crystal,S1M24.0000F18E1Y-EXT,1612mm晶振,6G移动通信晶振,NKG Crystal,S1M无源晶振,石英晶体谐振器,S1M24.0000F18E1Y-EXT晶振,进口晶振,四脚贴片晶振,1612mm晶振,SMD晶体,频率24MHz,负载18pF,频率容差10ppm,工作温度-20~70°C,超小型晶振,高可靠性晶振,低老化晶振,6G移动通信晶振,蓝牙音响耳机晶振,便携式设备晶振,USB存储设备晶振.
订购热线：0755-27837162
NKG Crystal,S1M24.0000F18E1Y-EXT,1612mm晶振,6G移动通信晶振,NKG Crystal,S1M无源晶振,石英晶体谐振器,S1M24.0000F18E1Y-EXT晶振,进口晶振,四脚贴片晶振,1612mm晶振,SMD晶体,频率24MHz,负载18pF,频率容差10ppm,工作温度-20~70°C,超小型晶振,高可靠性晶振,低老化晶振,6G移动通信晶振,蓝牙音响耳机晶振,便携式设备晶振,USB存储设备晶振.
NKG Crystal,S1M24.0000F18E1Y-EXT,1612mm晶振,6G移动通信晶振特点：
●微型包装尺寸1.6 x 1.2 x 0.4mm与4个垫

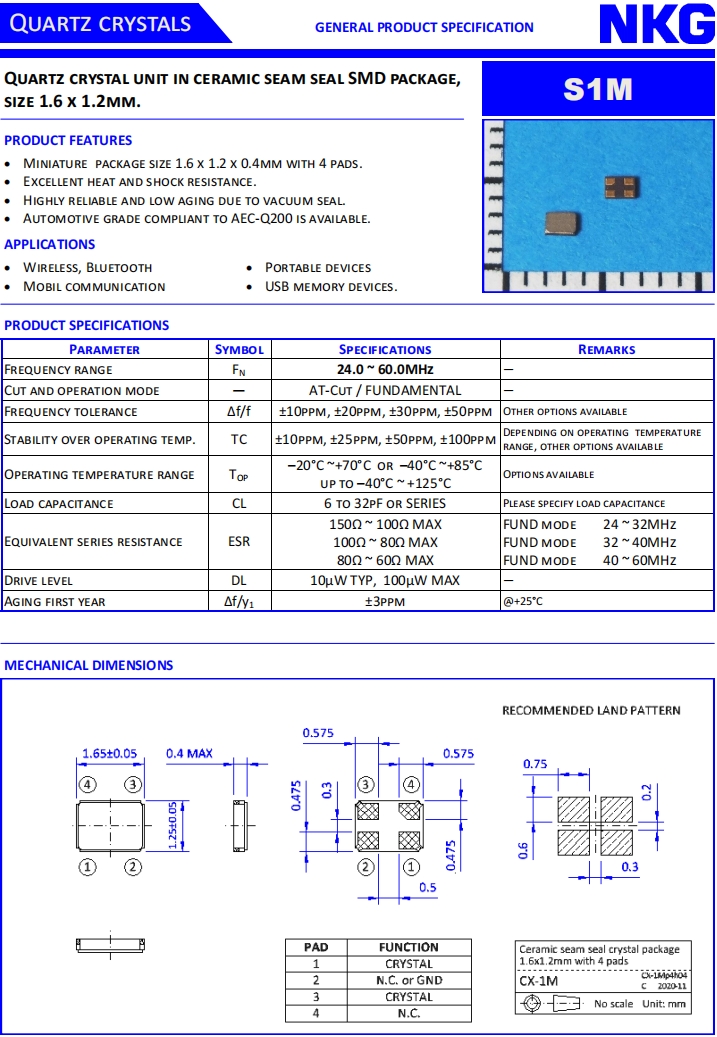

NKG Crystal,S1M24.0000F18E1Y-EXT,1612mm晶振,6G移动通信晶振规格表
| Parameter | Symbol | Specifications | Remarks |
| Frequency range | FN | 24MHz | - |
| Cut and operation mode | - | FUNDAMENTAL | - |
| Frequency tolerance | Δf/f | ±10ppm | Other options available |
| Stability over operating temp. | TC | ±15ppm | Depending on operating temperature range, other options available |
| Operating temperature range | TOP | –20°C ~+70°C | Options available |
| Load capacitance | CL | 18pF | Please specify load capacitance |
| Equivalent series resistance | ESR | 150Ω ~ 100Ω MAX | FUND mode 24 ~ 32MHz |
| Drive level | DL | 10µW TYP, 100µW MAX | - |
| Aging first year | Δf/y1 | ±3ppm | @+25°C |
