NKG晶振,CT20M26.0000F10V11-100,超小型热敏晶体,6G电信应用晶振
频率：26MHZ

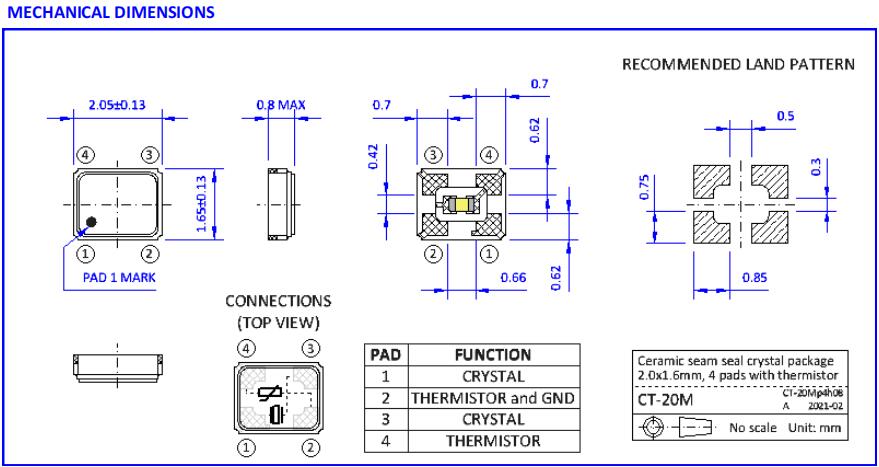

尺寸：2.0×1.6×0.8mm
NKG晶振,CT20M26.0000F10V11-100,超小型热敏晶体,6G电信应用晶振,NKG晶振,CT20M热敏晶体,石英晶振,CT20M26.0000F10V11-100晶振,无源晶振,晶体谐振器,2016mm晶振,四脚贴片晶振,SMD晶振,频率26MHz,负载10pF,频率容差10ppm,工作温度-30~85°C,超小型晶振,高可靠性晶振,无铅环保晶振,6G电信应用程序晶振,蓝牙模块晶振,无线应用晶振,智能设备晶振.
订购热线：0755-27837162
NKG晶振,CT20M26.0000F10V11-100,超小型热敏晶体,6G电信应用晶振,NKG晶振,CT20M热敏晶体,石英晶振,CT20M26.0000F10V11-100晶振,无源晶振,晶体谐振器,2016mm晶振,四脚贴片晶振,SMD晶振,频率26MHz,负载10pF,频率容差10ppm,工作温度-30~85°C,超小型晶振,高可靠性晶振,无铅环保晶振,6G电信应用程序晶振,蓝牙模块晶振,无线应用晶振,智能设备晶振.
NKG晶振,CT20M26.0000F10V11-100,超小型热敏晶体,6G电信应用晶振特点：
●内置热敏电阻100kΩ用于温度测量

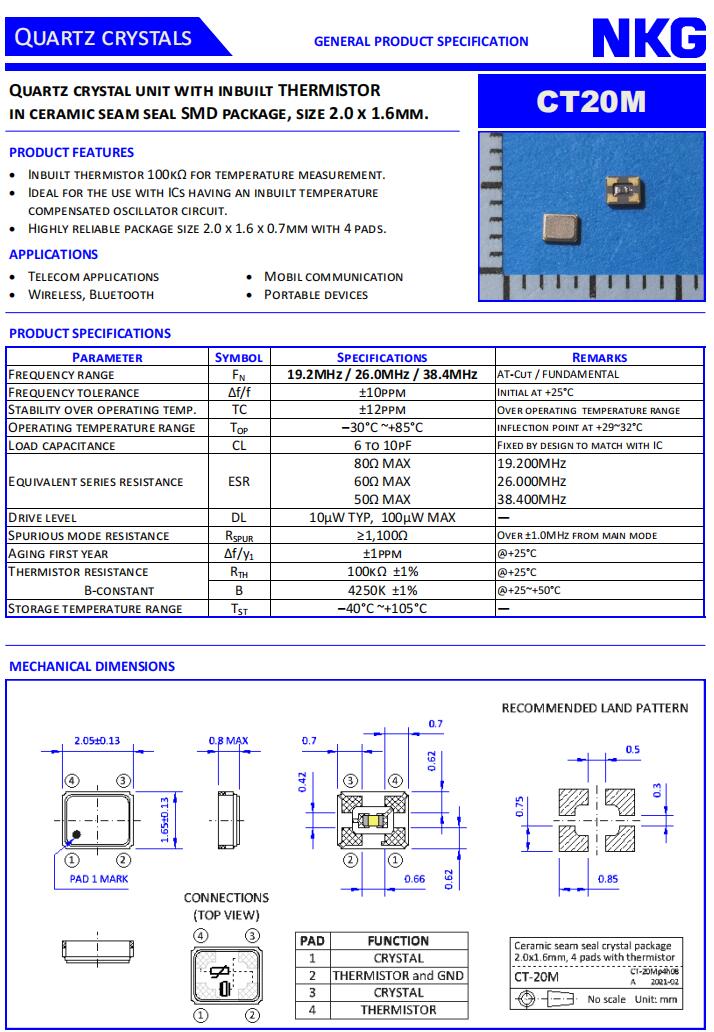

NKG晶振,CT20M26.0000F10V11-100,超小型热敏晶体,6G电信应用晶振规格表
| Parameter | Symbol | Specifications | Remarks |
| Frequency range | FN | 26MHz | - |
| Cut and operation mode | - | FUNDAMENTAL | - |
| Frequency tolerance | Δf/f | ±10ppm | Other options available |
| Stability over operating temp. | TC | ±10ppm | Depending on operating temperature range, other options available |
| Operating temperature range | TOP | –30°C ~+85°C | Options available |
| Load capacitance | CL | 10pF | Please specify load capacitance |
| Equivalent series resistance | ESR | 60Ω MAX | 26MHz |
| Drive level | DL | 10µW TYP, 100µW MAX | - |
|
Spurious mode resistance |
RSPUR |
≥1,100Ω |
Over ±1.0MHz from main mode |
| Aging first year | Δf/y1 | ±1ppm | @+25°C |
|
Storage temperature range |
TST |
–40°C ~+105°C |
- |
