M1004S050 12.288000,麦特伦皮石英晶振,12.288MHz

频率：12.288MHz

尺寸：11.05mm x 4.65mm

M1004S050 12.288000,麦特伦皮石英晶振,12.288MHz,M1004S050 12.288000晶振,麦特伦皮石英晶振,频率12.288MHz,HC-49S插件晶振,负载15pf,工作温度-40~85°C,抗冲击晶振,环保晶振,家用电视机顶盒晶振,家电影音系统晶振,摄像头晶振,物联网晶振,数字电表晶振.

订购热线：0755-27837162

M1004S050 12.288000,麦特伦皮石英晶振,12.288MHz 特征

•电阻焊接(HC-49S)

•AT-Cut基本和泛音模式

•扫描石英可选

•坚固的设计,以支持恶劣的环境

高端数码电子谐振器,8045陶瓷壳2P晶振,NX8045GE晶振

M1004S050 12.288000,麦特伦皮石英晶振,12.288MHz 参数

项目	数值	条件
频率	12.288MHz
频率公差	±30PPM	@ +25°C, see ordering information.
频率稳定性	±50PPM	Over the operating temperature range

老化	±5ppm Max	First year @ +25ºC.
工作温度	-40°C to +85°C	See part numbering guide for options.
保存温度	-55°C to +125°C
并联电容 (C0)	7pF Max
负载电容 (CL)	15pF
激励功率	500μW Max
绝缘电阻	500MΩ
串联电阻ESR	80Ω	AT-Cut Fundamental.

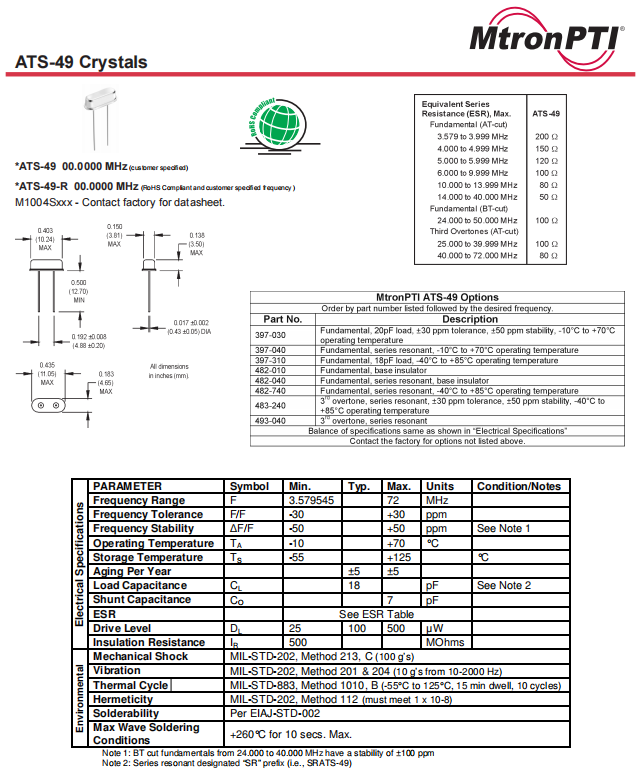

M1001S066 25.000000,ATSM-49-R 贴片晶振,25MHz 尺寸图

原厂编码	型号	频率稳定度	频率(MHz)	频率容差	老化	包装	工作温度	负载
M1004S050 12.288000	ATS-49 series	±50 ppm	12.288	±30 ppm	±5 ppm	HC-49S	-40?C to +85?C	15 pF
M1004S051 15.000000	ATS-49 series	±50 ppm	15	±30 ppm	±5 ppm	HC-49S	-40?C to +85?C	15 pF
M1004S156 16.000000	ATS-49 series	±50 ppm	16	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 17.000000	ATS-49 series	±50 ppm	17	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 18.000000	ATS-49 series	±50 ppm	18	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 19.000000	ATS-49 series	±50 ppm	19	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 20.000000	ATS-49 series	±50 ppm	20	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 21.000000	ATS-49 series	±50 ppm	21	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 22.000000	ATS-49 series	±50 ppm	22	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 23.000000	ATS-49 series	±50 ppm	23	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 24.000000	ATS-49 series	±50 ppm	24	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 25.000000	ATS-49 series	±50 ppm	25	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 26.000000	ATS-49 series	±50 ppm	26	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 27.000000	ATS-49 series	±50 ppm	27	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 28.000000	ATS-49 series	±50 ppm	28	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 29.000000	ATS-49 series	±50 ppm	29	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 30.000000	ATS-49 series	±50 ppm	30	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 31.000000	ATS-49 series	±50 ppm	31	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 32.000000	ATS-49 series	±50 ppm	32	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 33.000000	ATS-49 series	±50 ppm	33	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 34.000000	ATS-49 series	±50 ppm	34	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 35.000000	ATS-49 series	±50 ppm	35	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
M1004S156 36.000000	ATS-49 series	±50 ppm	36	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C	5 pF
