M1001S066 25.000000,ATSM-49-R 贴片晶振,25MHz
频率：25MHz
尺寸：12.3mm x 4.85mm
M1001S066 25.000000,ATSM-49-R 贴片晶振,25MHz,MtronPTI进口晶振,M1001S066 25.000000,ATSM-49-R 贴片晶振,频率25MHz,工作温度-10~70°C,抗冲击晶振,耐高温晶振,航空电子与航空晶振,通信设备晶振,导航晶振,军事无线电晶振,工业设备晶振,测量仪器晶振.
M1001S066 25.000000,ATSM-49-R 贴片晶振,25MHz,MtronPTI进口晶振,M1001S066 25.000000,ATSM-49-R 贴片晶振,频率25MHz,工作温度-10~70°C,抗冲击晶振,耐高温晶振,航空电子与航空晶振,通信设备晶振,导航晶振,军事无线电晶振,工业设备晶振,测量仪器晶振.

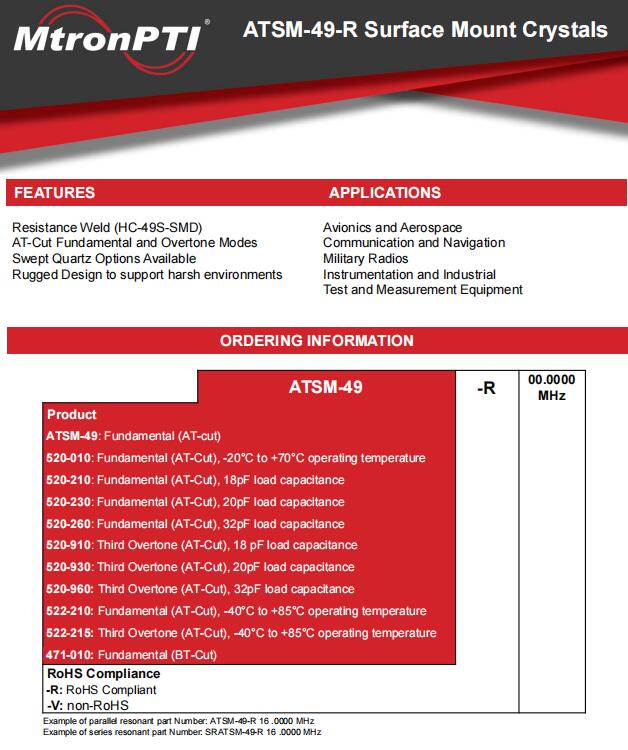

M1001S066 25.000000,ATSM-49-R 贴片晶振,25MHz 特征
•电阻焊接(HC-49S-SMD)
•AT-Cut基本和泛音模式
•扫描石英可选

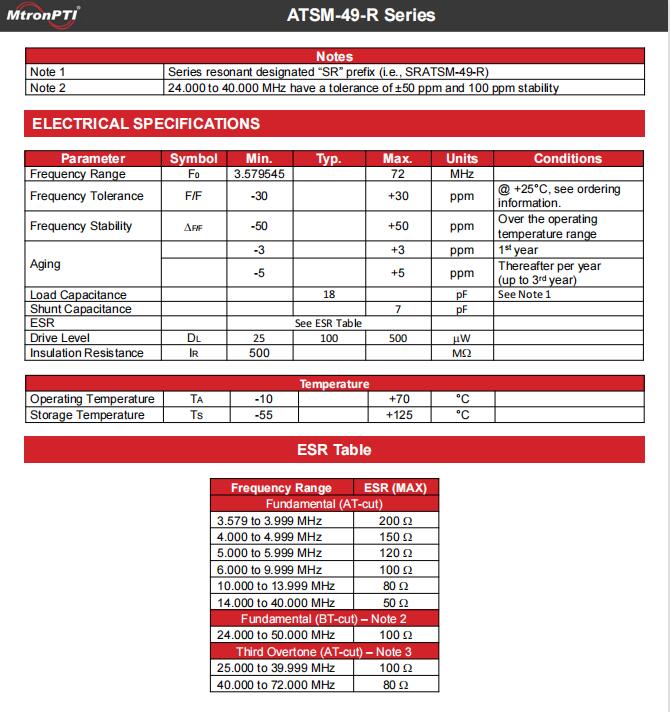

M1001S066 25.000000,ATSM-49-R 贴片晶振,25MHz 参数
项目
数值
条件
频率
25MHz
频率公差
±30PPM
@ +25°C, see ordering information.
频率稳定性
±50PPM
Over the operating temperature range
老化
±3ppm Max
First year @ +25ºC.
工作温度
-10°C to +70°C
See part numbering guide for options.
保存温度
-55°C to +125°C
并联电容 (C0)
7pF Max
负载电容 (CL)
12pF
激励功率
500μW Max
绝缘电阻
500MΩ
串联电阻ESR
50Ω
AT-Cut Fundamental.

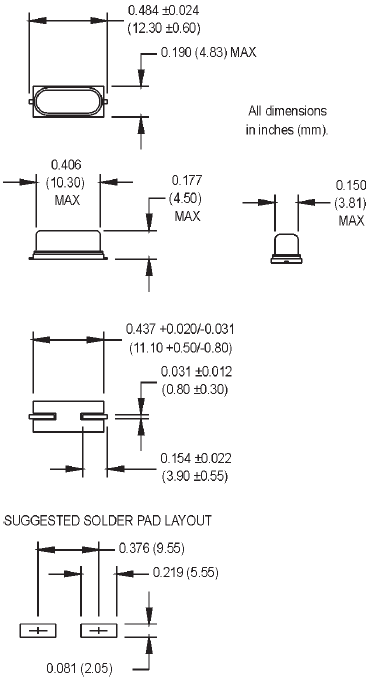

M1001S066 25.000000,ATSM-49-R 贴片晶振,25MHz 尺寸图
| 原厂编码 | 型号 | 频率稳定度 | 频率(MHz) | 频率容差 | 老化 | 工作温度 | 负载 |
| M1001S025-R 3.686400 | ATSM-49-R | ±50 ppm | 3.6864 | ±30 ppm | ±5 ppm | -40?C to +85?C | 18 pF |
| M1001S066 25.000000 | ATSM-49-R | ±50 ppm | 25 | ±30 ppm | ±5 ppm | -10?C to +70?C | 12 pF |
| M1001S096 24.000000 | ATSM-49-R | ±50 ppm | 24 | ±30 ppm | ±5 ppm | -40?C to +125?C | 12 pF |
| M1001S097 30.000000 | ATSM-49-R | ±50 ppm | 30 | ±30 ppm | ±5 ppm | -40?C to +125?C | 12 pF |
| M1001S175-R 4.000000 | ATSM-49-R | ±10 ppm | 4 | ±25 ppm | ±5 ppm | 0?C to +70?C | 20 pF |
| M1001S182 25.000000 | ATSM-49-R | ±50 ppm | 25 | ±30 ppm | ±5 ppm | -40?C to +85?C | 18 pF |
| M1001S214 8.000000 | ATSM-49-R | ±50 ppm | 8 | ±30 ppm | ±5 ppm | -40?C to +85?C | 18 pF |
| M1001S258 10.000000 | ATSM-49-R | ±50 ppm | 10 | ±50 ppm | ±5 ppm | -40?C to +125?C | 18 pF |
| M1001S286 26.000000 | ATSM-49-R | ±50 ppm | 26 | Varies | ±3 ppm | -20?C to +75?C | 3 pF |
| M1001S328 26.000000 | ATSM-49-R | ±15 ppm | 26 | ±10 ppm | ±3 ppm | -40?C to +85?C | 9 pF |
| M1001S445 50.000000 | ATSM-49-R | ±20 ppm | 50 | ±15 ppm | ±3 ppm | -40?C to +85?C | 10 pF |
| M1001S448 8.000000 | ATSM-49-R | ±50 ppm | 8 | ±50 ppm | ±5 ppm | -55?C to +105?C | 18 pF |
| M1001S483 4.194304 | ATSM-49-R | ±50 ppm | 4.1943 | ±30 ppm | ±5 ppm | -10?C to +70?C | 12 pF |
| M1001S554 25.000000 | ATSM-49-R | ±50 ppm | 25 | ±20 ppm | ±5 ppm | -20?C to +70?C | 18 pF |
| M1001S559 14.463660 | ATSM-49-R | ±30 ppm | 14.4637 | ±30 ppm | NS | -40?C to +105?C | 10 pF |
| M1001S599 24.576000 | ATSM-49-R | ±100 ppm | 24.576 | ±30 ppm | ±3 ppm | -55?C to +125?C | 8 pF |
| M1001S600 16.777216 | ATSM-49-R | ±50 ppm | 16.7772 | ±50 ppm | ±5 ppm | -40?C to +85?C | 15 pF |
| M1001S602 8.000000 | ATSM-49-R | ±50 ppm | 8 | ±30 ppm | ±5 ppm | 0?C to +70?C | 20 pF |
| M1001S609 4.000000 | ATSM-49-R | ±100 ppm | 4 | ±30 ppm | ±3 ppm | -40?C to +125?C | 18 pF |
