当前位置：首页 » 贴片晶振 » Fox晶振 » FOX小体积晶振,FC3VR低抖动晶振,FC3VREEGM50.0-T1电脑主板晶振
FOX小体积晶振,FC3VR低抖动晶振,FC3VREEGM50.0-T1电脑主板晶振
prevnext

FOX小体积晶振,FC3VR低抖动晶振,FC3VREEGM50.0-T1电脑主板晶振

频率：50MHz

尺寸：3225mm

FOX小体积晶振,FC3VR低抖动晶振,FC3VREEGM50.0-T1电脑主板晶振，美国福克斯晶振,FOX晶振，高精度晶振，石英晶体，3225晶振，四脚晶振，小型晶振，低成本晶振，移动网络晶振.无源晶振，低损耗晶振，环保无铅晶振，无源晶振，进口晶振，超小型晶振，FC3VR晶振，FC3VREEGM50.0-T1晶振，智能手表晶振，环保晶振，微型晶振，SMD晶振，无人机晶振。特点:公差低至10ppm，稳定性低至10ppm，温度范围宽至-40C至+85C。
订购热线：0755-27837162
QQ咨询 点击这里给我发消息

陶瓷面封装谐振器,4.0*2.5mm小体积SMD晶振,ECX-42晶振

陶瓷面封装谐振器,4.0*2.5mm小体积SMD晶振,ECX-42晶振

FOX小体积晶振,FC3VR低抖动晶振,FC3VREEGM50.0-T1电脑主板晶振，美国福克斯晶振,FOX晶振，高精度晶振，石英晶体，3225晶振，四脚晶振，小型晶振，低成本晶振，移动网络晶振.无源晶振，低损耗晶振，环保无铅晶振，无源晶振，进口晶振，超小型晶振，FC3VR晶振，FC3VREEGM50.0-T1晶振，智能手表晶振，环保晶振，微型晶振，SMD晶振，无人机晶振。特点:公差低至10ppm，稳定性低至10ppm，温度范围宽至-40C至+85C。

陶瓷面封装谐振器,4.0*2.5mm小体积SMD晶振,ECX-42晶振

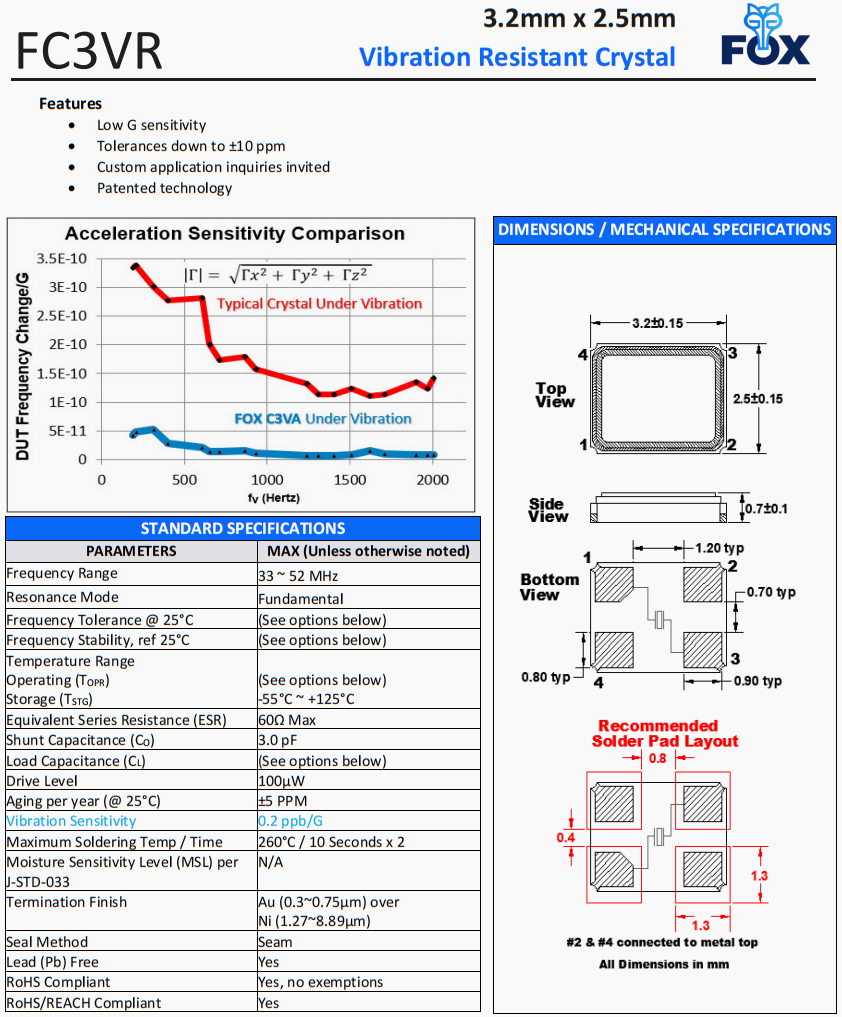

FOX小体积晶振,FC3VR低抖动晶振,FC3VREEGM50.0-T1电脑主板晶振

参数 MAX (Unless otherwise noted)
频率 33 ~ 52 MHz
共振模式 Fundamental
频率容差 (See options below)
频率稳定度 (See options below)
温度范围
工作 (TOPR)
储存 (TSTG)


(See options below)
-55°C ~ +125°C
等效串联电阻 60Ω Max
分流电容 3.0 pF
负载电容 (See options below)
驱动电平 100µW
老化 ±5 PPM
振动灵敏度 0.2 ppb/G
最大焊接温度/时间 260°C / 10 Seconds x 2
温度敏感度 N/A
终止完成 Au (0.3~0.75µm) over Ni (1.27~8.89µm)
密封方法 Seam
无铅 Yes
符合RoHS Yes, no exemptions
符合RoHS/达到要求 Yes
陶瓷面封装谐振器,4.0*2.5mm小体积SMD晶振,ECX-42晶振

FOX小体积晶振,FC3VR低抖动晶振,FC3VREEGM50.0-T1电脑主板晶振

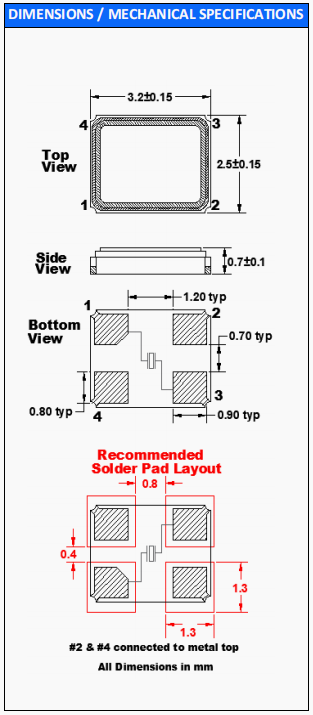

FC3VR 3225

FC3VR

编码 品牌 型号 工作温度 频率 频率稳定度 频率容差 负载电容
FC1BSCBEM27.12-T3 Fox FC1BS -40°C ~ 85°C 27.12 MHz ±50ppm ±30ppm 10 pF
FC1BSCCEM16.0-T3 Fox FC1BS -40°C ~ 85°C 16 MHz ±30ppm ±30ppm 10 pF
FC1BSHFEM32.0-T3 Fox FC1BS -40°C ~ 85°C 32 MHz ±15ppm ±10ppm 10 pF
FC2BSBBMM16.0-T1 Fox FC2BS -40°C ~ 85°C 16 MHz ±50ppm ±50ppm 20 pF
FC2BSBBMM16.0-T3 Fox FC2BS -40°C ~ 85°C 16 MHz ±50ppm ±50ppm 20 pF
FC3BABBKM20.0-T3 Fox FC3BA -40°C ~ 85°C 20 MHz ±50ppm ±50ppm 16 pF
FC3BACCGM20.0-T3 Fox FC3BA -40°C ~ 85°C 20 MHz ±30ppm ±30ppm 12 pF
FC3BQBBDM20.0-T3 Fox FC3BQ -40°C ~ 85°C 20 MHz ±50ppm ±50ppm 8 pF
FC3BQBBMM12.0-T1 Fox FC3BQ -40°C ~ 85°C 12 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM12.0-T3 Fox FC3BQ -40°C ~ 85°C 12 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM24.0-T1 Fox FC3BQ -40°C ~ 85°C 24 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM24.0-T3 Fox FC3BQ -40°C ~ 85°C 24 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM25.0-T1 Fox FC3BQ -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM25.0-T3 Fox FC3BQ -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 20 pF
FC3BQBBVM25.0-T3 Fox FC3BQ -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 7 pF
FC3BSBBEM26.0-T3 Fox FC3BS -40°C ~ 85°C 26 MHz ±50ppm ±50ppm 10 pF
FC3BSBBLM25.0-T3 Fox FC3BS -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 18 pF
FC3BSBBMM25.0-T3 Fox FC3BS -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 20 pF
FC3BSHFEM12.0-T3 Fox FC3BS -40°C ~ 85°C 12 MHz ±15ppm ±10ppm 10 pF
FC3VAEEGM50.0-T3 Fox FC3VA -40°C ~ 85°C 50 MHz ±20ppm ±20ppm 12 pF
FC3VREEDM38.4-T1 Fox FC3VR -40°C ~ 85°C 38.4 MHz ±20ppm ±20ppm 8 pF
FC3VREEDM38.88-T1 Fox FC3VR -40°C ~ 85°C 38.88 MHz ±20ppm ±20ppm 8 pF
FC3VREEDM40.0-T1 Fox FC3VR -40°C ~ 85°C 40 MHz ±20ppm ±20ppm 8 pF
FC3VREEDM48.0-T1 Fox FC3VR -40°C ~ 85°C 48 MHz ±20ppm ±20ppm 8 pF
FC3VREEEM38.4-T1 Fox FC3VR -40°C ~ 85°C 38.4 MHz ±20ppm ±20ppm 10 pF
FC3VREEGM36.0-T1 Fox FC3VR -40°C ~ 85°C 36 MHz ±20ppm ±20ppm 12 pF
FC3VREEGM38.4-T1 Fox FC3VR -40°C ~ 85°C 38.4 MHz ±20ppm ±20ppm 12 pF
FC3VREEGM38.88-T1 Fox FC3VR -40°C ~ 85°C 38.88 MHz ±20ppm ±20ppm 12 pF
FC3VREEGM40.0-T1 Fox FC3VR -40°C ~ 85°C 40 MHz ±20ppm ±20ppm 12 pF
FC3VREEGM50.0-T1 Fox FC3VR -40°C ~ 85°C 50 MHz ±20ppm ±20ppm 12 pF
FC4SDCBGM8.0-T1 Fox FC4SD -40°C ~ 85°C 8 MHz ±50ppm ±30ppm 12 pF
FC4SDCBMM10.0-T1 Fox FC4SD -40°C ~ 85°C 10 MHz ±50ppm ±30ppm 20 pF
FC4SDCBMM12.0-T1 Fox FC4SD -40°C ~ 85°C 12 MHz ±50ppm ±30ppm 20 pF
FC4SDCBMM16.0-T1 Fox FC4SD -40°C ~ 85°C 16 MHz ±50ppm ±30ppm 20 pF
FC4SDCBMM20.0-T1 Fox FC4SD -40°C ~ 85°C 20 MHz ±50ppm ±30ppm 20 pF
FC4SDCBMM25.0-T1 Fox FC4SD -40°C ~ 85°C 25 MHz ±50ppm ±30ppm 20 pF
FC4SDCBMM3.6864-T1 Fox FC4SD -40°C ~ 85°C 3.6864 MHz ±50ppm ±30ppm 20 pF
FC4SDCBMM4.0-T1 Fox FC4SD -40°C ~ 85°C 4 MHz ±50ppm ±30ppm 20 pF
FC4SDCBMM6.0-T1 Fox FC4SD -40°C ~ 85°C 6 MHz ±50ppm ±30ppm 20 pF
FC4SDCBMM8.0-T1 Fox FC4SD -40°C ~ 85°C 8 MHz ±50ppm ±30ppm 20 pF
FC4SDHCMM25.0-T1 Fox FC4SD -40°C ~ 85°C 25 MHz ±30ppm ±10ppm 20 pF
FC5AQBAAM8.0-T1 Fox FC5AQ -40°C ~ 85°C 8 MHz ±100ppm ±50ppm
FC5AQCCMM12.0-T1 Fox FC5AQ -40°C ~ 85°C 12 MHz ±30ppm ±30ppm 20 pF
FC5AQECLM25.0-T1 Fox FC5AQ -40°C ~ 85°C 25 MHz ±30ppm ±20ppm 18 pF
FC5BAEEEM8.0-T1 Fox FC5BA -40°C ~ 85°C 8 MHz ±20ppm ±20ppm 10 pF
FC5BAEEMM8.0-T1 Fox FC5BA -40°C ~ 85°C 8 MHz ±20ppm ±20ppm 20 pF
FC5BQCBKM12.0-T1 Fox FC5BQ -40°C ~ 85°C 12 MHz ±50ppm ±30ppm 16 pF
FC5BQCCMM10.0-T1 Fox FC5BQ -40°C ~ 85°C 10 MHz ±30ppm ±30ppm 20 pF
FC5BQCCMM12.0-T1 Fox FC5BQ -40°C ~ 85°C 12 MHz ±30ppm ±30ppm 20 pF
FC5BQCCMM16.0-T1 Fox FC5BQ -40°C ~ 85°C 16 MHz ±30ppm ±30ppm 20 pF
FC5BQCCMM20.0-T1 Fox FC5BQ -40°C ~ 85°C 20 MHz ±30ppm ±30ppm 20 pF
FC5BQCCMM24.0-T1 Fox FC5BQ -40°C ~ 85°C 24 MHz ±30ppm ±30ppm 20 pF
FC5BQCCMM25.0-T1 Fox FC5BQ -40°C ~ 85°C 25 MHz ±30ppm ±30ppm 20 pF
FC5BQCCMM8.0-T1 Fox FC5BQ -40°C ~ 85°C 8 MHz ±30ppm ±30ppm 20 pF
FC5BSCBLM20.0-T1 Fox FC5BS -40°C ~ 85°C 20 MHz ±50ppm ±30ppm 18 pF
FC5BSCCEM19.6608-T1 Fox FC5BS -40°C ~ 85°C 19.6608 MHz ±30ppm ±30ppm 10 pF
FC5BSHFEM25.0-T1 Fox FC5BS -40°C ~ 85°C 25 MHz ±15ppm ±10ppm 10 pF
FC7ASBAMM9.216-T1 Fox FC7AS -40°C ~ 85°C 9.216 MHz ±100ppm ±50ppm 20 pF
FC7ASBBMM16.0-T1 Fox FC7AS -40°C ~ 85°C 16 MHz ±50ppm ±50ppm 20 pF
FC7ASBBMM9.216-T1 Fox FC7AS -40°C ~ 85°C 9.216 MHz ±50ppm ±50ppm 20 pF
FC7ASCCGM7.6-T1 Fox FC7AS -40°C ~ 85°C 7.6 MHz ±30ppm ±30ppm 12 pF
FC7BSBBGM25.0-T1 Fox FC7BS -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 12 pF
FC7BSCCEM6.0-T1 Fox FC7BS -40°C ~ 85°C 6 MHz ±30ppm ±30ppm 10 pF
FC7BSCCMM6.0-T1 Fox FC7BS -40°C ~ 85°C 6 MHz ±30ppm ±30ppm 20 pF
FC7BSCCMM7.3728-T1 Fox FC7BS -40°C ~ 85°C 7.3728 MHz ±30ppm ±30ppm 20 pF
FC7BSCCMM8.0-T1 Fox FC7BS -40°C ~ 85°C 8 MHz ±30ppm ±30ppm 20 pF
FC8AQCCMM3.6864-T1 Fox FC8AQ -40°C ~ 85°C 3.6864 MHz ±30ppm ±30ppm 20 pF
FC8AQCCMM4.0-T1 Fox FC8AQ -40°C ~ 85°C 4 MHz ±30ppm ±30ppm 20 pF
FC8AQCCMM6.0-T1 Fox FC8AQ -40°C ~ 85°C 6 MHz ±30ppm ±30ppm 20 pF
FC9SDCBMM8.0-T1 Fox FC9SD -40°C ~ 85°C 8 MHz ±50ppm ±30ppm 20 pF
FK121EIWM0.032768-T5 Fox FK121 -40°C ~ 85°C 32.768 kHz ±20ppm 9 pF
FK122EIHM0.032768-T3 Fox FK122 -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
FK124EIWM0.032768-T5 Fox FK124 -40°C ~ 85°C 32.768 kHz ±20ppm 9 pF
FK125EIVM0.032768 Fox FK125 -40°C ~ 85°C 32.768 kHz ±20ppm 7 pF
FK135EIHM0.032768-T3 Fox FK135 -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
FK13LEIBM0.032768-T3 Fox FK13L -40°C ~ 85°C 32.768 kHz ±20ppm 6 pF
FK145EIHM0.032768-T3 Fox FK145 -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
FK161EIHM0.032768-T5 Fox FK161 -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
FKFSREIBM0.032768-T3 Fox FKFSR -40°C ~ 85°C 32.768 kHz ±20ppm 6 pF
FKFSREIHM0.032768-T3 Fox FKFSR -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
FKFSXEIHM0.032768-T3 Fox FKFSX -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
FKT26EIBM0.032768 Fox FKT26 -40°C ~ 85°C 32.768 kHz ±20ppm 6 pF
FKT38EIHM0.032768 Fox FKT38 -40°C ~ 85°C 32.768 kHz ±20ppm 12.5 pF
