耐高温晶振SG-210SEBA汽车音响控制器专用晶振X1G004611A04300
晶振作为数字电路之魂，随着电子信息产业不断发展和智能化，晶振在汽车领域的应用最为巨量和广泛。

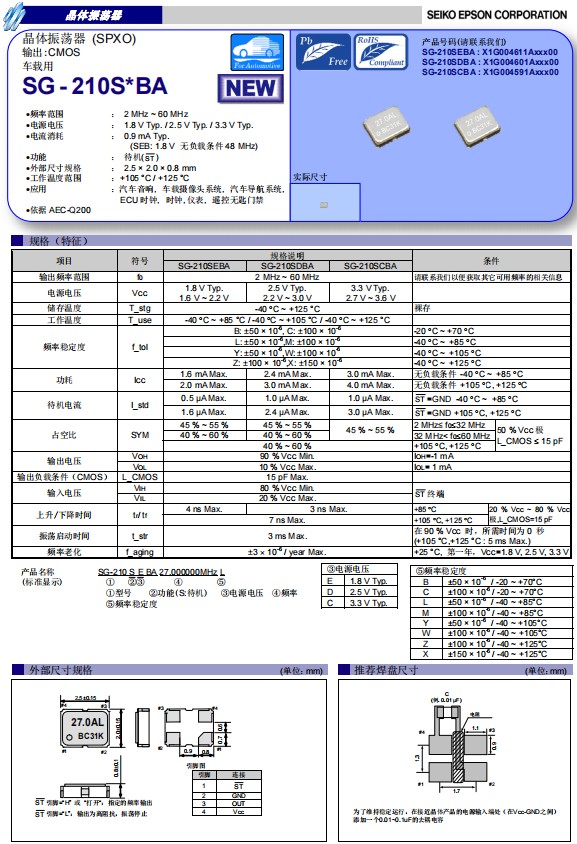

爱普生晶振SG-210SEBA是一款CMOS输出石英晶体振荡器(SPXO)，小体积晶振尺寸2.5x2.0mm四脚贴片晶振，有源晶振，电源电压1.8V至3.3V，频率范围2MHz至60MHz，宽工作温度可达到-40℃至125℃，该产品具有超小型，轻薄型，低抖动，低功耗，耐高温，耐振、耐冲击等优良的耐环境特性，满足无铅焊接的高温回流温度曲线要求，符合AEC-Q200标准。非常适用于汽车电子应用，汽车音响控制器，车载摄像头系统，汽车导航系统，时钟，仪表等。是汽车电子应用中的理想选择.
耐高温晶振SG-210SEBA汽车音响控制器专用晶振X1G004611A04300
 产品编码
|
 型号
|
 频率
|
爱普生晶振 |
 输出波
|
 电源电压
|
 工作温度
|
| X1G004611A00100 | SG-210SEBA | 24.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A00300 | SG-210SEBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 125°C |
| X1G004611A00400 | SG-210SEBA | 20.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 125°C |
| X1G004611A00500 | SG-210SEBA | 27.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A01200 | SG-210SEBA | 24.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A01300 | SG-210SEBA | 33.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A01400 | SG-210SEBA | 16.666600MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A01600 | SG-210SEBA | 14.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A01700 | SG-210SEBA | 37.125000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A01900 | SG-210SEBA | 13.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A02000 | SG-210SEBA | 10.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A02100 | SG-210SEBA | 48.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A02200 | SG-210SEBA | 16.660000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A02400 | SG-210SEBA | 14.745600MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A02500 | SG-210SEBA | 16.640000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A02600 | SG-210SEBA | 24.576000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A02700 | SG-210SEBA | 12.288000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A02800 | SG-210SEBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A03000 | SG-210SEBA | 48.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A03100 | SG-210SEBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 125°C |
| X1G004611A03300 | SG-210SEBA | 24.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 125°C |
| X1G004611A03400 | SG-210SEBA | 20.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A03500 | SG-210SEBA | 41.250000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A03600 | SG-210SEBA | 16.640000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A03700 | SG-210SEBA | 16.510000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A03800 | SG-210SEBA | 9.600000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A04100 | SG-210SEBA | 16.666600MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A04200 | SG-210SEBA | 33.300000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A04300 | SG-210SEBA | 25.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 85°C |
| X1G004611A04400 | SG-210SEBA | 33.000000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |
| X1G004611A04500 | SG-210SEBA | 49.500000MHz | 2.50x2.00x0.90mm | CMOS | 1.600 to 2.200V | -40 to 105°C |

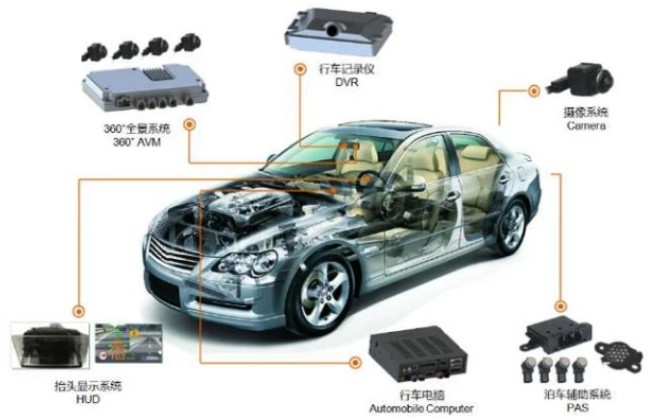

汽车的应用场景包括导航、远程呼叫、紧急救援、防盗跟踪、道路救援、电话、资讯娱乐、下载应用，自动驾驶等等，为了实现人与汽车系统自由的交互，并提供实时的信息互动、支付、交通、天气等功能，汽车对车规级晶振的依赖只会越来越强。
汽车电子要求元件应当具有更宽广的工作温度范围和应对恶劣工作环境的特性，爱普生晶振提供了许多契合汽车应用特殊要求的不同种类的石英晶体和实时时钟模块。这些产品通过了AEC-Q200汽车电子认证的严格测试要求，并成功应用在下列领域：胎压监测(TPMS)，引擎控制，音响和多媒体系统，汽车GPS导航，汽车控制面板和无键盘的控制系统。SG-210SEBA有源晶振便是最适合使用在汽车电子产品上的石英晶体振荡器。
