车载控制器TCXO晶振TG-5006CG编码X1G004211002700
温补晶振即温度补偿晶体振荡器（TCXO），是通过附加的温度补偿电路使由周围温度变化产生的振荡频率变化量削减的一种石英晶体振荡器。

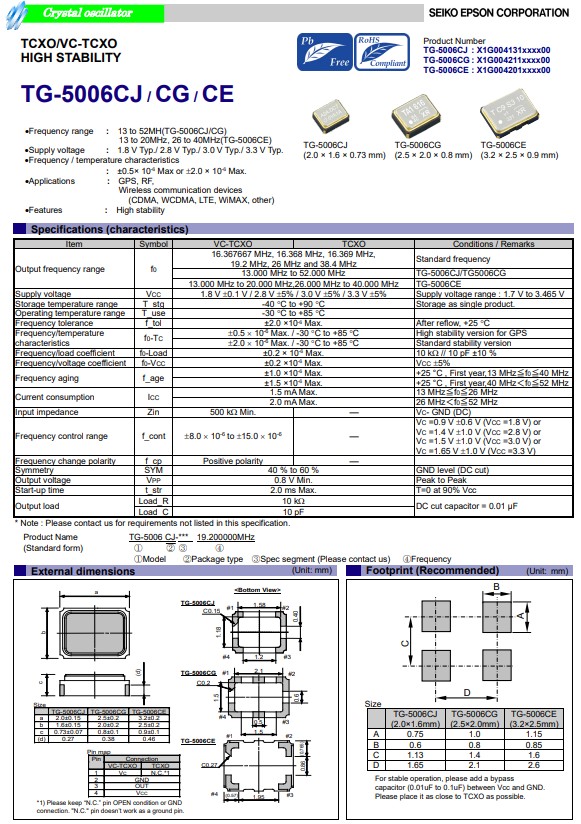

日本进口爱普生晶振TG-5006CG，是一款温补晶体振荡器(TCXO)，小体积晶振尺寸2.5x2.0mm有源晶振，温补晶振，频率范围:13MHz至52MHz，电源电压1.8V至3.3V低消耗电流，该产品质量稳定，品质优越，具有超小型，轻薄型，低电源电压，低抖动，低耗能，低损耗，低功耗，低电平等特点，主要应用于5G移动通讯设备，无线蓝牙，高端智能手机，平板电脑，车载控制器，医疗设备等。
车载控制器TCXO晶振TG-5006CG编码X1G004211002700
| 产品编码 |
 型号
|
 频率
|
 爱普生晶振
|
 输出波
|
 电源电压
|
 精度
|
 工作温度
|
| X1G004211000100 | TG-5006CG | 26.000000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.660 to 2.940 V | +/-2.0 ppm | -30 to +85 °C |
| X1G004211000200 | TG-5006CG | 26.000000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm | -30 to +85 °C |
| X1G004211000300 | TG-5006CG | 26.000000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm | -30 to +85 °C |
| X1G004211000400 | TG-5006CG | 16.368000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm | -30 to +85 °C |
| X1G004211000500 | TG-5006CG | 26.000000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 1.700 to 1.900 V | +/-2.0 ppm | -30 to +85 °C |
| X1G004211000600 | TG-5006CG | 16.367667MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-1.0 ppm | -30 to +85 °C |
| X1G004211000800 | TG-5006CG | 16.369000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm | -30 to +85 °C |
| X1G004211001100 | TG-5006CG | 38.400000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm | -30 to +85 °C |
| X1G004211001500 | TG-5006CG | 16.369000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm | -30 to +85 °C |
| X1G004211001600 | TG-5006CG | 19.200000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm | -30 to +85 °C |
| X1G004211002700 | TG-5006CG | 30.000000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm | -30 to +85 °C |
| X1G004211003100 | TG-5006CG | 24.000000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.850 to 3.150 V | +/-2.0 ppm | -30 to +85 °C |
| X1G004211003300 | TG-5006CG | 49.999800MHz | 2.50x2.00x0.80mm | Clipped sine wave | 1.700 to 3.465 V | +/-2.0 ppm | -30 to +85 °C |
| X1G004211003400 | TG-5006CG | 26.000000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 2.520 to 3.080 V | +/-2.0 ppm | -40 to +85 °C |
| X1G004211003700 | TG-5006CG | 24.000000MHz | 2.50x2.00x0.80mm | Clipped sine wave | 1.700 to 3.465 V | +/-1.5 ppm | -30 to +85 °C |
车载控制器TCXO晶振TG-5006CG编码X1G004211002700
晶振是电子产品都得依赖的一款电子器件,它是通常应用到一些高端电子产品当中。削波正弦波形是TCXO晶振最受欢迎的输出选项,这是为什么呢,主要原因有两点.其一是低功耗,改善了热特性以及更好的老化和频率稳定性能;其二则是比CMOS输出更好的相位噪声性能.也就是说石英晶振在采用削波正玄波作为输出方式之后会极大的减少谐波分量的数量,使得晶振产品具备低相位噪声的性能.
