百利通亚陶晶振UX31系列编码UX31F6203Z具有超低抖动性能的高性能CMOS贴片振荡器
我们的超低抖动石英晶体振荡器（UX系列）专为实现低至0.1ps的超低抖动而设计。该系列非常适合需要超低抖动时钟源以实现高速数据传输的网络和服务器系统。该系列不仅为系统工程师的设计提供了宽裕的性能，而且还提供了包括各种输出逻辑和大小在内的选项。

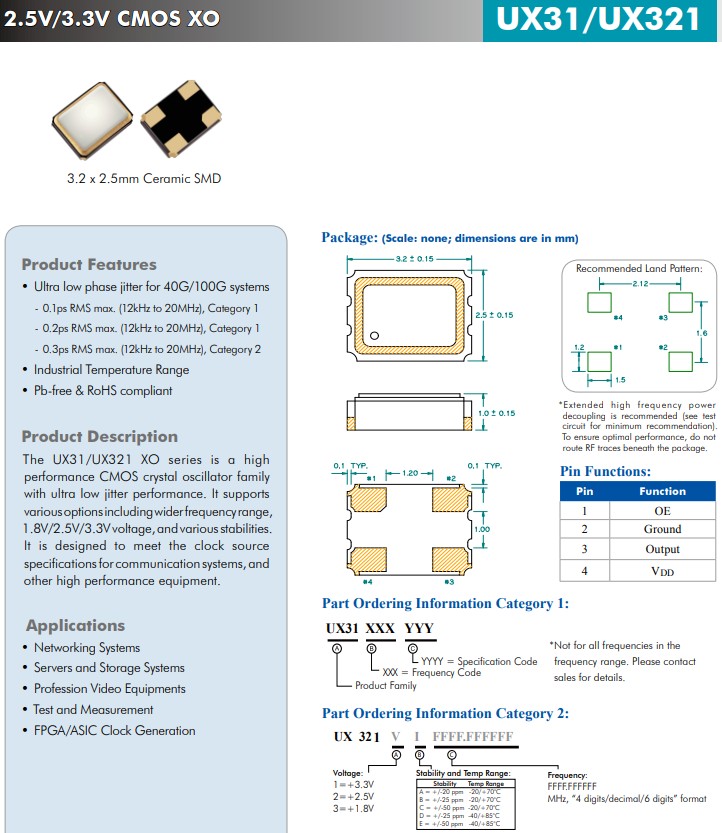

百利通亚陶晶振UX31/UX321 XO系列是具有超低抖动性能的高性能CMOS贴片振荡器系列。小体积晶振尺寸3.2x2.5mm，它支持多种选择，包括更宽的频率范围、1.8V/2.5V/3.3V电压和各种稳定性。它旨在满足通信系统和其他高性能设备的时钟源规范。
产品特点：
用于 40G/100G 系统的超低相位抖动
0.1ps RMS最大值。(12kHz至20MHz),1 类
0.2ps RMS最大值。(12kHz至20MHz),1 类
0.3ps RMS最大值。(12kHz至20MHz),2 类
工业温度范围
无铅且符合RoHS标准
应用：网络系统，服务器和存储系统，专业视频设备，测试和测量，FPGA/ASIC时钟生成
百利通亚陶晶振UX31系列编码UX31F6203Z具有超低抖动性能的高性能CMOS贴片振荡器
| HX3127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm |
| HX21480001 | Diodes Incorporated | SaRonix-eCera™ HX | 48MHz | ±50ppm |
| HX21480001 | Diodes Incorporated | SaRonix-eCera™ HX | 48MHz | ±50ppm |
| HX21480001 | 亚陶晶振 | SaRonix-eCera™ HX | 48MHz | ±50ppm |
| NX7031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm |
| NX7031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm |
| NX7031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm |
| HX2127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm |
| HX2127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm |
| HX2127001Q | Diodes Incorporated | SaRonix-eCera™ HX | 27MHz | ±25ppm |
| SHPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SHPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SHPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SQPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SQPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SQPCIE100 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 100MHz | ±50ppm |
| SN10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm |
| SN10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm |
| SN10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm |
| SQA000001 | Diodes Incorporated | SaRonix-eCera™ SQ | 100MHz | ±50ppm |
| SQA000001 | Diodes Incorporated | SaRonix-eCera™ SQ | 100MHz | ±50ppm |
| SQA000001 | Diodes Incorporated | SaRonix-eCera™ SQ | 100MHz | ±50ppm |
| NX53D3301Z | Diodes Incorporated | SaRonix-eCera™ NX | 133.333333MHz | ±50ppm |
| NX53D3301Z | Diodes Incorporated | SaRonix-eCera™ NX | 133.333333MHz | ±50ppm |
| NX53D3301Z | Diodes Incorporated | SaRonix-eCera™ NX | 133.333333MHz | ±50ppm |
| JT2553P0016.369000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.369MHz | ±500ppb |
百利通亚陶晶振UX31系列编码UX31F6203Z具有超低抖动性能的高性能CMOS贴片振荡器
产品参数
| 类别 | 超低抖动 XO |
|---|---|
| 产品系列 | UX3 |
| 合规性（仅汽车支持 PPAP） | 标准 |
| 频率范围 (MHz) | 40至162 |
| 抖动均方根 (ps) | <0.1 至 0.3 |
| 稳定性 (PPM) | 20 到 50 |
| 包装尺寸（毫米） | 3.2x2.5x1.0贴片晶振 |
| 包装类型 | 陶瓷缝 |
| 输出逻辑 | CMOS |
| 电源电压 (V) | 3.3, 2.5 |
| 垫 | 4 |
| JT2553P0016.369000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.369MHz | ±500ppb |
| JT2553P0016.369000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.369MHz | ±500ppb |
| JT15260001 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb |
| JT15260001 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb |
| JT15260001 | Diodes Incorporated | SaRonix-eCera™ JT | 26MHz | ±500ppb |
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm |
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm |
| NX72F5506Z | Diodes Incorporated | SaRonix-eCera™ NX | 155.52MHz | ±50ppm |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm |
| NX72F6208Z | Diodes Incorporated | SaRonix-eCera™ NX | 156.25MHz | ±50ppm |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm |
| HX51706001 | Diodes Incorporated | SaRonix-eCera™ HX | 70.656MHz | ±50ppm |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm |
| HX7011C0020.000000 | Diodes Incorporated | SaRonix-eCera™ HX | 20MHz | ±25ppm |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm |
| PBF620074Z | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm |
| NX3241E0100.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 100MHz | ±50ppm |
| PXC500007 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±50ppm |
| PXC500007 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±50ppm |
百利通亚陶晶振UX31系列编码UX31F6203Z具有超低抖动性能的高性能CMOS贴片振荡器
我们提供一流的晶体 (Xtal) 和石英振荡器 (XO)，针对您的设计要求进行了优化。
我们广泛的晶体和晶体振荡器提供：输出频率范围从 kHz到GHz
完整的输出组合：CMOS、CML、LVPECL、LVDS、削波正弦波和HCSL
完整的 XO 产品组合，包括标准 XO、VCXO、TCXO 到超低抖动和高温XO
从1.0V到3.3V的多个电压范围（甚至是传统的 5V）
大量 SMT 封装选项组合，可满足您的封装要求
| UX31/UX321 | 20~50 | 3.2x2.5x1.0 | 陶瓷缝 | 40 至 162 | <0.1~ 0.3 | CMOS | 3.32.5 | 4 | UX3 | 2.5V/3.3V、3.2x2.5mm、超低抖动 CMOS 晶体振荡器 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| UX51/UX501 | 20~50 | 5.0 x 3.2 x 1.2 | 陶瓷缝 | 40 至 162 | <0.1~ 0.3 | CMOS | 3.32.5 | 4 | UX5 | 2.5V/3.3V、5.0x3.2mm、超低抖动 CMOS 晶体振荡器 | |
| UX52/UX502 | 20~50 | 5.0 x 3.2 x 1.2 | 陶瓷缝 | 100 至 162 (2.5V/3.3V) | <0.1~ 0.3 | LVPECL | 3.32.5 | 6 | UX5 | 2.5V/3.3V、5.0x3.2mm、超低抖动 LVPECL 晶体振荡器 | |
| UX53/UX503 | 20~50 | 5.0 x 3.2 x 1.2 | 陶瓷缝 | 100 至 162 (2.5V/3.3V) | <0.1~ 0.3 | LVDS | 3.32.5 | 6 | UX5 | 2.5V/3.3V、5.0x3.2mm、超低抖动 LVDS 晶体振荡器 | |
| UX71/UX701 | 20~50 | 7.0 x 5.0 x 1.4 | 陶瓷缝 | 40 至 162 | <0.1~ 0.3 | CMOS | 3.32.5 | 4 | UX7 | 2.5V/3.3V、7.0x5.0mm、超低抖动 CMOS 晶体振荡器 | |
| UX72/UX702 | 20~50 | 7.0 x 5.0 x 2.0 | 陶瓷缝 | 100 至 162 (2.5V/3.3V) | <0.1~ 0.3 | LVPECL | 3.32.5 | 6 | UX7 | 2.5V/3.3V、7.0x5.0mm、超低抖动 LVPECL 晶体振荡器 | |
| UX73/UX703 | 20~50 | 7.0 x 5.0 x 2.0 | 陶瓷缝 | 100 至 162 (2.5V/3.3V) | <0.1~ 0.3 | LVDS | 3.32.5 | 6 | UX7 | 2.5V/3.3V、7.0x5.0mm、超低抖动 LVDS 晶体振荡器 |
