可编程有源晶振X1G005311003400专用于5G移动通讯设备

返回列表 来源：金洛鑫 浏览：- 发布日期：2022-10-14 15:35:55【大 中 小】
分享到：
爱普生晶振SG-9101CB系列是具有CMOS输出的可编程石英晶体振荡器。虽然该系列提供了与早期类似的频率和其它参数的同样容易的可编程性Epson产品，宽工作温度范围-40℃至+85℃/105℃。此外这款振荡器采用5.0x3.2mm封装，有助于电子制造商节省电路板空间，同时还提供以下常见封装尺寸:3.2x2.5mm、2.5x2.0mm和7.0x5.0mm四脚贴片晶振。用户可以使用Epson SG-Writer II(单独销售)将产品编程为所需的输出频率以及所需的扩频设置。 这也将大大有助于提高性能、降低功耗要求、缩短开发周期和小批量生产。该系列被广泛用于5G移动通讯设备，无线模块，工业控制，消费电子，智能安防，物联网，车载电子，光电技术及各种变频调速设备等通讯设备。

可编程有源晶振X1G005311003400专用于5G移动通讯设备

爱普生晶振 频率 型号 尺寸(长宽高) 输出波 电源电压 工作温度
X1G005311001100 65.536000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311001200 22.996140MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311001300 14.747720MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311001400 32.959000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311001500 16.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311001600 33.025840MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311001700 32.959000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311001800 10.500000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311001900 18.432000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311002000 18.432000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311002100 18.432000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311002200 18.432000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311002300 25.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005311002400 50.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311002500 27.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311002600 40.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311002700 19.660800MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311002800 25.175000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311002900 10.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311003000 10.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311003100 12.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005311003200 16.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005311003300 36.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311003400 26.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311003500 33.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311003600 33.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005311003700 33.330000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005311003800 40.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005311003900 16.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311004000 25.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311004100 62.500000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311004200 33.330000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311004300 19.600000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C

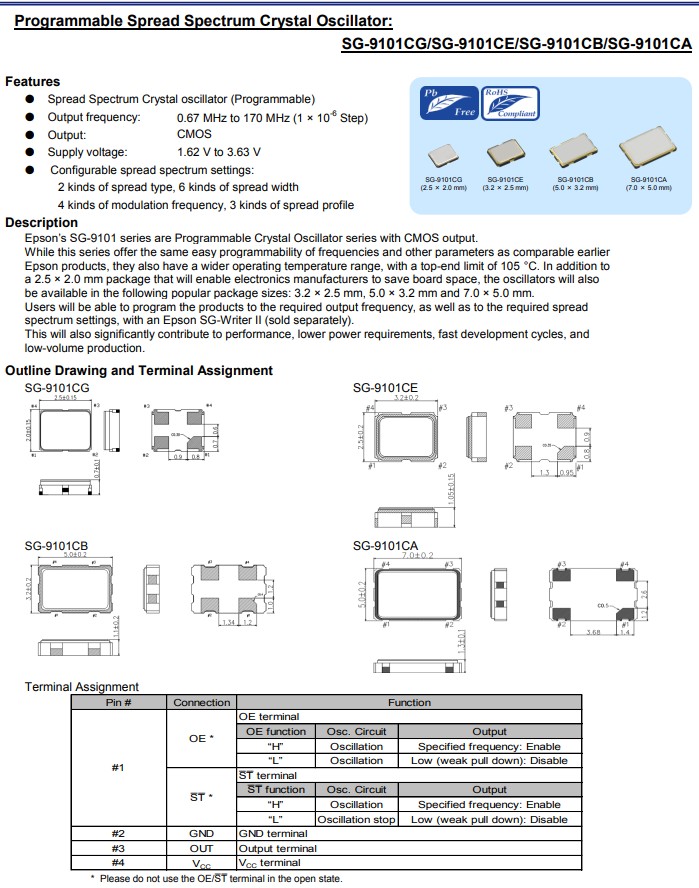

SG-9101CG，SG-9101CE,SG-9101CB,SG-9101CA
X1G005311004400 26.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311004500 40.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311004600 16.666000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311004700 60.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311004800 40.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311004900 54.480000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311005000 71.901000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311005100 32.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311005200 26.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311005300 47.990000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311005400 66.660000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311005500 32.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311005600 80.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005311005700 33.333300MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311005800 45.325000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311005900 16.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311006000 25.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311006100 62.500000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311006200 33.333300MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311006300 66.660000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311006400 16.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311006500 66.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311006600 12.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311006700 12.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311006800 25.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005311006900 19.990800MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311007000 39.680000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311007100 25.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311007200 40.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311007300 33.330000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311007400 20.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311007500 12.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311007600 20.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005311007700 20.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005311007800 16.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005311007900 16.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005311008000 66.666667MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311008100 33.333300MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311008200 27.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311008300 20.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311008400 20.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311008500 54.480000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311008600 64.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005311008700 66.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311008800 70.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311008900 70.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311009000 25.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311009100 20.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311009200 40.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311009300 65.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G005311009400 24.500000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311009500 25.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311009600 25.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G005311009700 56.000000MHz SG-9101CB 5.00x3.20x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C

可编程有源晶振X1G005311003400专用于5G移动通讯设备

可编程晶振，很多人依然陌生的一头雾水，其实在各种精密的电子仪器上，可编程晶振已得到广泛的应用了。在普及可编程晶振的时候，也有人对这款‘新型产品’有不少的知识盲区，例如可编程晶振无源和有源晶振都会烧录吗？可编程现在被普及且广泛使用的只有有源晶振，因为可编程晶振可定制所以支持封装标准也较多，从国际封装QFN封装到7050、5032、3225、2520甚至更小的2016，客户都可以按需选择，同理也支持1.8V、 2.5V、2.8V、3.0V、3.3V等多种工作电压匹配。还有客户会把可编程晶振和温补晶振混淆，其实可编程晶振内部集成了温度补偿电路，本身也具备温度自动补偿功能。
