X1G0042610008差分晶振编码是哪家的?
标题给大家卖了个神秘关子，不过也不难猜是什么品牌的，很多人看到这条编码，应该大部分内行人都能看出这是爱普生晶振的原厂编码，但是要具体说出是什么型号的，属于哪个类型，代表哪些参数，估计国内很少或者没有可以全部分辨出来的。废话不多说了，接下来就为广大新老客户，分析一下这条X1G0042610008晶振编码。爱普生集团旗下的晶振型号有几百种，而且分类齐全，32.768K晶振，MHZ石英晶振，插件晶振，SPXO晶体振荡器，温补晶振，压控晶振，恒温晶振，差分晶振，压控温补晶振，可编程晶振等都有生产。
差分晶振是近几年业内公认的，未来发展比较有潜力的晶振类型，X1G0042610008就是爱普生差分晶振的原厂编码，型号是SG5032VAN晶振，输出方式是LVDS，LV-PECL两种，是输出差分信号的，所以也可以叫做差分晶振。
X1G0042610008差分晶振系列编码：
| 差分晶振原厂编码 | 型号 | 频率 | 尺寸 | 输出 | 工作温度 |
|
X1G0042610001 |
SG5032VAN |
100.000000MHz |
5.00x3.20x1.20mm |
LVDS |
-40to85°C |
|
X1G0042610002 |
SG5032VAN |
125.000000MHz |
5.00x3.20x1.20mm |
LVDS |
-40to85°C |
|
X1G0042610003 |
SG5032VAN |
125.006250MHz |
5.00x3.20x1.20mm |
LVDS |
-40to85°C |
|
X1G0042610005 |
SG5032VAN |
200.000000MHz |
5.00x3.20x1.20mm |
LVDS |
-40to85°C |
|
X1G0042610006 |
SG5032VAN |
156.250000MHz |
5.00x3.20x1.20mm |
LVDS |
-40to85°C |
|
X1G0042610007 |
SG5032VAN |
400.000000MHz |
5.00x3.20x1.20mm |
LVDS |
-40to85°C |
|
X1G0042610008 |
SG5032VAN |
106.250000MHz |
5.00x3.20x1.20mm |
LVDS |
-40to85°C |
|
X1G0042610009 |
SG5032VAN |
212.500000MHz |
5.00x3.20x1.20mm |
LVDS |
-40to85°C |
|
X1G0042610010 |
SG5032VAN |
74.250000MHz |
5.00x3.20x1.20mm |
LVDS |
-40to85°C |
|
X1G0042610011 |
SG5032VAN |
148.500000MHz |
5.00x3.20x1.20mm |
LVDS |
-40to85°C |
|
X1G0042710021 |
SG5032EAN |
125.006250MHz |
5.00x3.20x1.20mm |
LV-PECL |
-40to85°C |
|
X1G0042710023 |
SG5032EAN |
100.000000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-40to85°C |
|
X1G0042710024 |
SG5032EAN |
200.000000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-40to85°C |
|
X1G0042710025 |
SG5032EAN |
400.000000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-40to85°C |
|
X1G0042710026 |
SG5032EAN |
106.250000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-40to85°C |
|
X1G0042710027 |
SG5032EAN |
212.500000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-40to85°C |
|
X1G0042710028 |
SG5032EAN |
74.250000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-40to85°C |
|
X1G0042710029 |
SG5032EAN |
148.500000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-40to85°C |
|
X1G0042710030 |
SG5032EAN |
75.000000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-40to85°C |
|
X1G0042710031 |
SG5032EAN |
150.000000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-40to85°C |
|
X1G0042710032 |
SG5032EAN |
155.520000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-40to85°C |
|
X1G0042710033 |
SG5032EAN |
156.250000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-40to85°C |
|
X1G0042710034 |
SG5032EAN |
312.500000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-40to85°C |
|
X1G0042710035 |
SG5032EAN |
312.515625MHz |
5.00x3.20x1.20mm |
LV-PECL |
-40to85°C |
|
X1G0042710036 |
SG5032EAN |
161.132800MHz |
5.00x3.20x1.20mm |
LV-PECL |
-40to85°C |
|
X1G0042710038 |
SG5032EAN |
700.000000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-40to85°C |
|
X1G0042710039 |
SG5032EAN |
125.000000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-20to70°C |
|
X1G0042710040 |
SG5032EAN |
125.006250MHz |
5.00x3.20x1.20mm |
LV-PECL |
-20to70°C |
|
X1G0042710042 |
SG5032EAN |
100.000000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-20to70°C |
|
X1G0042710043 |
SG5032EAN |
200.000000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-20to70°C |
|
X1G0042710044 |
SG5032EAN |
400.000000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-20to70°C |
|
X1G0042710045 |
SG5032EAN |
106.250000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-20to70°C |
|
X1G0042710046 |
SG5032EAN |
212.500000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-20to70°C |
|
X1G0042710047 |
SG5032EAN |
74.250000MHz |
5.00x3.20x1.20mm |
LV-PECL |
-20to70°C |

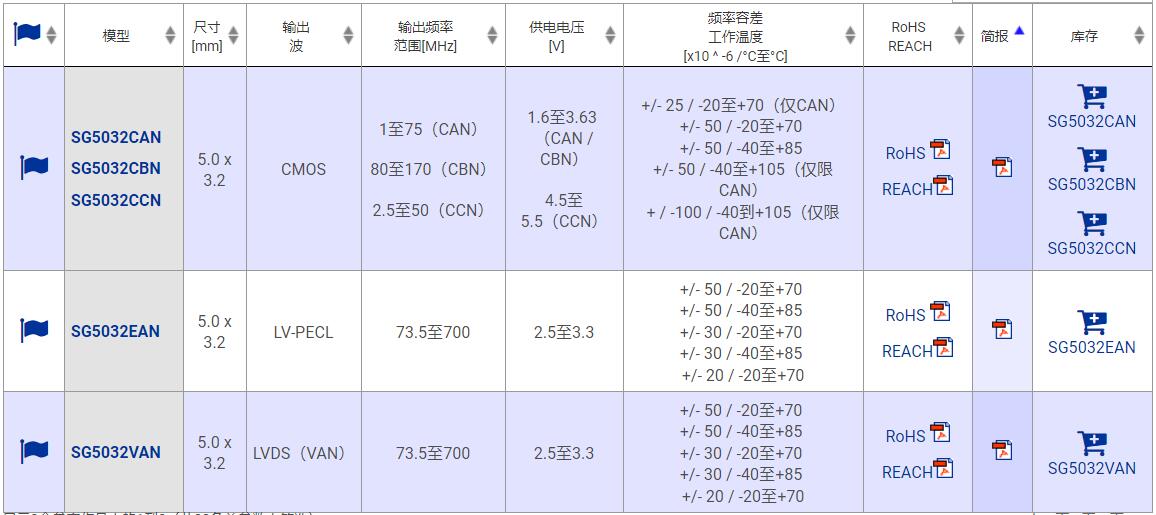

爱普生5032差分晶振型号表：
爱普生品牌的5032差分晶振在世界范围内享誉盛名，具有低相位抖动，低相噪，低插损等优良特性，而且因为体积小，在市场上备受欢迎，一直是行业的楷模，在2010年的时候荣获全球晶振厂家NO.1的称号。
