如果石英晶体没有信号输出该怎么解决X1E0000210729？

返回列表 来源：金洛鑫 浏览：- 发布日期：2023-08-22 15:50:32【大 中 小】
分享到：

如果石英晶体没有信号输出，请用示波器或频率计数器测量晶体两端输出的信号。如果没有信号输出，请按照以下步骤1-1 ~步骤1-3进行检查。如果晶体的出端(Xout)有信号输出，但进端(Xin)没有信号输出，请按照以下步骤1-4到步骤1-5检查晶体。

1-1.请卸下水晶，并测试其频率和负载电容，看看他们是否振动和符合您的规格使用专业的测试机器。你也可以把它寄给你的供应商，让他们为你测试。

1-2.如果出现以下任何一种情况，晶体不不振动，其负载电容不与您的规格不符，或者当前频率与您的目标频率之间存在巨大差距，请将晶体发送给您的供应商进行质量分析。如果频率和负载电容符合您的规格，我们将需要进行等效电路测试。

1-3.等效电路测试

1

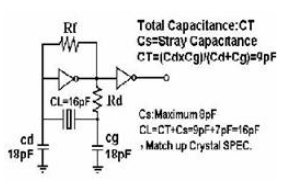

1-3-1.一般来说，微处理器的振荡电路来源于如下所示的科尔皮兹电路:

上图所示，Cd和Cg是外部负载电容，它们已经内置在芯片组中。(请参考芯片组规格)Rf是200kω~ 1mω的反馈电阻。它通常内置在芯片组中。 Rd是470? ~ 1K?的极限电阻。该电阻对于普通电路不是必需的，而对于具有高电源的电路才是必需的。

1-3-2.一个稳定的振荡电路需要一个负电阻，其值至少应为晶体电阻的五倍。可以写成|-R| > 5rr。例如，为了获得稳定的振荡电路，当晶体电阻值为40?©时，IC的负电阻值必须在?200?©以下。

1-3-3.€?Negative电阻是衡量振荡电路质量的标准。在某些情况下，如老化、热变、电压变化等，如果 q值较低，电路可能不会振荡。因此，按照以下说明测量负电阻(-R)是非常重要的:

2

(1)将电阻R与晶体串联

(2)将R的值从振荡的起点调整到停止点

(3)测量振荡时的R值

(4)您将能够获得负电阻的值，|?R| = R + Rr, Rr =晶体电阻

附注:连接电路的杂散电容可能会影响测量值

1-3-4.如果晶体参数正常，但在振荡电路中工作不稳定，我们必须找出IC的电阻值是否太低而无法驱动电路。如果是这样的话，我们有三种方法来改善这种情况:

-降低外部电容(Cd和Cg)的值，采用其他更低负载电容(CL)的晶体。
-采用电阻(Rr)更低的晶体。

-采用Cd和Cg不等值的设计。我们可以增加Cd (Xout)的负载电容，降低Cg (Xin)的负载电容到rai

1 - 4.当有Xout输出而没有Xin输出时，则表示后电极后端电路的功耗非常大。我们可以在电路的输出端和后电极之间增加一个缓冲器来驱动后端电路。

1 - 5.除了上面提到的1-4的方法外，你还可以按照步骤1-3-4的三个方法去做。如果您的问题无法解决，请联系晶体或IC制造商的现场应用工程师以获得进一步的帮助。
