汽车胎压检测专用晶振NX3225SA-27.000MHZ-STD-CSR-1
日本电波工业株式NDK晶振,型号NX3225S,是一款小体积晶振尺寸3.2×2.5×0.55mm四脚贴片晶振,无源晶振,石英晶体谐振器,无铅环保晶振,频率范围:12MHz~50MHz,工作温度范围:-40℃至+125℃,在极端恶劣的环境条件下也能具有稳定的启动特性,优异的抗环境性能,如耐热、振动和抗冲击性,回流温度分布(可用于无铅焊接),符合AEC-Q200,紧凑的表面安装晶体单元,特别石英晶体谐振器适用于汽车电子设备,汽车电子控制板,汽车动力转向控制器,汽车遥控器,汽车音影晶振,汽车胎压检测,通讯设备,无线网络,蓝牙模块,医疗设备,平板电脑等应用。汽车胎压检测专用晶振NX3225SA-27.000MHZ-STD-CSR-1
汽车胎压检测专用晶振NX3225SA-27.000MHZ-STD-CSR-1
原厂编码
品牌
型号
频率
频率稳定度
包装/封装
NX3225SA-24.000MHZ-STD-CSR-1
NDK晶振
NX3225SA
24MHz
±15ppm
4-SMD, No Lead
NX3225SA-16.000MHZ-STD-CSR-1
NDK晶振
NX3225SA
16MHz
±15ppm
4-SMD, No Lead
NX3225SA-32.000MHZ-STD-CSR-1
NDK晶振
NX3225SA
32MHz
±15ppm
4-SMD, No Lead
NX3225SA-26.000MHZ-STD-CSR-1
NDK晶振
NX3225SA
26MHz
±15ppm
4-SMD, No Lead
NX3225SA-20.000MHZ-STD-CSR-1
NDK晶振
NX3225SA
20MHz
±15ppm
4-SMD, No Lead
NX3225SA-14.31818MHZ-STD-CSR-1
NDK晶振
NX3225SA
14.31818MHz
±15ppm
4-SMD, No Lead
NX3225SA-24.576MHZ-STD-CSR-1
NDK晶振
NX3225SA
24.576MHz
±15ppm
4-SMD, No Lead
NX3225SA-27.000MHZ-STD-CSR-1
NDK晶振
NX3225SA
27MHz
±15ppm
4-SMD, No Lead
NX3225SA-32M-EXS00A-02994
NDK晶振
NX3225SA
32MHz
±15ppm
4-SMD, No Lead
NX3225SA-25.000M-STD-CSR-3
NDK晶振
NX3225SA
25MHz
±15ppm
4-SMD, No Lead
NX3225SA-20.000M-STD-CSR-3
NDK晶振
NX3225SA
20MHz
±15ppm
4-SMD, No Lead
NX3225SA-26.000M-STD-CSQ-1
NDK晶振
NX3225SA
26MHz
±10ppm
4-SMD, No Lead
NX3225SA-30.000M-STD-CSR-3
NDK晶振
NX3225SA
30MHz
±15ppm
4-SMD, No Lead
NX3225SA-32MHZ-EXS00A-CS02368
NDK晶振
NX3225SA
32MHz
±16ppm
4-SMD, No Lead
NX3225SA-25.000M-STD-CRS-2
NDK晶振
NX3225SA
25MHz
±50ppm
4-SMD, No Lead
NX3225SA-27M-STD-CRS-2
NDK晶振
NX3225SA
27MHz
±50ppm
4-SMD, No Lead
NX3225SA-12MHZ-STD-CSR-6
NDK晶振
NX3225SA
12MHz
±25ppm
4-SMD, No Lead
NX3225SA-16MHZ-STD-CSR-6
NDK晶振
NX3225SA
16MHz
±25ppm
4-SMD, No Lead
NX3225SA-26.000000MHZ-G4
NDK晶振
NX3225SA
26MHz
±10ppm
4-SMD, No Lead
NX3225SA-26.000000MHZ-B1
NDK晶振
NX3225SA
26MHz
±10ppm
4-SMD, No Lead
NX3225SA-16.000000MHZ-T1
NDK晶振
NX3225SA
16MHz
±10ppm
4-SMD, No Lead
NX3225SA-26.000000MHZ-G2
NDK晶振
NX3225SA
26MHz
±11ppm
4-SMD, No Lead
NX3225SA-16.000000MHZ-B3
NDK晶振
NX3225SA
16MHz
±15ppm
4-SMD, No Lead
NX3225SA-26.000000MHZ-G3
NDK晶振
NX3225SA
26MHz
±10ppm
4-SMD, No Lead
NX3225SA-39.000000MHZ-B4
NDK晶振
NX3225SA
39MHz
±10ppm
4-SMD, No Lead
NX3225SA-20.000M-STD-CRS-2
NDK晶振
NX3225SA
20MHz
±50ppm
4-SMD, No Lead
NX3225SA-16.000M-STD-CRS-2
NDK晶振
NX3225SA
16MHz
±50ppm
4-SMD, No Lead
NX3225SA-26.000M-STD-CSR-3
NDK晶振
NX3225SA
26MHz
±15ppm
4-SMD, No Lead
NX3225SA-40.000MHZ-STD-CSR-1
NDK晶振
NX3225SA
40MHz
±15ppm
4-SMD, No Lead
NX3225SA-20.000000MHZ-B2
NDK晶振
NX3225SA
20MHz
±15ppm
4-SMD, No Lead
NX3225SA-114.285MHZ-EXS00A-CS06528
NDK晶振
NX3225SA
114.285MHz
±20ppm
4-SMD, No Lead
NX3225SA-27.12M-STD-CSR-3
NDK晶振
NX3225SA
27.12MHz
±15ppm
4-SMD, No Lead
NX3225SA-12.000M-STD-CRS-2
NDK晶振
NX3225SA
12MHz
±50ppm
4-SMD, No Lead
NX3225SA-12.000MHZ-STD-CSR-1
NDK晶振
NX3225SA
12MHz
±15ppm
4-SMD, No Lead
NX3225SA-13.56M-STD-CSR-3
无源晶振
NX3225SA
13.56MHz
±15ppm
4-SMD, No Lead
NX3225SA-40M-EXS00A-CS03880
NDK晶振
NX3225SA
40MHz
±17ppm
4-SMD, No Lead
NX3225SA-25.000M-STD-CSR-6
NDK晶振
NX3225SA
25MHz
±25ppm
4-SMD, No Lead
NX3225SA-12MHZ-STD-CSR-3
NDK晶振
NX3225SA
12MHz
±15ppm
4-SMD, No Lead
NX3225SA-24.000M-STD-CSR-3
NDK晶振
NX3225SA
24MHz
±15ppm
4-SMD, No Lead
NX3225SA-22.000MHZ-STD-CSR-1
NDK晶振
NX3225SA
22MHz
±15ppm
4-SMD, No Lead
NX3225SA-25.000MHZ-STD-CSR-1
NDK晶振
NX3225SA
25MHz
±15ppm
4-SMD, No Lead
NX3225SA-12.288M-STD-CSR-3
NDK晶振
NX3225SA
12.288MHz
±15ppm
4-SMD, No Lead
NX3225SA-13M-STD-CSR-6
NDK晶振
NX3225SA
13MHz
±25ppm
4-SMD, No Lead
NX3225SA-12.288M-STD-CRS-2
NDK晶振
NX3225SA
12.288MHz
±50ppm
4-SMD, No Lead
NX3225SA-44.000MHZ-STD-CSR-1
NDK晶振
NX3225SA
44MHz
±15ppm
4-SMD, No Lead
NX3225SA-16MHZ-STD-CSR-3
NDK晶振
NX3225SA
16MHz
±15ppm
4-SMD, No Lead
NX3225SA-40.000M-STD-CRS-2
NDK晶振
NX3225SA
40MHz
±50ppm
4-SMD, No Lead
NX3225DA-16.000MHZ-EXS00A-03311
NDK晶振
NX3225SA
16MHz
-
4-SMD, No Lead

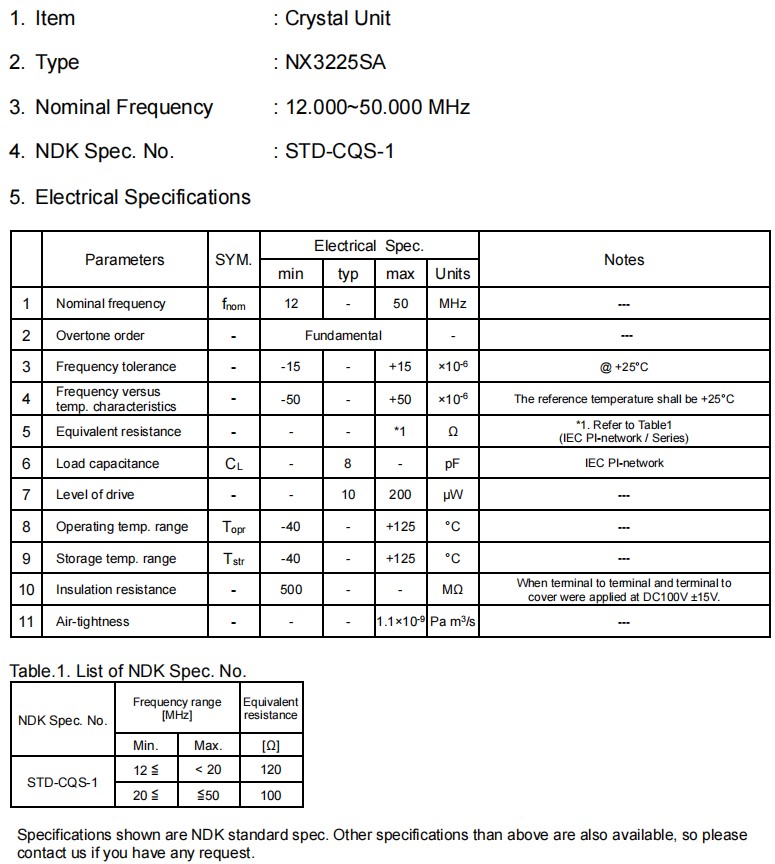

NX3225SA晶振特征:
紧凑型表面安装晶体单元,适用于汽车设备
紧凑且薄(型号:3.2×2.5×0.55 mm)谐振器
即使在极其恶劣的环境条件下,它也具有稳定的启动特性
优异的耐环境性能
如耐热性、抗震性和抗震性
回流温度曲线(可用于无铅焊接)
符合AEC-Q200标准
汽车胎压检测专用晶振NX3225SA-27.000MHZ-STD-CSR-1,日本电波工业株式NDK晶振会社作为压电石英晶体元器件、压电石英晶振、有源晶振、压电陶瓷谐振器、石英晶振器件的专业生产厂家,以“通过对客户的服务,为社会繁荣和世界和平作出贡献”的创业理念为基础于1948年成立。现在我们作为提供电子业必不可少的,在丰富用途被广泛使用的晶体元器件产品以及应用水晶技术的传感器等新的高附加价值产品的频率综合生产厂家,正以企业的继续成长为目标而努力。
日本电波工业株式NDK贴片晶振厂家经营范围:晶体谐振器、晶体振荡器等晶体元器件、应用器件、石英晶振,陶瓷晶振,声表面谐振器,有源晶振,压控振荡器,贴片晶振,人工水晶及芯片等的晶体相关产品的制造与销售。
