如今在晶振的采购和咨询活动中,编码和代码的使用已经非常广泛,很多用户都识得编码的重要性,因为它可以代表一颗完整而准确的晶体晶振,即使你对要采购的产品几乎完全不懂,只要有编码一样可以买到正确的产品.之前金洛鑫电子已经介绍了京瓷公司的石英晶体系列原厂编码,近年来Kyocera晶体振荡器也越来越受欢迎,如KC3225K40.0000C1GE00贴片晶振系列已被广泛应用到军事,航空航天,船舶呼叫系统,雷达导航,工业,汽车,精密仪器仪表,医疗器械等高端产品.
在对KC3225K40.0000C1GE00晶振进行讲解之前,我们可以先来了解下这个编码的系列料号,通常Kyocera品牌的编码,会把料号放在最前面,也就是KC3225K这个型号.它是日本京セラ株式会社旗下石英晶体振荡器模块的,拥有超小型,超薄型SMD型封装,接缝密封技术生产使其可靠性高,CMOS输出逻辑,标准电压+1.8V~+5.0V.属于低电流消耗,低相位噪声型高性能振荡器产品.工作温度根据不同的产品要求可选-10℃~+70℃,-40℃~+85℃,-40℃~+105℃,可以适应比较恶劣的环境.
京瓷晶振KC3225K的频率范围是1.500MHz~160.000MHz,意味着这颗料号拥有多种不同的规格,KC3225K40.0000C1GE00我们可以仔细来看下这条编码,在系列料号后面的数字代表的是这个频率范围内,40.000MHz的这个频点.

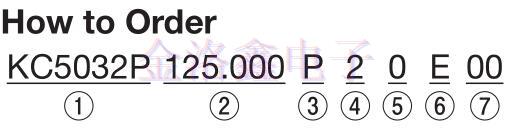

标注了①的是该系列的型号,②指的是该贴片晶振频率,因为每一条编码的频率都是固定的,标注③的是振荡器的输出类型,常见的输出逻辑主要有CMOS,HCMOS,LVDS,LV-PECL,SCL,LVCMOS,削峰正弦波和方波等,用不同的英文字母代替.后面的④则是电源电压的意思,现在的有源晶振电压基本都是+1.8V,+2.5V,+2.8V,+3.0V,+3.3V和+5.0V等,基本上没有产品使用更大的电压了,因为越低的电压才能降低功耗.⑤指的是有源晶振的频率公差也就是频率稳定度,标准⑥的是对称/INH功能(45/55％,待机),最后⑦的意义并不大,只是客户特殊型号的后缀,或者产品的包装数量规格.
|
KC3225K40.0000C1GE00 |
KC3225K晶振 |
40MHz |
(3.20mmx2.50mm) |
|
KC3225K20.0000C1GE00 |
KC3225K晶振 |
20MHz |
(3.20mmx2.50mm) |
|
KC3225K27.0000C1GE00 |
KC3225K晶振 |
27MHz |
(3.20mmx2.50mm) |
|
KC3225K32.0000C1GE00 |
KC3225K晶振 |
32MHz |
(3.20mmx2.50mm) |
|
KC3225K33.3333C1GE00 |
KC3225K晶振 |
33.3333MHz |
(3.20mmx2.50mm) |
|
KC3225K48.0000C1GE00 |
KC3225K晶振 |
48MHz |
(3.20mmx2.50mm) |
|
KC3225K50.0000C1GE00 |
KC3225K晶振 |
50MHz |
(3.20mmx2.50mm) |
|
KC2520K48.0000C1GE00 |
KC2520K晶振 |
48MHz |
(2.50mmx2.00mm) |
|
KC2520K10.0000C1GE00 |
KC2520K晶振 |
10MHz |
(2.50mmx2.00mm) |
|
KC2520K33.3333C1GE00 |
KC2520K晶振 |
33.3333MHz |
(2.50mmx2.00mm) |
|
KC3225K1.84320C1GE00 |
KC3225K晶振 |
1.8432MHz |
(3.20mmx2.50mm) |
|
KC3225K7.37280C1GE00 |
KC3225K晶振 |
7.3728MHz |
(3.20mmx2.50mm) |
|
KC3225K8.00000C1GE00 |
KC3225K晶振 |
8MHz |
(3.20mmx2.50mm) |
|
KC3225K10.0000C1GE00 |
KC3225K晶振 |
10MHz |
(3.20mmx2.50mm) |
|
KC3225K12.0000C1GE00 |
KC3225K晶振 |
12MHz |
(3.20mmx2.50mm) |
|
KC3225K14.7456C1GE00 |
KC3225K晶振 |
14.7456MHz |
(3.20mmx2.50mm) |
|
KC3225K18.4320C1GE00 |
KC3225K晶振 |
18.432MHz |
(3.20mmx2.50mm) |
|
KC3225K32.7680C1GE00 |
KC3225K晶振 |
32.768MHz |
(3.20mmx2.50mm) |
|
KC3225K33.0000C1GE00 |
KC3225K晶振 |
33MHz |
(3.20mmx2.50mm) |
|
KC3225K60.0000C1GE00 |
KC3225K晶振 |
60MHz |
(3.20mmx2.50mm) |
|
KC3225K66.6667C1GE00 |
KC3225K晶振 |
66.6667MHz |
(3.20mmx2.50mm) |
|
KC2520K1.84320C1GE00 |
KC2520K晶振 |
1.8432MHz |
(2.50mmx2.00mm) |
|
KC2520K3.68640C1GE00 |
KC2520K晶振 |
3.6864MHz |
(2.50mmx2.00mm) |
|
KC2520K4.00000C1GE00 |
KC2520K晶振 |
4MHz |
(2.50mmx2.00mm) |
|
KC2520K4.09600C1GE00 |
KC2520K晶振 |
4.096MHz |
(2.50mmx2.00mm) |
|
KC2520K7.37280C1GE00 |
KC2520K晶振 |
7.3728MHz |
(2.50mmx2.00mm) |
|
KC2520K8.00000C1GE00 |
KC2520K晶振 |
8MHz |
(2.50mmx2.00mm) |
|
KC2520K12.2880C1GE00 |
KC2520K晶振 |
12.288MHz |
(2.50mmx2.00mm) |
|
KC2520K24.0000C1GE00 |
KC2520K晶振 |
24MHz |
(2.50mmx2.00mm) |
|
KC2520K25.0000C1GE00 |
KC2520K晶振 |
25MHz |
(2.50mmx2.00mm) |
|
KC2520K32.0000C1GE00 |
KC2520K晶振 |
32MHz |
(2.50mmx2.00mm) |
|
KC2520K32.7680C1GE00 |
KC2520K晶振 |
32.768MHz |
(2.50mmx2.00mm) |
|
KC2520K33.0000C1GE00 |
KC2520K晶振 |
33MHz |
(2.50mmx2.00mm) |
|
KC2520K40.0000C1GE00 |
KC2520K晶振 |
40MHz |
(2.50mmx2.00mm) |
|
KC2016K24.5760C1GE00 |
KC2016K晶振 |
24.576MHz |
(2.00mmx1.60mm) |
Kyocera品牌的普通贴片振荡器系列产品目前最小的尺寸是2016mm,为了符合不同用户的产品设计要求,几乎每一款的用途都比较广泛,而且有多种规格可以选择,比如从1.500MHz~180.000MHz的频率范围,KC3225K40.0000C1GE00晶振就属于宽频类型的,从1.500MHz~160.000MHz之间都可以选择,如果对其他规格有特殊要求,可以联系供应商处理.关注金洛鑫电子http://www.quartzcrystal.cn/,可以获取到更多其他品牌的贴片晶振原厂编码新闻资讯或技术资料.
|
