当前位置：首页 » 行业资讯 » 瑞士微晶提供超薄石英晶体CM9V-T1A32.768kHz12.5pF±20ppmTAQC

瑞士微晶提供超薄石英晶体CM9V-T1A32.768kHz12.5pF±20ppmTAQC

返回列表 来源：金洛鑫 浏览：- 发布日期：2023-07-15 18:13:06【大 中 小】
分享到：

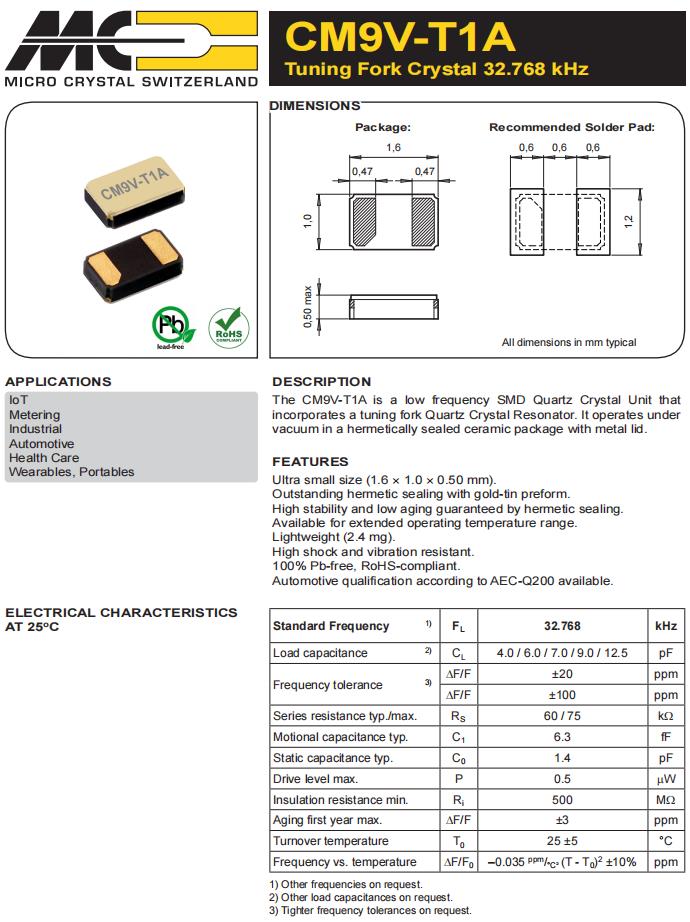

瑞士微晶生产的CM9V-T1A是32.768KHz石英晶体,最大厚度为0.35英寸，尺寸仅为1.6 x 1.0毫米。CM9V-T1A是一个低频SMD石英晶体单元，其中包括一个音叉石英晶体谐振器，它在一个陶瓷包装与金属盖密封的真空下工作。先进的封装几何结构增强了产品在移动中的机械灵活性，这种新的微小几何形状增强了弯曲半径至关重要的应用中的电路，它补充了来自www.renata.com的新的可弯曲薄膜电池。

CM9V-T1A石英晶振特性：

超小尺寸(1.6 × 1.0 × 0.50 mm)

卓越的密封与金-锡预制

高稳定性，低老化，密封保证

可扩展工作温度范围

重量轻(2.4毫克)

高抗冲击和抗振动

100%不含铅，符合rohs标准

具备AEC-Q200汽车资质

该晶振非常适合于：

物联网

计量

工业

汽车

智能卡、笔记本电脑

医疗保健、电子医疗治疗膏贴

可穿戴设备和活动腕带

cm9v-t1a

制造商零件编号 制造商 描述 频率 容差
MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C 32.768 kHz 100 PPM
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C 32.768 kHz 100 PPM
CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz 20 PPM
CM8V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C 32.768 kHz 20 PPM
MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR 32.768 kHz 20 PPM
CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM LOW ESR 32.768 kHz 20 PPM
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM LOW ESR 32.768 kHz 20 PPM
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz 20 PPM
CM7V-T1A-32.768k-7pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 32.768 kHz 20 PPM
CM7V-T1A-32.768k-7pF-100PPM-TB-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 32.768 kHz 100 PPM
CC7V-T1A-32.768k-9pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 32.768 kHz 20 PPM
CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC Micro 晶振 晶体 32.768 kHz 12.5 pF 100 PPM -55/+125C 32.768 kHz 100 PPM
CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C 32.768 kHz 10 PPM
CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz 20 PPM
CM7V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 32.768 kHz 20 PPM
CC7V-T1A-32.768k-7pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 32.768 kHz 20 PPM
CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C 32.768 kHz 20 PPM
CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz 20 PPM
CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM LOW ESR 32.768 kHz 20 PPM
CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CM7V-T1A-32.768k-7pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 32.768 kHz 20 PPM
CC7V-T1A-32.768k-9pF-100PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 32.768 kHz 100 PPM
CM7V-T1A-32.768k-9pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 32.768 kHz 20 PPM
CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz 20 PPM
CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C 32.768 kHz 10 PPM
CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C 32.768 kHz 100 PPM
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C 32.768 kHz 20 PPM
CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C 32.768 kHz 20 PPM
CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C 32.768 kHz 100 PPM
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C 32.768 kHz 20 PPM
CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C 32.768 kHz 20 PPM
CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM 0.3mm 32.768 kHz 20 PPM
CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM 0.3mm 32.768 kHz 20 PPM
CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM 0.3mm 32.768 kHz 20 PPM
CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro 晶振 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C 100 kHz 100 PPM
CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C 32.768 kHz 10 PPM
CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C 32.768 kHz 10 PPM
CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM
CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C 32.768 kHz 20 PPM
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C 32.768 kHz 20 PPM
CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 32.768 kHz 20 PPM
CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C 32.768 kHz 10 PPM
CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC Micro 晶振 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C 32.768 kHz 20 PPM
CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C 32.768 kHz 20 PPM

瑞士微晶陶瓷或金属封装的32.768 kHz和低频(LF)石英晶体单元有低ESR和宽负载电容(CL)范围的音叉晶体可供选择，这些XTAL产品满足市场对振荡器或微控制器等低功耗定时器件、高可靠性、扩展工作温度和符合AEC-Q200汽车认证的要求，已在全球数千种应用中取得了良好的成绩！
