数字视频专用HCMOS时钟振荡器CE3291-33.333

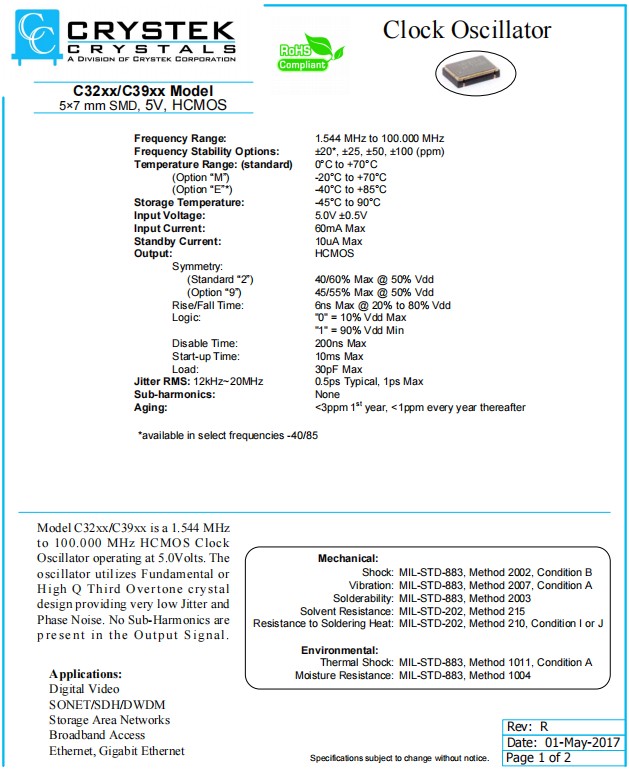

美国Crystek瑞斯克晶振C32xx系列,C3291晶振是一个小体积晶振尺寸7.0x5.0mm四脚贴片晶振,有源晶振,石英晶振,石英晶体振荡器,SMD晶振,频率范围为:1.544MHz至100.000MHz的HCMOS时钟振荡器,工作电压5.0V。该振荡器利用基本或高Q第三泛音晶体设计,该石英晶振提供非常低的抖动和相位噪声。输出信号中没有子谐波。应用范围:数字视频,声波仪/SDH/DWDM,存储区域网络,宽带接入,以太网、千兆以太网。数字视频专用HCMOS时钟振荡器CE3291-33.333
原厂代码 | 品牌 | 型号 | 类型 | 频率 | 频率稳定度 | 工作温度 |
C3291-1.544 | Crystek晶振 | C3291 | XO (Standard) | 1.544MHz | ±25ppm | 0°C ~ 70°C |
C3291-1.843200 | Crystek晶振 | C3291 | XO (Standard) | 1.8432MHz | ±25ppm | 0°C ~ 70°C |
C3291-10.000 | Crystek晶振 | C3291 | XO (Standard) | 10MHz | ±25ppm | 0°C ~ 70°C |
C3291-12.000 | Crystek晶振 | C3291 | XO (Standard) | 12MHz | ±25ppm | 0°C ~ 70°C |
C3291-12.288 | Crystek晶振 | C3291 | XO (Standard) | 12.288MHz | ±25ppm | 0°C ~ 70°C |
C3291-12.352 | Crystek晶振 | C3291 | XO (Standard) | 12.352MHz | ±25ppm | 0°C ~ 70°C |
C3291-14.318180 | Crystek晶振 | C3291 | XO (Standard) | 14.31818MHz | ±25ppm | 0°C ~ 70°C |
C3291-15.360 | Crystek晶振 | C3291 | XO (Standard) | 15.36MHz | ±25ppm | 0°C ~ 70°C |
C3291-16.000 | Crystek晶振 | C3291 | XO (Standard) | 16MHz | ±25ppm | 0°C ~ 70°C |
C3291-16.384 | Crystek晶振 | C3291 | XO (Standard) | 16.384MHz | ±25ppm | 0°C ~ 70°C |
C3291-18.432 | 瑞斯克晶振 | C3291 | XO (Standard) | 18.432MHz | ±25ppm | 0°C ~ 70°C |
C3291-19.440 | Crystek晶振 | C3291 | XO (Standard) | 19.44MHz | ±25ppm | 0°C ~ 70°C |
C3291-2.048 | Crystek晶振 | C3291 | XO (Standard) | 2.048MHz | ±25ppm | 0°C ~ 70°C |
C3291-20.000 | Crystek晶振 | C3291 | XO (Standard) | 20MHz | ±25ppm | 0°C ~ 70°C |
C3291-20.480 | Crystek晶振 | C3291 | XO (Standard) | 20.48MHz | ±25ppm | 0°C ~ 70°C |
C3291-24.000 | Crystek晶振 | C3291 | XO (Standard) | 24MHz | ±25ppm | 0°C ~ 70°C |
C3291-24.704 | Crystek晶振 | C3291 | XO (Standard) | 24.704MHz | ±25ppm | 0°C ~ 70°C |
C3291-25.000 | Crystek晶振 | C3291 | XO (Standard) | 25MHz | ±25ppm | 0°C ~ 70°C |
C3291-3.686400 | Crystek晶振 | C3291 | XO (Standard) | 3.6864MHz | ±25ppm | 0°C ~ 70°C |
C3291-30.000 | Crystek晶振 | C3291 | XO (Standard) | 30MHz | ±25ppm | 0°C ~ 70°C |
C3291-32.000 | Crystek晶振 | C3291 | XO (Standard) | 32MHz | ±25ppm | 0°C ~ 70°C |
C3291-32.768 | Crystek晶振 | C3291 | XO (Standard) | 32.768MHz | ±25ppm | 0°C ~ 70°C |
C3291-33.000 | Crystek晶振 | C3291 | XO (Standard) | 33MHz | ±25ppm | 0°C ~ 70°C |
C3291-33.333 | Crystek晶振 | C3291 | XO (Standard) | 33.333MHz | ±25ppm | 0°C ~ 70°C |
C3291-35.000 | Crystek晶振 | C3291 | XO (Standard) | 35MHz | ±25ppm | 0°C ~ 70°C |
C3291-4.000 | Crystek晶振 | C3291 | XO (Standard) | 4MHz | ±25ppm | 0°C ~ 70°C |
C3291-40.000 | Crystek晶振 | C3291 | XO (Standard) | 40MHz | ±25ppm | 0°C ~ 70°C |
C3291-44.736 | Crystek晶振 | C3291 | XO (Standard) | 44.736MHz | ±25ppm | 0°C ~ 70°C |
C3291-45.000 | Crystek晶振 | C3291 | XO (Standard) | 45MHz | ±25ppm | 0°C ~ 70°C |
C3291-49.152 | Crystek晶振 | C3291 | XO (Standard) | 49.152MHz | ±25ppm | 0°C ~ 70°C |
C3291-50.000 | Crystek晶振 | C3291 | XO (Standard) | 50MHz | ±25ppm | 0°C ~ 70°C |
C3291-51.840 | Crystek晶振 | C3291 | XO (Standard) | 51.84MHz | ±25ppm | 0°C ~ 70°C |
C3291-6.176 | Crystek晶振 | C3291 | XO (Standard) | 6.176MHz | ±25ppm | 0°C ~ 70°C |
C3291-7.372800 | Crystek晶振 | C3291 | XO (Standard) | 7.3728MHz | ±25ppm | 0°C ~ 70°C |
C3291-8.000 | Crystek晶振 | C3291 | XO (Standard) | 8MHz | ±25ppm | 0°C ~ 70°C |
CE3291-1.544 | Crystek晶振 | C3291 | XO (Standard) | 1.544MHz | ±25ppm | -40°C ~ 85°C |
CE3291-1.843200 | Crystek晶振 | C3291 | XO (Standard) | 1.8432MHz | ±25ppm | -40°C ~ 85°C |
CE3291-10.000 | Crystek晶振 | C3291 | XO (Standard) | 10MHz | ±25ppm | -40°C ~ 85°C |
CE3291-12.000 | Crystek晶振 | C3291 | XO (Standard) | 12MHz | ±25ppm | -40°C ~ 85°C |
CE3291-12.288 | Crystek晶振 | C3291 | XO (Standard) | 12.288MHz | ±25ppm | -40°C ~ 85°C |
CE3291-12.352 | Crystek晶振 | C3291 | XO (Standard) | 12.352MHz | ±25ppm | -40°C ~ 85°C |
CE3291-14.318180 | Crystek晶振 | C3291 | XO (Standard) | 14.31818MHz | ±25ppm | -40°C ~ 85°C |
CE3291-15.360 | Crystek晶振 | C3291 | XO (Standard) | 15.36MHz | ±25ppm | -40°C ~ 85°C |
CE3291-16.000 | Crystek晶振 | C3291 | XO (Standard) | 16MHz | ±25ppm | -40°C ~ 85°C |
CE3291-16.384 | Crystek晶振 | C3291 | XO (Standard) | 16.384MHz | ±25ppm | -40°C ~ 85°C |
CE3291-18.432 | Crystek晶振 | C3291 | XO (Standard) | 18.432MHz | ±25ppm | -40°C ~ 85°C |
CE3291-19.440 | Crystek晶振 | C3291 | XO (Standard) | 19.44MHz | ±25ppm | -40°C ~ 85°C |
CE3291-2.048 | Crystek晶振 | C3291 | XO (Standard) | 2.048MHz | ±25ppm | -40°C ~ 85°C |
CE3291-20.000 | Crystek晶振 | C3291 | XO (Standard) | 20MHz | ±25ppm | -40°C ~ 85°C |
CE3291-20.480 | Crystek晶振 | C3291 | XO (Standard) | 20.48MHz | ±25ppm | -40°C ~ 85°C |
CE3291-24.000 | Crystek晶振 | C3291 | XO (Standard) | 24MHz | ±25ppm | -40°C ~ 85°C |
CE3291-24.704 | Crystek晶振 | C3291 | XO (Standard) | 24.704MHz | ±25ppm | -40°C ~ 85°C |
CE3291-25.000 | Crystek晶振 | C3291 | XO (Standard) | 25MHz | ±25ppm | -40°C ~ 85°C |
CE3291-3.686400 | Crystek晶振 | C3291 | XO (Standard) | 3.6864MHz | ±25ppm | -40°C ~ 85°C |
CE3291-30.000 | Crystek晶振 | C3291 | XO (Standard) | 30MHz | ±25ppm | -40°C ~ 85°C |
CE3291-32.000 | Crystek晶振 | C3291 | XO (Standard) | 32MHz | ±25ppm | -40°C ~ 85°C |
CE3291-32.768 | Crystek晶振 | C3291 | XO (Standard) | 32.768MHz | ±25ppm | -40°C ~ 85°C |
CE3291-33.000 | Crystek晶振 | C3291 | XO (Standard) | 33MHz | ±25ppm | -40°C ~ 85°C |
CE3291-33.333 | Crystek晶振 | C3291 | XO (Standard) | 33.333MHz | ±25ppm | -40°C ~ 85°C |
CE3291-35.000 | Crystek晶振 | C3291 | 有源晶振 | 35MHz | ±25ppm | -40°C ~ 85°C |
CE3291-4.000 | Crystek晶振 | C3291 | XO (Standard) | 4MHz | ±25ppm | -40°C ~ 85°C |
CE3291-40.000 | Crystek晶振 | C3291 | XO (Standard) | 40MHz | ±25ppm | -40°C ~ 85°C |
CE3291-6.176 | Crystek晶振 | C3291 | XO (Standard) | 6.176MHz | ±25ppm | -40°C ~ 85°C |
CE3291-7.372800 | Crystek晶振 | C3291 | XO (Standard) | 7.3728MHz | ±25ppm | -40°C ~ 85°C |
CE3291-8.000 | Crystek晶振 | C3291 | XO (Standard) | 8MHz | ±25ppm | -40°C ~ 85°C |
C3291-60.000 | Crystek晶振 | C3291 | XO (Standard) | 60MHz | ±25ppm | 0°C ~ 70°C |
C3291-64.000 | Crystek晶振 | C3291 | XO (Standard) | 64MHz | ±25ppm | 0°C ~ 70°C |
C3291-66.666600 | Crystek晶振 | C3291 | XO (Standard) | 66.6666MHz | ±25ppm | 0°C ~ 70°C |
CE3291-44.736 | Crystek晶振 | C3291 | XO (Standard) | 44.736MHz | ±25ppm | -40°C ~ 85°C |
CE3291-45.000 | Crystek晶振 | C3291 | XO (Standard) | 45MHz | ±25ppm | -40°C ~ 85°C |
CE3291-49.152 | Crystek晶振 | C3291 | XO (Standard) | 49.152MHz | ±25ppm | -40°C ~ 85°C |
C3291-75.000 | Crystek晶振 | C3291 | XO (Standard) | 75MHz | ±25ppm | 0°C ~ 70°C |
CE3291-50.000 | Crystek晶振 | C3291 | XO (Standard) | 50MHz | ±25ppm | -40°C ~ 85°C |
CE3291-51.840 | Crystek晶振 | C3291 | XO (Standard) | 51.84MHz | ±25ppm | -40°C ~ 85°C |
CE3291-60.000 | Crystek晶振 | C3291 | XO (Standard) | 60MHz | ±25ppm | -40°C ~ 85°C |
CE3291-64.000 | Crystek晶振 | C3291 | XO (Standard) | 64MHz | ±25ppm | -40°C ~ 85°C |
CE3291-66.666600 | Crystek晶振 | C3291 | XO (Standard) | 66.6666MHz | ±25ppm | -40°C ~ 85°C |
CE3291-75.000 | Crystek晶振 | C3291 | XO (Standard) | 75MHz | ±25ppm | -40°C ~ 85°C |
C3291-80.000 | Crystek晶振 | C3291 | XO (Standard) | 80MHz | ±25ppm | 0°C ~ 70°C |
CE3291-80.000 | Crystek晶振 | C3291 | XO (Standard) | 80MHz | ±25ppm | -40°C ~ 85°C |
C3291-100.000 | Crystek晶振 | C3291 | XO (Standard) | 100MHz | ±25ppm | 0°C ~ 70°C |
C3291-106.250 | Crystek晶振 | C3291 | XO (Standard) | 106.25MHz | ±25ppm | 0°C ~ 70°C |
CE3291-100.000 | Crystek晶振 | C3291 | XO (Standard) | 100MHz | ±25ppm | -40°C ~ 85°C |
CE3291-106.250 | Crystek晶振 | C3291 | XO (Standard) | 106.25MHz | ±25ppm | -40°C ~ 85°C |
