Silicon晶振550CD74M2500DGR光学模块应用VCXO振荡器

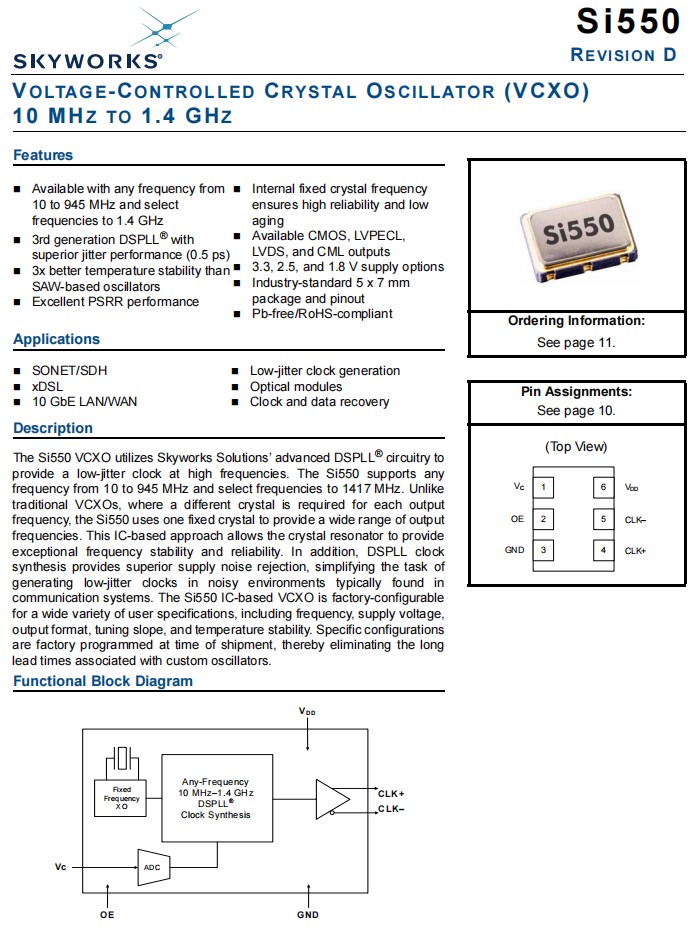

Silicon晶振型号Si550 VCXO压控晶振利用天空解决方案的先进DSPLL®电路提供一个高频低抖动时钟。Si550支持从10MHz到945MHz的任何频率，并选择频率到1417MHz。与传统的VCXOs不同，每个输出频率都需要一个不同的晶体，而Si550有源晶振使用一个固定的晶体来提供一个大范围的输出频率。这种基于集成电路的方法允许晶体谐振器提供特殊的频率稳定性和可靠性。此外，DSPLL时钟合成提供了优越的电源噪声抑制，简化了在通信系统中常见的噪声环境中产生低抖动时钟的任务。基于Si550ic的VCXO振荡器可在工厂中进行配置，适合各种用户规格，包括频率、电源电压、输出格式、调谐斜率和温度稳定性。特定的配置是在装运时进行工厂编程的，从而消除了与定制振荡器相关的长交货时间。Silicon晶振550CD74M2500DGR光学模块应用VCXO振荡器
| 原厂代码 | 品牌 | 型号 | 频率 | 电压 | 频率稳定度 | 包装/封装 |
| 535FB125M000DG | Silicon晶振 | Si535 | 125MHz | 2.5V | ±20ppm | 6-SMD, No Lead |
| 536BB156M250DG | Silicon晶振 | Si536 | 156.25MHz | 3.3V | ±20ppm | 6-SMD, No Lead |
| 536FB156M250DG | Silicon晶振 | Si536 | 156.25MHz | 2.5V | ±20ppm | 6-SMD, No Lead |
| 536AB156M250DG | Silicon晶振 | Si536 | 156.25MHz | 3.3V | ±20ppm | 6-SMD, No Lead |
| 536EB156M250DG | Silicon晶振 | Si536 | 156.25MHz | 2.5V | ±20ppm | 6-SMD, No Lead |
| 536BB125M000DG | Silicon晶振 | Si536 | 125MHz | 3.3V | ±20ppm | 6-SMD, No Lead |
| 536AB125M000DG | Silicon晶振 | Si536 | 125MHz | 3.3V | ±20ppm | 6-SMD, No Lead |
| 535EB125M000DG | 贴片石英晶振 | Si535 | 125MHz | 2.5V | ±20ppm | 6-SMD, No Lead |
| 536EB125M000DG | Silicon晶振 | Si536 | 125MHz | 2.5V | ±20ppm | 6-SMD, No Lead |
| 535BB125M000DG | Silicon晶振 | Si535 | 125MHz | 3.3V | ±20ppm | 6-SMD, No Lead |
| 535BB156M250DG | Silicon晶振 | Si535 | 156.25MHz | 3.3V | ±20ppm | 6-SMD, No Lead |
| 535FB156M250DG | Silicon晶振 | Si535 | 156.25MHz | 2.5V | ±20ppm | 6-SMD, No Lead |
| 535AB125M000DG | Silicon晶振 | Si535 | 125MHz | 3.3V | ±20ppm | 6-SMD, No Lead |
| 535AB156M250DG | Silicon晶振 | Si535 | 156.25MHz | 3.3V | ±20ppm | 6-SMD, No Lead |
| 536FB125M000DG | Silicon晶振 | Si536 | 125MHz | 2.5V | ±20ppm | 6-SMD, No Lead |
| 535EB156M250DG | Silicon晶振 | Si535 | 156.25MHz | 2.5V | ±20ppm | 6-SMD, No Lead |
| 500DLAA125M000ACF | Silicon晶振 | Si500D | 125MHz | 2.5V | ±150ppm | 6-SMD, No Lead |
| 500DLAA200M000ACF | Silicon晶振 | Si500D | 200MHz | 2.5V | ±150ppm | 6-SMD, No Lead |
| 590AB70M6560DG | Silicon晶振 | Si590 | 70.656MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 590FA200M000DG | Silicon晶振 | Si590 | 200MHz | 2.5V | ±50ppm | 6-SMD, No Lead |
| 590DA156M250DG | Silicon晶振 | Si590 | 156.25MHz | 3.3V | ±50ppm | 6-SMD, No Lead |
| 591BB300M000DG | Silicon晶振 | Si591 | 300MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
| 550CD74M2500DGR | Silicon晶振 | Si550 | 74.25MHz | 3.3V | ±50ppm | 6-SMD, No Lead |
| 514GBB000118AAG | Silicon晶振 | Si514 | 156.25MHz | 2.5V | ±25ppm | 6-SMD, No Lead |
| 550AE100M000DGR | Silicon晶振 | Si550 | 100MHz | 3.3V | ±20ppm | 6-SMD, No Lead |
| 550AE100M000DG | Silicon晶振 | Si550 | 100MHz | 3.3V | ±20ppm | 6-SMD, No Lead |
Si550产品特点：
可与任何频率从10MHz到945MHz，并选择频率到1.4GHz
第三代DSPLL®具有优越的抖动性能（0.5ps）
温度稳定性是基于saw振荡器的振荡器的3倍
卓越的PSRR性能
内部固定的晶体频率确保了高可靠性和低老化
可用的CMOS、LVPECL、LVDS和CML输出差分晶振
3.3、2.5和1.8V的供应选项
工业标准7.0x5.0mm封装和针形管
无铅/符合RoHS标准
应用于：超声波，x数字用户线，10GbE局域网 / WAN，低抖动时钟生成，光学模块，时钟和数据恢复
