XO振荡器511ABA100M000BAGR提供了优越的电源噪声抑制

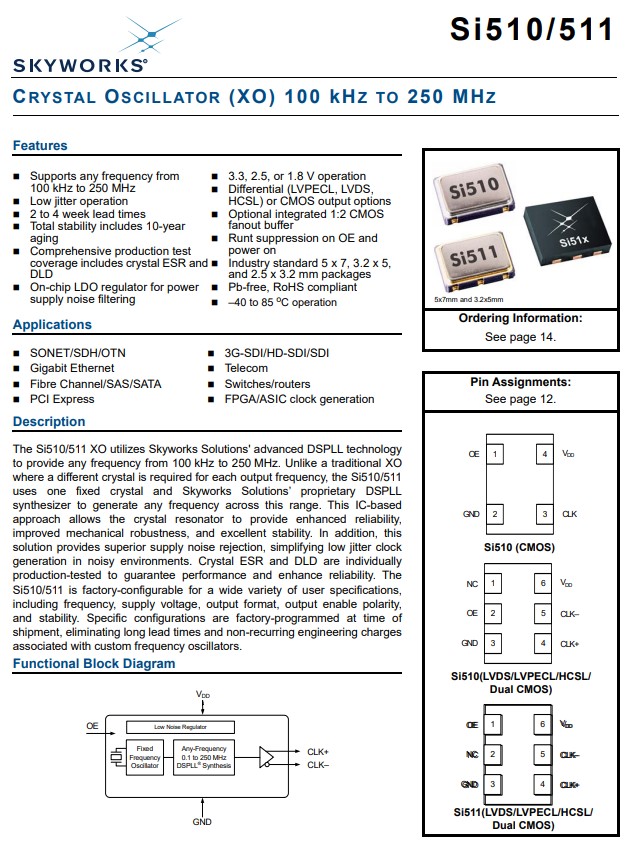

Silicon晶振Si511 XO利用天空解决方案的先进DSPLL技术,六脚贴片晶振提供从100kHz到250MHz的任何频率。与传统的XO不同,每个输出频率需要不同的晶体,Si511使用一个固定晶体和天空解决方案的专有DSPLL合成器来产生这个范围内的任何频率。这种基于集成电路的方法允许晶体谐振器提供增强的可靠性,改进的机械鲁棒性和优异的稳定性。此外,该解决方案提供了优越的电源噪声抑制,简化了在噪声环境下的低抖动时钟产生。水晶ESR和DLD分别进行了生产测试,以保证性能和提高可靠性。石英振荡器Si511可在工厂中进行配置,适合各种用户规格,包括频率、电源电压、输出格式、输出启用极性和稳定性。特定的配置是在装运时由工厂编程的,消除了与定制频率振荡器相关的长交货时间和非重复的工程费用。XO振荡器511ABA100M000BAGR提供了优越的电源噪声抑制
XO振荡器511ABA100M000BAGR提供了优越的电源噪声抑制,Si511支持多种选项,包括频率、稳定性、输出格式和VDD。特定的设备配置在装运时被编程到Si511中。可以使用下面的零件号配置图进行配置。Skyworks解决方案提供了一个基于web浏览器的部件号配置实用程序,以简化这个过程。
原厂代码 | 贴片晶振厂家 | 型号 | 频率 | 电压 | 频率稳定度 | 包装/封装 |
511ABA156M250AAG | Silicon晶振 | Si511 | 156.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA100M000AAG | Silicon晶振 | Si511 | 100MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA25M0000BAG | Silicon晶振 | Si511 | 25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA156M250BAG | Silicon晶振 | Si511 | 156.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA156M250AAGR | Silicon晶振 | Si511 | 156.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA155M520AAG | Silicon晶振 | Si511 | 155.52MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA106M250BAG | Silicon晶振 | Si511 | 106.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA000149BAG | Silicon晶振 | Si511 | 74.175824MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA74M2500AAG | Silicon晶振 | Si511 | 74.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA000149AAG | Silicon晶振 | Si511 | 74.175824MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA000110BAG | Silicon晶振 | Si511 | 148.35165MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA148M500BAG | Silicon晶振 | Si511 | 148.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA155M520BAG | Silicon晶振 | Si511 | 155.52MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA148M500AAG | Silicon晶振 | Si511 | 148.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA200M000BAG | Silicon晶振 | Si511 | 200MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA212M500AAG | Silicon晶振 | Si511 | 212.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA125M000BAG | Silicon晶振 | Si511 | 125MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA100M000BAG | Silicon晶振 | Si511 | 100MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA74M2500BAG | Silicon晶振 | Si511 | 74.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA106M250AAG | Silicon晶振 | Si511 | 106.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA000110AAG | Silicon晶振 | Si511 | 148.35165MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA212M500BAG | Silicon晶振 | Si511 | 212.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA200M000AAG | Silicon晶振 | Si511 | 200MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA100M000BAGR | 有源晶振 | Si511 | 100MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA125M000BAGR | Silicon晶振 | Si511 | 125MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA106M250BAGR | Silicon晶振 | Si511 | 106.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA000149BAGR | Silicon晶振 | Si511 | 74.175824MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA74M2500BAGR | Silicon晶振 | Si511 | 74.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA100M000AAGR | Silicon晶振 | Si511 | 100MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA125M000AAGR | Silicon晶振 | Si511 | 125MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA106M250AAGR | Silicon晶振 | Si511 | 106.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA000149AAGR | Silicon晶振 | Si511 | 74.175824MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA74M2500AAGR | Silicon晶振 | Si511 | 74.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA156M250BAGR | Silicon晶振 | Si511 | 156.25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA155M520BAGR | Silicon晶振 | Si511 | 155.52MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA000110BAGR | Silicon晶振 | Si511 | 148.35165MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA148M500BAGR | Silicon晶振 | Si511 | 148.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA155M520AAGR | Silicon晶振 | Si511 | 155.52MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA000110AAGR | Silicon晶振 | Si511 | 148.35165MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA148M500AAGR | Silicon晶振 | Si511 | 148.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA25M0000BAGR | Silicon晶振 | Si511 | 25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA125M000AAG | Silicon晶振 | Si511 | 125MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA200M000BAGR | Silicon晶振 | Si511 | 200MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA212M500BAGR | Silicon晶振 | Si511 | 212.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA200M000AAGR | Silicon晶振 | Si511 | 200MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA212M500AAGR | Silicon晶振 | Si511 | 212.5MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
511ABA25M0000AAG | Silicon晶振 | Si511 | 25MHz | 3.3V | ±25ppm | 6-SMD, No Lead |
应用于:SONET/SDH/OTN,千兆以太网,光纤通道/SAS/SATA,PCI快递,3 G-SDI/HD-SDI/SDI,电信,交换机/路由器,FPGA/ASIC时钟生成
